Platform Power Test

This article introduces how to measure the platform's power consumption, including supported test scenarios, configuration, and EVB settings, and how to use CMD to measure power consumption. Users can refer to platform power consumption to understand the power generated by certain functions, such as Bluetooth Low Energy/Bluetooth test scenarios. In addition, when users have issues with power consumption, they can also use platform power consumption to check for any hardware or application setting problems, such as static power test scenarios.

Supported Test Scenarios

Platform power refers to the basic power consumption of IC functions. The following scenarios are supported.

  • Static Power Test Scenarios

    • Ship Mode

    • DLPS

    • LPS

    • Active

    • Different CPU Frequencies

    • Different DSP Frequencies

    • Coremark

    • Different Transmit Power

    • Continuous Transmit

    • Packet Receive

  • Bluetooth Low Energy Power Test Scenarios

    • Advertising

    • Scan

    • Connected

  • Bluetooth Power Test Scenarios

    • Page Scan

    • Inquiry Scan

    • Page

    • Connected

    • Sniff Mode

    • Inquiry

How to Measure Platform Power Consumption?

This section introduces how to measure platform power consumption, including the following items:

  • Prepare the test image.

    • On the default SDK image, modify the configuration and replace the configuration bin.

  • Settings for EVB.

    • Set up the test environment.

  • Test procedure and test case.

Settings for Configuration

The configuration in MCUConfig Tool.

Disable Log Output

Disable MCU log.

../../../../_images/disable_mcu_log.png

Disable MCU Log

Disable DSP log.

../../../../_images/disable_dsp_log.png

Disable DSP Log

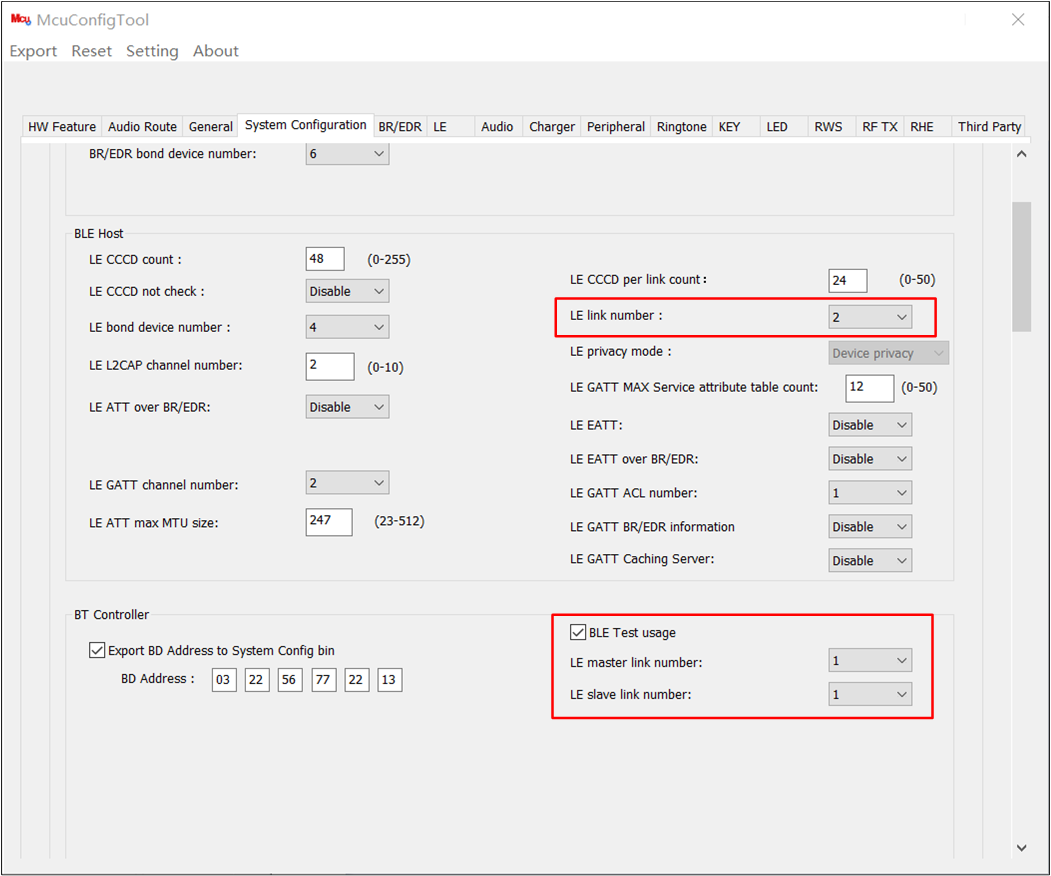

Enable Bluetooth Low Energy Test Usage

Enable BLE Test usage and configure LE link number, LE master link number, and LE slave link number.

../../../../_images/configure_ble_test_usage.png

Configure Bluetooth Low Energy Test Usage

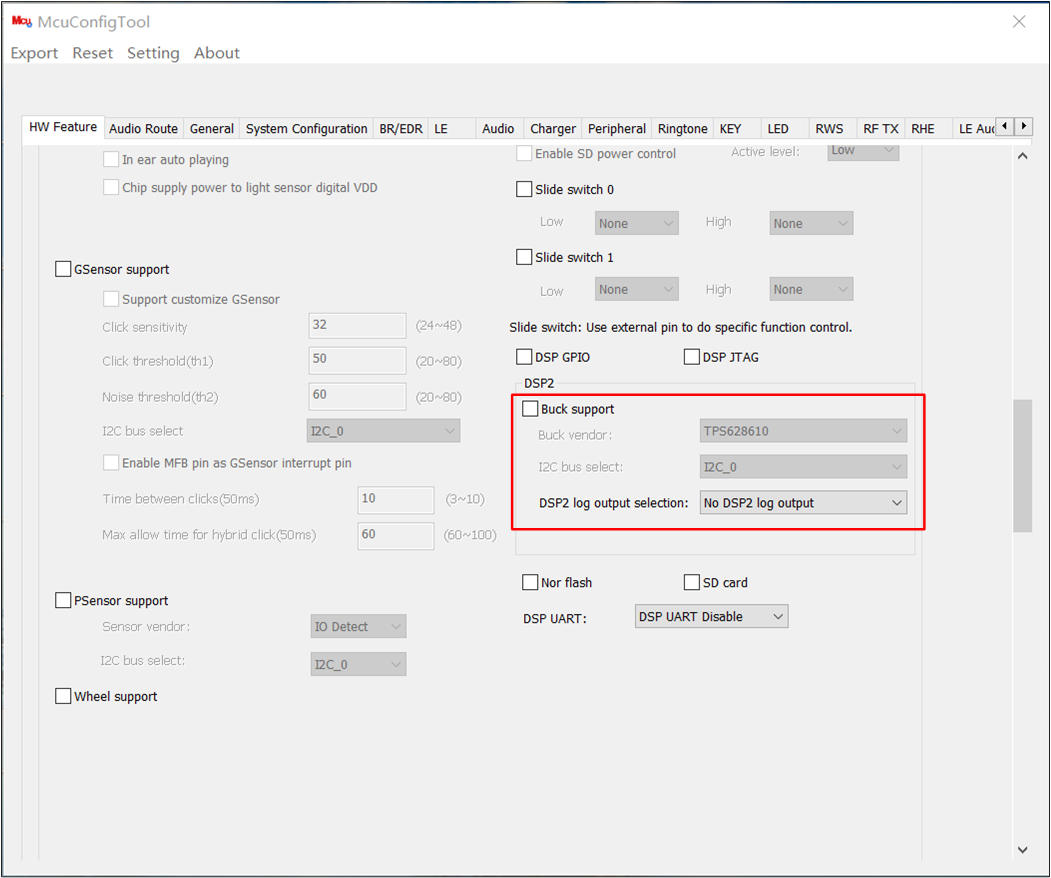

Disable Buck Support for RTL87x3D

When testing RTL87x3D, user needs to turn off the external buck.

../../../../_images/disable_buck.png

Disable Buck

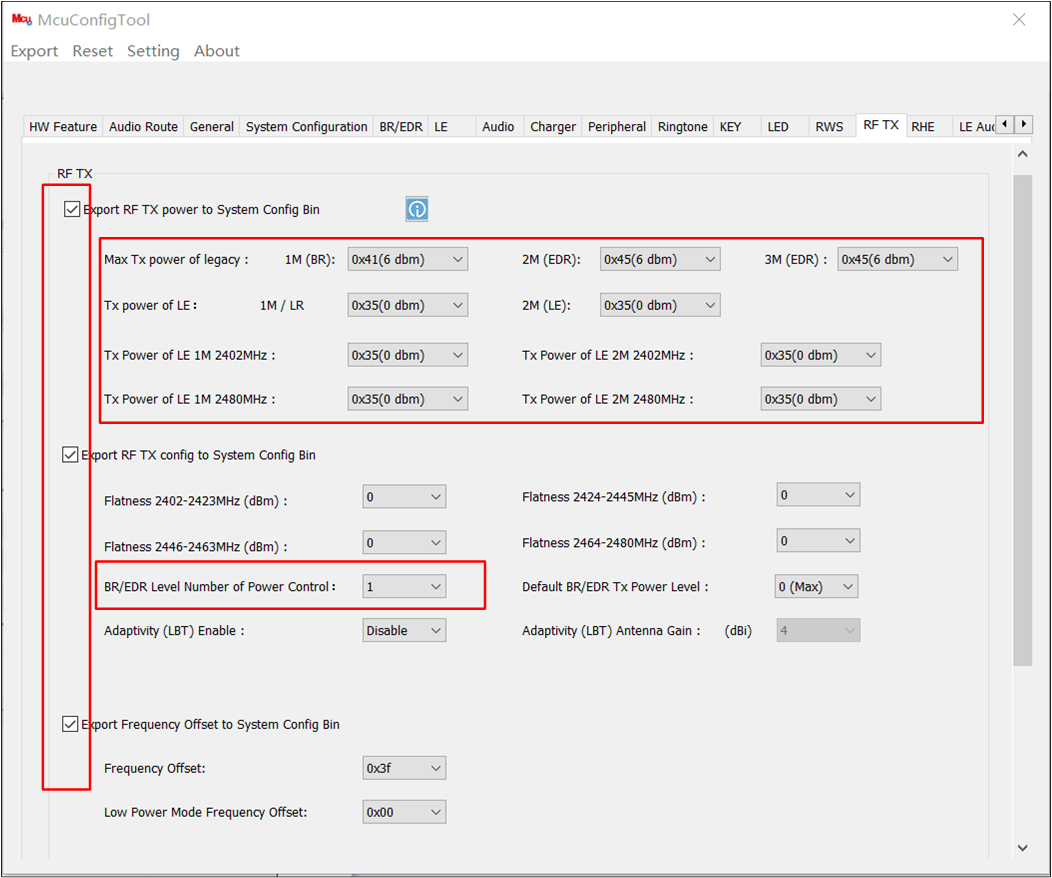

Fixed Transmit Power

To ensure the stability of power consumption data, the tested scenario for RTK fixed the transmit power of BR/EDR at 6dBm and LE at 0dBm.

../../../../_images/Fixed_TX_Power.png

Fixed TX Power

To disable transmit power control and fix the transmit power, please follow the steps shown below.

  • Enable Export RF TX power to System Config Bin.

  • Enable Export Frequency Offset to System Config Bin.

  • Set BR/EDR Level Number of Power Control to 1. LE transmit power setting is also controlled by this setting.

  • Set the transmit power of BR/EDR/LE to the target value.

Settings for EVB

This section will introduce the settings for the jumpers of EVB.

RTL87x3D

The following table lists the jumpers of RTL87x3D.

The Jumpers of RTL87x3D

Name

Condition

DEV_1

Floating

VDEV2

Floating

KEY

Floating

LED

Floating

VIO1

Floating

VIO2

VEXT

VIO3

Floating

VIO4

Floating

VIO5

Floating

VIO_FLASH

VEXT

TXD

M3_0

RXD

M3_1

FT_VIO

Floating

Note

VIO1 needs to be connected to VEXT and FT_VIO needs to be connected to VIO1 when burning the image.

RTL87x3E

The following table lists the jumpers of RTL87x3E.

The Jumpers of RTL87x3E

Name

Condition

V_DEV1

Floating

V_DEV2

Floating

KEY

Floating

LED

Floating

R62

Remove

TX

M3_0

RX

M3_1

FT_VIO

Floating

Note

FT_VIO needs to be connected to VIO1 when burning image.

How to Measure on EVB?

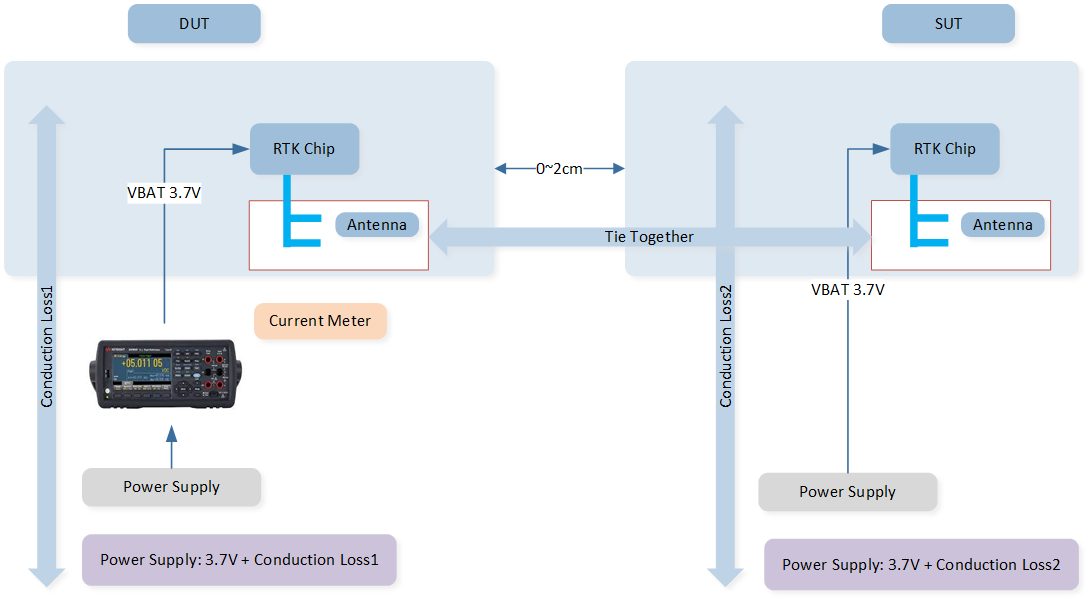

EVB Environment shows the tested situation of RTK.

  • The test environment is without LED, MIC and Speaker.

  • The power supply used by RTK is KA3003P.

  • The current meter used by RTK is DMM6500.

  • The phone used by RTK is Android.

  • The power supply is set to 3.7V.

  • The positive terminal of the power supply is connected to the VBAT.

  • The current meter is configured as follows.

    • The current range is 100mA.

    • The sample rate is 60000 samples/s.

    • The sample time is 30s.

  • Reset the EVB, and the interface shown in Platform Power Serial Interface will appear.

  • Enter the commands.

  • Start measuring.

../../../../_images/evb_environment1.png

EVB Environment

Note

RTKChip: RTL87x3D and RTL87x3E are supported.

CMD

This section introduces the serial port tool and the commands used in the test case.

Serial Port Tool

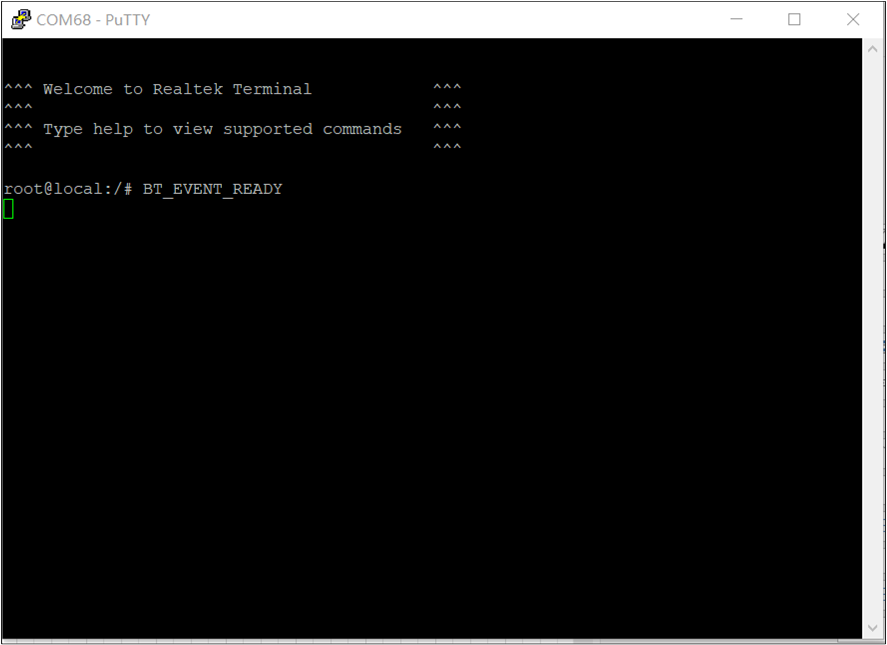

A serial port tool on the PC, such as PUTTY, needs to be opened, and the baud rate set to 115200. When the EVB is reset, the following interface is displayed in the following figure.

../../../../_images/putty.png

Platform Power Serial Interface

Help

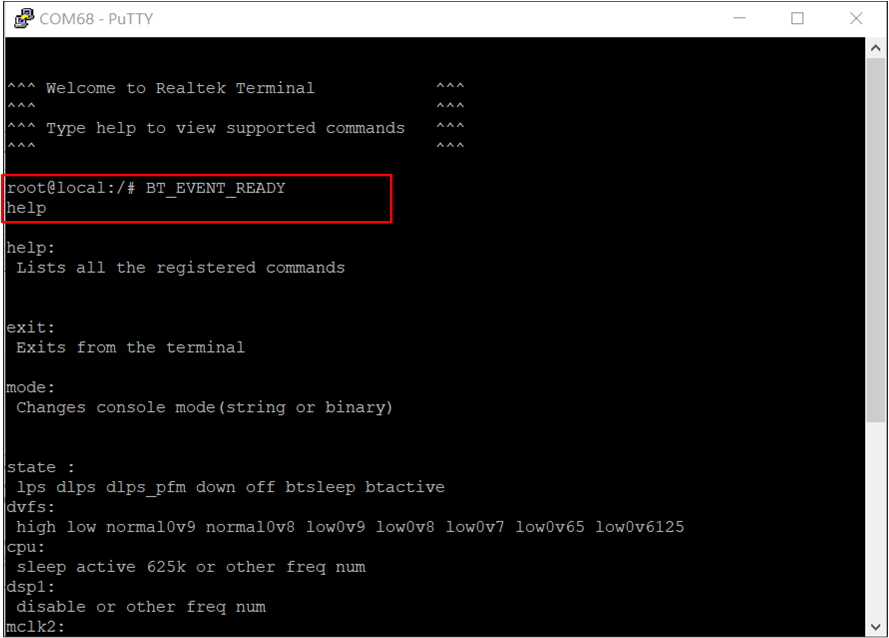

Users can enter the help command to query the commands supported by the current IC.

../../../../_images/help.png

Help CMD

Test Case

This section introduces the test cases and CMD used in each test. Once the user enters the CMD and receives the response, the measurement can start. After a test case is completed, users need to reset the EVB before running another test case.

Static Power Test Case

This section lists the CMD used in the static power test scenarios.

Ship Mode

Test Case

Ship Mode

Command

state off

Response

lps_mode 0
Power Down

Test Case

Power Down

Command

state down

Response

lps_mode 1
DLPS

Test Case

DLPS

Command

state dlps

Response

lps_mode 2
DLPS RET

Test Case

DLPS RET

Command

state dlps_ret

Response

lps_mode 2

Description

Not supported for RTL87x3D.
DLPS PFM

Test Case

DLPS PFM

Command

state dlps_pfm

Response

lps_mode 2
LPS

Test Case

LPS

Command

state lps

Response

lps_mode 4
DVFS High Performance

Test Case

DVFS High Performance

Command

dvfs high

Response

Power test dvfs high
DVFS Low Performance

Test Case

DVFS Low Performance

Command

dvfs low

Response

Power test dvfs low
CPU Active

Test Case

CPU Active

Command

cpu active

Response

Power test cpu freq active

Description

CPU can not enter auto slow.
CPU Sleep

Test Case

CPU Sleep

Command

cpu sleep

Response

Power test cpu freq sleep

Description

CPU can enter auto slow.
CPU 625k

Test Case

CPU 625k

Command

cpu 625k

Response

Power test cpu freq 625k
CPU Frequency

Test Case

CPU Frequency

Command

cpu number

Response

Power test cpu freq number

Description

For example: Set CPU 20M

CMD: cpu 20

Response: Power test cpu freq 20
DSP1 Disable

Test Case

DSP1 Disable

Command

dsp1 disable

Response

Power test dsp1 freq disable

Description

Close dsp1 clock.
DSP1 Frequency

Test Case

DSP1 Frequency

Command

dsp1 number

Response

Power test dsp1 freq number

Description

For example: Set DSP1 20M

CMD: dsp1 20

Response: Power test dsp1 freq 20
Coremark

Test Case

Coremark

Command

coremark enable

Response

Power test coremark enable
Transmit Power

Test Case

Transmit Power

Command

txpower 0 0 0 0 0

Response

Power test tx power txpower 0 0 0 0 0

Parameter 1

0: BR 1M

Parameter 2

0: EDR 2M

Parameter 3

0: EDR 3M

Parameter 4

0: LE 1M

Parameter 5

0: LE 2M

Description

In units of 0.5dbm.
Continuous Transmit

Test Case

Continuous Transmit

Command

cont_tx 12 5

Response

Power test cont_tx cont_tx 12 5

Parameter 1

12: Transmit Power

This parameter only works when transmit power control enabled.

Parameter 2

5: Packet Type

1DH1 = 0

1DH3 = 1

1DH5 = 2

2DH1 = 3

2DH3 = 4

2DH5 = 5

3DH1 = 6

3DH3 = 7

3DH5 = 8

LE1M = 9

LE2M = 11

LR8 = 12

LR2 = 13

1DM1 = 14

1DM3 = 15

1DM5 = 16

AUX1 = 17
Packet Receive

Test Case

Packet Receive

Command

packet_rx 5

Response

Power test packet_rx packet_rx 5

Parameter 1

5: Packet Type

The type is the same as in continuous transmit.

Bluetooth Low Energy Power Test Case

This section lists the CMD used in the Bluetooth Low Energy power test scenarios.

Bluetooth Low Energy Advertising

Test Case

Bluetooth Low Energy Advertising

Command

gap_le_cmd le_adv_power_test_start 0xA0 23

Response

BLE_EXT_ADV_MGR_ADV_ENABLED

Parameter 1

0xA0: Advertising Interval

In units of 0.625ms, range: 0x000020 to 0xFFFFFF.

Parameter 2

23: Advertising Data Length

Range: 0 to 31
Bluetooth Low Energy Scan

Test Case

Bluetooth Low Energy Scan

Command

gap_le_cmd le_scan_power_test_start 0 0xA0 0x04 0

Response

GAP_MSG_LE_EXT_ADV_REPORT_INFO

Parameter 1

0: Scan Mode

0 means passive scan, and 1 means active scan.

Parameter 2

0xA0: Scan Interval

In units of 0.625ms, range: 0x0004 to 0xFFFF.

Parameter 3

0x04: Scan Window

In units of 0.625ms, range: 0x0004 to 0xFFFF.

Parameter 4

0: Duplicate Enable

0 means disable, and 1 means enable.
Bluetooth Low Energy Connect

Test Case

Bluetooth Low Energy Connect

Command

DUT: gap_le_cmd le_conn_power_test_start 0 0x50 0x50

SUT: gap_le_cmd le_create_conn 0x33 0xf4 0x34 0x34 0xf4 0x33

Response

SUT: GAP_MSG_LE_EXT_ADV_REPORT_INFO

DUT: BLE_EXT_ADV_STOP_CAUSE_CONN

CMD 1 Parameter 1

0: Connect Slave Latency

Range: 0x0000 to 0x01F3

CMD 1 Parameter 2

0x50: Connect Interval MIN

In units of 1.25ms, range: 0x0006 to 0x0C80.

CMD 1 Parameter 3

0x50: Connect Interval MAX

In units of 1.25ms, range: 0x0006 to 0x0C80.

CMD 2 Parameter

0x33 0xf4 0x34 0x34 0xf4 0x33: the address of the DUT.

Needs to be set in BD Address of configuration, the order is 0x33 0xf4 0x34 0x34 0xf4 0x33.

Bluetooth Power Test Case

This section lists the CMD used in the Bluetooth power test scenarios.

Page Scan Parameters

Test Case

Page Scan Parameters

Command

gap_legacy_cmd page_scan_param_set 0x00 0x800 0x12 0x4000 0x40 0x17 0x21 0x92 0x3c 0x90

Response

Power test gap legacy 0x40 0x17 0x21 0x92 0x3c 0x90

Parameter 1

0x00: Page Scan Type

0x00 means standard scan, and 0x01 means interlaced scan.

Parameter 2

0x800: Page Scan Interval

N*0.625ms

Parameter 3

0x12: Page Scan Window

N*0.625ms

Parameter 4

0x4000: Page Timeout

N*0.625ms

Description

The last six commands can give a random bluetooth address.
Page Scan

Test Case

Page Scan

Command

gap_legacy_cmd radio_mode_set 0x03 0x40 0x17 0x21 0x92 0x3c 0x90

Response

Power test gap legacy 0x40 0x17 0x21 0x92 0x3c 0x90

Description

The last six commands can give a random bluetooth address.
Inquiry Scan Parameters

Test Case

Inquiry Scan Parameters

Command

gap_legacy_cmd inquiry_scan_param_set 0x00 0x800 0x12 0x40 0x17 0x21 0x92 0x3c 0x90

Response

Power test gap legacy 0x40 0x17 0x21 0x92 0x3c 0x90

Parameter 1

0x00: Inquiry Scan Type

0x00 means standard scan, and 0x01 means interlaced scan.

Parameter 2

0x800: Inquiry Scan Interval

N*0.625ms

Parameter 3

0x12: Inquiry Scan Window

N*0.625ms

Description

The last six commands can give a random bluetooth address.
Inquiry Scan

Test Case

Inquiry Scan

Command

gap_legacy_cmd radio_mode_set 0x02 0x7a 0x9b 0x8d 0xe9 0xdd 0x64

Response

Power test gap legacy 0x7a 0x9b 0x8d 0xe9 0xdd 0x64

Description

The last six commands can give a random bluetooth address.

Note

The result of inquiry scan will be affected by the number of Bluetooth devices in the environment.

Page

Test Case

Page

Command

gap_legacy_cmd page_start 0xff 0xff 0xff 0xff 0xff 0xff

Response

Power test gap legacy 0xff 0xff 0xff 0xff 0xff 0xff

Description

This test case can only last about five seconds.
Inquiry

Test Case

Inquiry

Command

gap_legacy_cmd inquiry_start 0x0A 0x7a 0x9b 0x8d 0xe9 0xdd 0x64

Response

BT_EVENT_INQUIRY_RSP

Description

The last six commands can give a random bluetooth address.

This test case can only last about five seconds.
Bluetooth Connect

Test Case

Bluetooth Connect

Command

DUT: gap_legacy_cmd radio_mode_set 0x03 0xff 0xff 0xff 0xff 0xff 0xff

SUT: gap_legacy_cmd hfp_ag_connect 0x33 0xf4 0x34 0x34 0xf4 0x33

DUT: gap_legacy_cmd radio_mode_set 0x04 0xff 0xff 0xff 0xff 0xff 0xff

Response

DUT: BT_EVENT_HFP_CONN_CMPL

SUT: BT_EVENT_HFP_AG_CONN_CMPL

CMD 2

Parameter

0x33 0xf4 0x34 0x34 0xf4 0x33: the address of DUT.

Needs to be set in BD Address of configuration, the order is 0x33 0xf4 0x34 0x34 0xf4 0x33.
Bluetooth Sniff Mode

Test Case

Bluetooth Sniff Mode

Command

DUT: gap_legacy_cmd radio_mode_set 0x03 0xff 0xff 0xff 0xff 0xff 0xff

SUT: gap_legacy_cmd hfp_ag_connect 0x33 0xf4 0x34 0x34 0xf4 0x33

DUT: gap_legacy_cmd radio_mode_set 0x04 0xff 0xff 0xff 0xff 0xff 0xff

DUT: gap_legacy_cmd link_policy_set 0x05 0x22 0xff 0xad 0xad 0xff 0x22

SUT: gap_legacy_cmd hfp_ag_connect 0x33 0xf4 0x34 0x34 0xf4 0x33

SUT: gap_legacy_cmd sniff_enter 0x320 0x320 0x2 0x4 0x33 0xf4 0x34 0x34 0xf4

Response

DUT: BT_EVENT_HFP_CONN_CMPL

SUT: BT_EVENT_HFP_AG_CONN_CMPL

DUT: BT_EVENT_ACL_CONN_SNIFF

SUT: BT_EVENT_ACL_CONN_SNIFF

CMD 2

Parameter

0x33 0xf4 0x34 0x34 0xf4 0x33: the address of DUT.

Needs to be set in BD Address of configuration, the order is 0x33 0xf4 0x34 0x34 0xf4 0x33.

CMD 4

Parameter

0x22 0xff 0xad 0xad 0xff 0x22: the address of SUT.

Needs to be set in BD Address of configuration, the order is 0x22 0xff 0xad 0xad 0xff 0x22.

CMD 6

Parameter 1

0x320: Sniff Max Interval 500.000msec

N*0.625ms

CMD 6

Parameter 2

0x320: Sniff Min Interval 500.000msec

N*0.625ms

CMD 6

Parameter 3

0x2: Sniff Attempt

CMD 6

Parameter 4

0x4: Sniff Timeout 5.00msec

N*1.25ms
