LVGL

LVGL is an open-source embedded graphics library used for creating beautiful, high-performance, and customizable graphical user interfaces (GUIs). It is designed to be simple and flexible, making it suitable for various embedded platforms, including microcontrollers and microprocessors.

Requirements

The sample supports the following development kits:

Development Kits
Hardware Platforms	Board Name	Build Target
RTL87x3EP HDK	RTL87x3E EVB	`lvgl_demo_bank0`
RTL87x3E HDK	RTL87x3E EVB	`lvgl_demo_16M_bank0`
RTL87x3D HDK	RTL87x3D EVB	`lvgl_demo_cs_16M_bank0`

Note

To purchase EVB, please visit https://www.realmcu.com/en/Home/Shop.

When built for an xxx_16M_xxx build target, the sample is configured to build and run with a 16M flash map.

To quickly set up the development environment, please refer to the detailed instructions provided in Quick Start.

Touchpad and LCD

The default supported touch screen and LCD models in the application are listed in the following table:

Default Touch Screen and LCD Models
Board Name	Touchpad	LCD
RTL87x3E EVB	CHSC6417	SH8601Z
RTL87x3D EVB	CHSC6417	ST7801
RTL87x3EP EVB	CHSC6417	SH8601Z

For convenience in testing the touchpad and LCD, we have developed an adapter board. Simply plug the adapter board into the card slot of the EVB, and it is possible to test and use the touchpad and LCD.

RTL87x3E and RTL87x3EP EVB

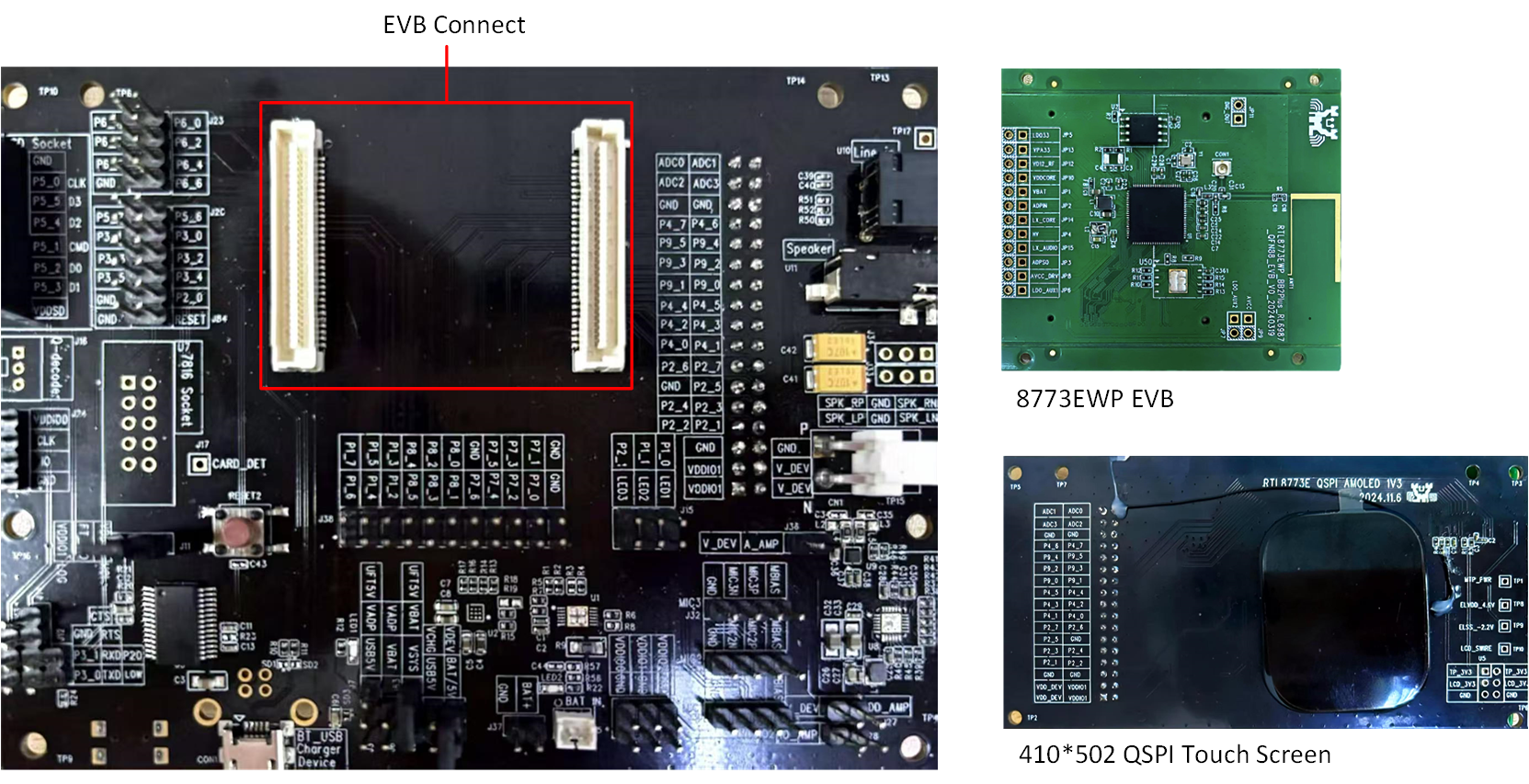

../../_images/87x3ep_lvgl_evb.png — RTL87x3EP EVB Touch Screen and LCD Model for RTL87x3E or RTL87x3EP

The mapping relationship between the touchpad or LCD and EVB pins is shown in the following table:

Touchpad or LCD and EVB Pins Mapping
Touchpad and LCD	EVB
TP_SCL	ADC_0
TP_SDA	ADC_1
TP_INT	ADC_2
TP_RST	ADC_3
SPI_CLK	P9_4
SPI_SIO3	P9_5
SPI_CSN	P9_2
SPI_SIO0	P9_3
SPI_SIO2	P9_0
SPI_SIO1	P9_1
LCD_RST	P4_4
TE	P2_2
VCI_EN	P4_3

RTL87x3D EVB

The touch screen and LCD model are connected to the EVB via an adapter board. Simply plug the adapter board into ‘CON4’ of the EVB.

../../_images/87x3d_gui_evb1.png — RTL87x3D EVB

../../_images/87x3d_evb_aux1.png — Touch Screen and LCD Model for RTL87x3D

The mapping relationship between the touchpad or LCD and EVB pins is shown in the following table:

Touchpad or LCD and EVB Pins Mapping
Touchpad and LCD	EVB
TP_SCL	M4_5
TP_SDA	M4_6
TP_INT	M4_4
TP_RST	M4_2
SPI_CLK	M3_2
SPI_SIO3	M3_7
SPI_CSN	M3_3
SPI_SIO0	M3_4
SPI_SIO2	M3_6
SPI_SIO1	M3_5
LCD_RST	M5_2
TE	M5_4
VCI_EN	M5_5

Tools

SDK provides image conversion tools that facilitate the conversion of images, such as JPG, PNG , BMP , into burnable binary files. The image conversion tool provided by the SDK is located in the sdk\tool\ path. The interface of the image conversion tool is as follows:

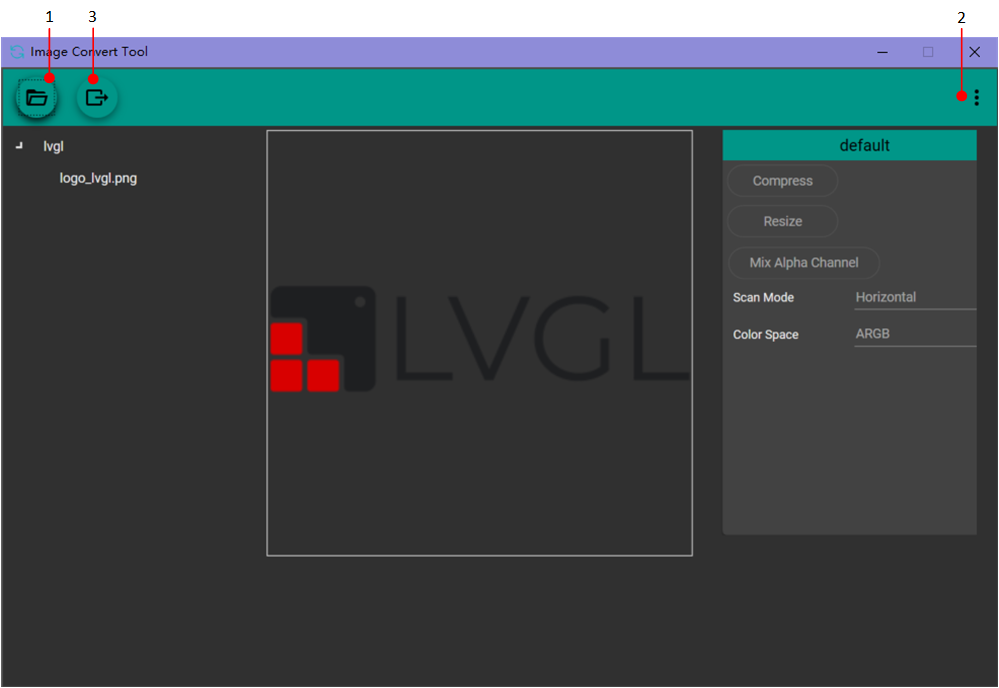

../../_images/image_tool.png — Image Convert Tool

Import the directory to be converted.
Set the conversion format: Choose whether to compress, output image color space format, output image properties (JPG, PNG, BMP), output image save location, and other parameters.
Convert the images.

If users want to learn more about the tool’s usage guidelines, more information can be found in the introduction documentation for the Image Convert Tool in the sdk\doc\EN directory.

Files

The previous chapter introduced the steps for converting image resources. For font resource conversion, it is necessary to consult with FAE to address the requirements. Once both the image and font resources have been generated as binary files, the package tool can be used to convert them into the final userdata binary file.

The GUI package tool provided by the SDK is located in the sdk\tool\Gadgets\gui_package_tool path. Select the folder according to the IC type.

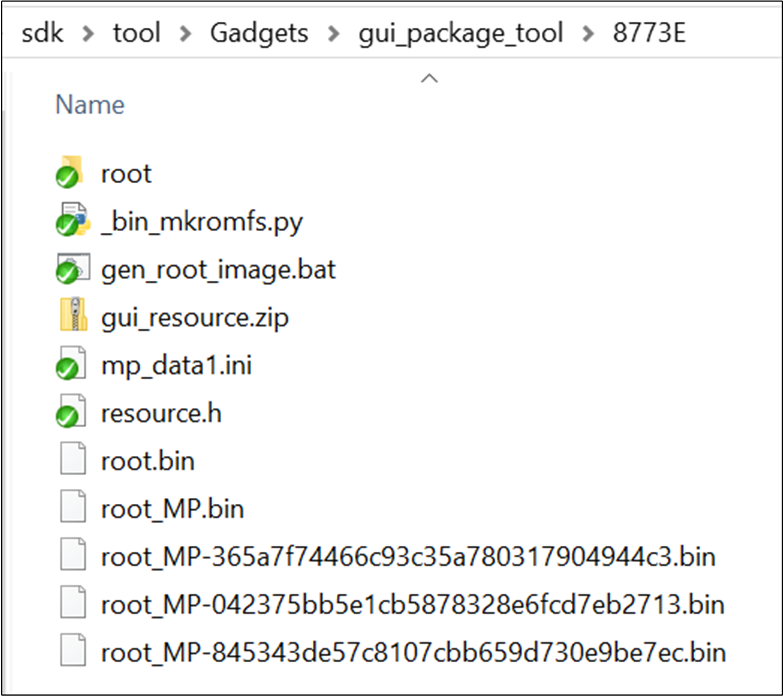

../../_images/lvgl_gui_package_tool.png — GUI Package Tool

Place the binary files of the images and fonts into the root folder.
Execute the gen_root_image.bat.
A userdata binary file will be generated in the current path. Please select the file with the suffix and random number.

While packing the userdata file, a resource.h file will also be generated. This file is used to generate the APP binary file, and the APP code can use the addresses of the images or fonts in this file to index the related resources.

Configurations

The configuration of the LVGL solution in the SDK is located in SDK\board\evb\lvgl\menu_config.h, you can check them in Configuration Wizard of Keil, the default configuration is as follows:

// <e> HoneyGUI Enable LVGL
#define CONFIG_REALTEK_BUILD_LVGL_V8      1
#define CONFIG_REALTEK_BUILD_LVGL_V9      0

#if (CONFIG_REALTEK_BUILD_LVGL_V8 == 1) || (CONFIG_REALTEK_BUILD_LVGL_V9 == 1)

// <c> HoneyGUI Enalbe LVGL APP
#define CONFIG_REALTEK_BUILD_LVGL_DEMO_APP
// </c>

// <c> HoneyGUI Enable LVGL EXAMPLES
#define CONFIG_REALTEK_BUILD_LVGL_EXAMPLES
// </c>

// <c> HoneyGUI Enable LVGL RLOTTIE
// #define CONFIG_REALTEK_BUILD_LVGL_RLOTTIE
// </c>

#endif

Building and Downloading

This application can be found under SDK\board\evb\lvgl\mdk in SDK folder structure.

This sample can be found under board\evb\lvgl_demo in the SDK folder structure. Take the project project.uvprojx and target lvgl_demo as an example, to build and run the sample with Keil development environment, follow the steps listed below:

Reference Quick Start to build and download. It is worth noting that:

Open rtl87x3e_gui_demo.uvprojx.
Building Keil MDK project , Generating APP Image section:
1. The LVGL SDK project path is SDK\board\evb\lvgl.
2. The Keil MDK project path is SDK\board\evb\lvgl\mdk.
3. After modifying the project configuration, you need to rebuild the project configuration for the changes to take effect. After the build, a completely new project file will be generated based on the configuration, replacing the original project file. If the developer manually added files or configurations to the original project, those modifications will become invalid and won’t be retained in the new project.
4. To build the project, open a cmd window in the project path.

  Run the command scons --target=mdk5 to build the mdk project. Open the mdk project for compilation.
```
SDK\board\evb\lvgl> scons --target=mdk5
scons: Reading SConscript files ...
...
CC xxxx.o
CC xxxx.o
...
LINK rtl8773e_lvgl_demo.elf
fromelf --binary rtl8773e_lvgl_demo.elf --output rtthread.binary
fromelf -z rtl8773e_lvgl_demo.elf
scons: done building targets.
```

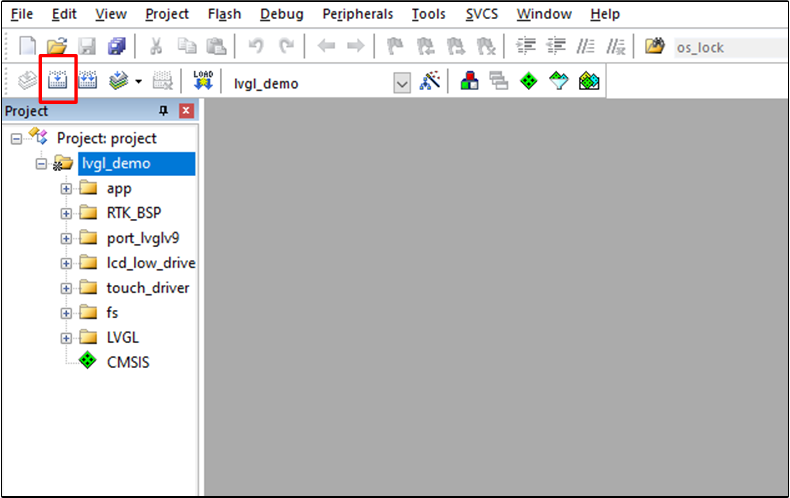

5. Open the generated Keil MDK project and click on Build(F7) to generate the APP image. Refer to Generating APP Image section.

  Building

  After a successful compilation, the APP binary file lvgl_demo_bank0_MP-v0.0.0.0-xxx.binary will be generated in the directory binary\rtl87x3e\flash_16M\bank0.
For downloading and programming methods, please refer to Images Download.
Generating and downloading User Data.

Note

Be sure to place the SDK, tools, and other materials in non-Chinese paths, and ensure that all images in the aforementioned paths are loaded into the tool and burned together.
The SDK also provides a default binary for the LVGL APP binary lvgl_demo_bank0_MP-va.b.c.d-yyyyyyyy in the directory binary\rtl87x3ep\app_demo_bin\mdk\lvgl\16M\BANK0. Users can directly use this default file without modifying any code.

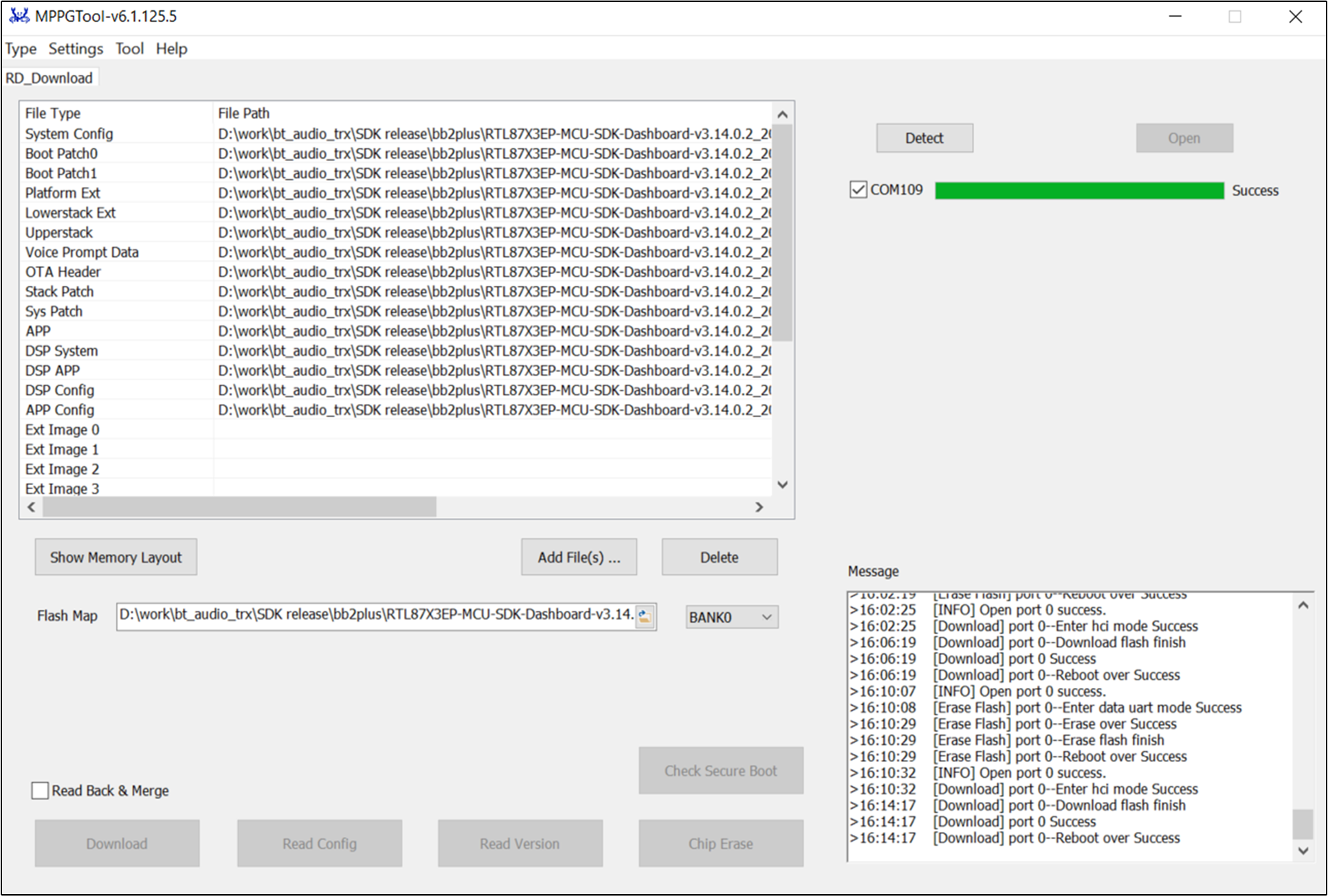

../../_images/lvgl_all_download_image.png — Download All Images

Press the Reset button on the EVB board.

J-Link Download and Debug

J-Link is an emulator/debugger developed by SEGGER. It is a tool specifically for ARM processors that can be used to develop, debug, and test firmware for embedded devices. J-Link has high-speed and reliable simulation performance, supports real-time debugging and fast firmware downloading, and can help developers speed up the process of debugging and verifying embedded systems and improve development efficiency and quality.

J-Link supports multiple connection interfaces, such as JTAG, SWD, etc. Because SWD uses fewer wires, RTL8773EWP uses this interface, SWD corresponding interface. In addition, J-Link is also compatible with multiple development environments and IDEs (such as Keil MDK, IAR Embedded Workbench, etc.). For Keil environment settings, please refer to Quick Start to build and download.

It is recommended to use J-Link Software v6.44 (or later). For more information, please reference Quick Start to build and download.

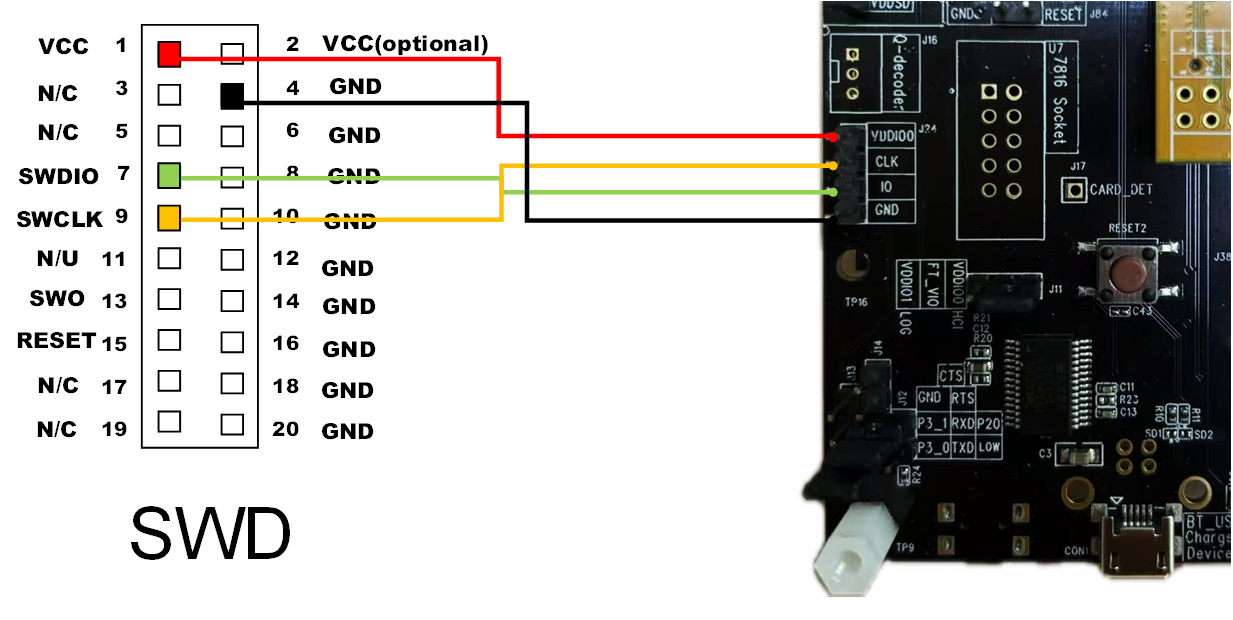

SWD Wiring

J-Link Pinmux Mapping
RTL8773EWP	SWD
GND	GND
P1_0	SWIO
P1_1	SWCK
VDEX	Vterf/3.3V

Experimental Verification

LVGL Testing

After successfully flashing the firmware and UserData, switch the EVB to working mode and perform a reset to restart.
After the device restarts, you will see LVGL benchmark demo is running, it witll display the current test case and progress in the top left corner of the screen, and show the current frame rate and CPU usage in the bottom right corner of the screen.
There will be no log output and no touch screen interaction response until all test cases are completed. After completing all test cases, the test results will be displayed in logs and tables. You can scroll through the touch screen to browse the results.

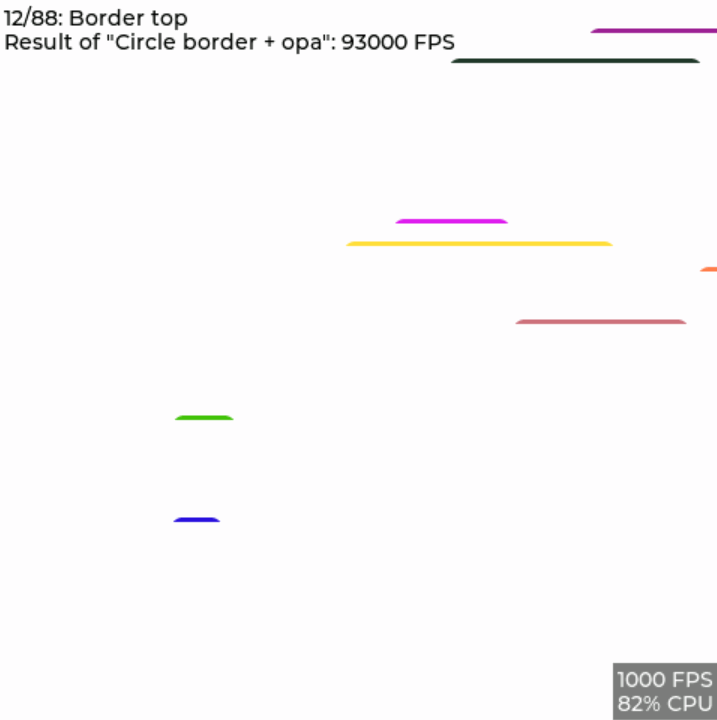

../../_images/fig_benchmark.gif — LVGL UI Demo on PC Simulator

Code Overview

This chapter provides an overview of the software-related technical specifications and behavior specifications for the RTL8773EWP LVGL solution.

Source Code Directory

Project directory: sdk\board\evb\lvgl\mdk .
Source code directory: sdk\board\evb\lvgl\src .

Source files in LVGL application project are currently categorized into several groups as below:

└── Project: lvgl
    └── app                            includes the LVGL user application implementation
        ├── menu_config.h              project construct configurations
        ├── app_lower_init.c           includes task and hardware init
        ├── lvgl_demo.c                includes LVGL demo, benchmark demo
        ├── main.c
        └── simkai_size32_bits1_font.c
    ├── RTK_BSP
    ├── module
    ├── fs                              include file system implementation
    ├──  port_lvglv9
        ├── lv.conf.h                   includes LVGL configurations
        ├── lv_port_disp.c              includes LVGL display interface
        ├── lv_port_indev.c             includes LVGL input device interface
        └── lv_port_fs.c                includes LVGL filesystem interface
    └── lvgl_assets                     includes user image and font C files
        ├── img_demo_lvgl_logo.c        lvgl logo image array
        ├── logo_lvgl_rle.c             lvgl logo image rle array
        ├── lv_font_harmony_32.c        harmony font array
        └── lvgl_example_assets.c       example shows how to set image and font source
    └── LVGL                            includes all LVGL source
    └── CMSIS

Flash Layout

Application default flash layout header file: sdk\binary\rtl87x3ep\flash_map_config\16M\flash_16M\flash_map.h.

Example Layout
Example Layout with a Total Flash Size of 16MB	Size(Byte)	Start Address
EQ_Fitting	4K	0x02000000
Reserve	7K	0x02000400
OEM Config	5K	0x02002000
Bank0 Boot Patch	12K	0x02004000
Bank1 Boot Patch	12K	0x02007000
Platform	20K
Lowerstack	28K
Upperstack	252K
OTA Bank0	1760K	0x02055000
OTA Header	1K	0x02055000
Stack Patch	163K	0x02055400
System Patch	104K	0x0207E000
APP	1136K	0x02098000
DSP System	128K	0x021B4000
DSP APP	200K	0x021D4000
DSP Config	20K	0x02206000
APP Config	8K	0x0220B000
APP Extend Image0	0K	0x00000000
APP Extend Image1	0K	0x00000000
APP Extend Image2	0K	0x00000000
APP Extend Image3	0K	0x00000000
OTA Bank1	1760K	0x0220D000
VP Data	200K	0x023C5000
FTL	84k	0x02FE9000
BKB DATA1	0	0x00000000
BKB DATA2	8k	0x02FFE000
APP Defined Section	60K	0x02400000
User Data1	9860K	0x0240f000

Important

To adjust flash layout, flow the steps listed on the Generating Flash Map in reference Quick Start.
After flash layout adjustment, users must flow the steps listed on the Generating OTA Header and Generating MCU Configuration File with new flash_map.ini.

Software Architecture

The system software architecture is shown below:

../../_images/template_sw_architecture1.png — Software Architecture

Platform: Includes OTA, Flash, FTL and etc.
IO Drivers: Provide application layer access to the interface of peripherals.
OSIF: Abstraction layer for real-time operating systems.
GAP: Abstraction layer which user application communicates with LE stack.

Tasks and Priorities

RTL8773EWP uses RTOS by default, and encapsulates a layer of OS if interface on this basis. RTL8773EWP has built-in Timer task, Idle task, Flash task, Bluetooth controller Stack task, Bluetooth Host Stack task, and the LVGL application has its own APP task, GUI task, Communication Send task, and Communication Receive task.

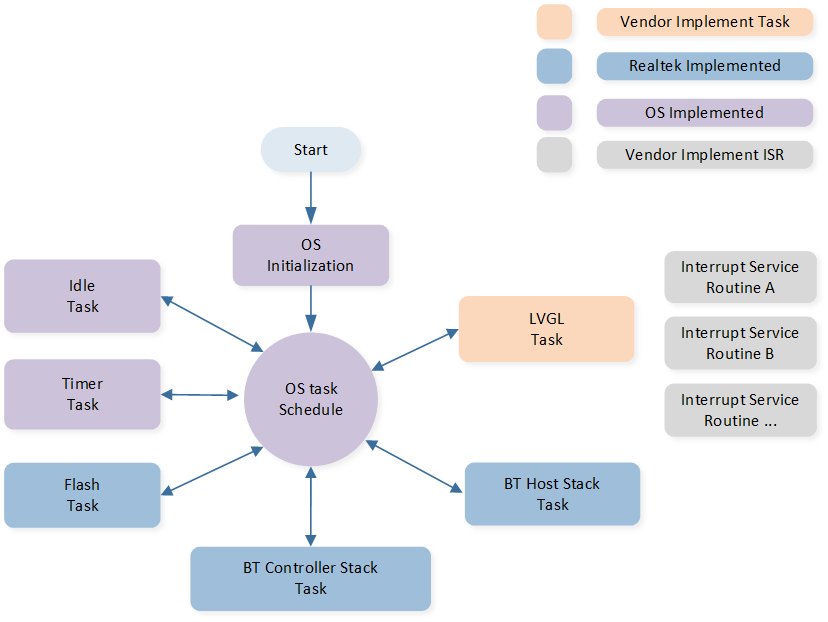

../../_images/lvgl_task_all.png — LVGL Application Task Composition

Task and Priority Table
Task	Description	Priority
Timer	Implement software timers as required by FreeRTOS.	6
Bluetooth Controller Stack	Implement the Bluetooth protocol stack below the HCI layer.	6
Bluetooth Host Stack	Implement the Bluetooth protocol stack above the HCI layer.	3
Flash	Handle asynchronous flash requests.	1
Idle	Run background tasks, including DLPS.	0
LVGL Task	Process image generation and screen data transmission.	1

Note

Multiple application tasks can be created, and memory resources will be allocated accordingly.
Idle tasks and timer tasks are provided by FreeRTOS.
Tasks have been configured to be preemptive based on their priority using the SysTick interrupt.
Interrupt Service Routines (ISR) have been implemented by the vendor.

APP task initialization related code entry:

int main(void)
{
    APP_PRINT_INFO0("LVGL demo");
    APP_PRINT_INFO2("APP COMPILE TIME: [%s - %s]", TRACE_STRING(__DATE__), TRACE_STRING(__TIME__));
    system_lower_init();

#if (TARGET_RTL8773DO == 1)
    app_io_resource_request_init();
#endif
#if (LCD_INTERFACE == LCD_INTERFACE_QSPI)
    lcd_pin_config(LCD_RST);
#endif
#if (TARGET_LCD_DEVICE == LCD_DEVICE_ST7801)
    lcd_vci_en_pin_config(VCI_EN);
#endif
#if (ENABLE_TE_FOR_LCD == 1)
    lcd_te_pin_config(LCD_TE);
#endif

    rtk_lcd_hal_init();

    extern int rt_lvgl_demo_init(void);
    rt_lvgl_demo_init();

    os_sched_start();

    return 0;
}

LVGL Task

UI

The main configuration items for LVGL are configured in sdk\board\evb\lvgl\src\lvgl_port\lv_conf.h, including display device size, color depth, stack interface configuration, and more. Developers can customize these settings according to their needs.

For guidelines on designing and developing the LVGL UI, please refer to Use LVGL Design An Application and the LVGL online documentation LVGL Documentation. The document Use LVGL Design An Application provides detailed instructions on using a PC simulator, methods for real device porting, benchmark performance, UI resource conversion, and basic LVGL development methods. The document LVGL Documentation contains LVGL development documentation, detailing its features and functionalities, along with numerous examples.

Troubleshooting

PPPE2.0 Performance Measurement

As shown below, seven tasks have been created for the user application:

Single input layer 480*480 ARGB8888 matrix 2x2, unit matrix; output layer 480*480 ARGB8888.

PPPE2.0 Performance Measurement Color Format ARGB8888
Path Number	Data Path	Measured Time (ms)
Path 1	SRAM -> PPE -> SRAM	9.20
Path 2	SRAM -> PPE -> SRAM	27.65
Path 3	SRAM -> PPE -> SRAM	9.20
Path 4	PSRAM -> PPE -> SRAM	108.7
Path 5	FLASH -> PPE -> SRAM	184.08
Path 6	SRAM -> PPE -> PSRAM	27.65
Path 7	SRAM -> PPE -> PSRAM	9.20
Path 8	SRAM -> PPE -> SRAM	30.28

Note

Path: XXX->PPE->YYY, where XXX represents the input address of input layer2, and YYY represents the input (old frame)/output (new frame) address of input layer1 and result layer 0.
The SRAM in this table refers to DTCM.

Input layer1: color format RGB565, matrix 1x1, unit matrix, area 480*480, share memory with result layer. Input layer2: color format ARGB8565, matrix 2x2, conversion matrix as described above, mirror matrix, area 480*480. Result layer0: color formatRGB565, area 480*480.

PPPE2.0 Performance Measurement Color Format RGB565
Path Number	Data Path	Measured Time (ms)
Path 1	SRAM -> PPE -> SRAM	12.65
Path 2	SRAM -> PPE -> SRAM	51.74
Path 3	SRAM -> PPE -> SRAM	17.92
Path 4	PSRAM -> PPE -> SRAM	112.80
Path 5	FLASH -> PPE -> SRAM	189.83
Path 6	SRAM -> PPE -> PSRAM	54.58
Path 7	SRAM -> PPE -> PSRAM	32.51
Path 8	SRAM -> PPE -> SRAM	64.58
Path 9	PSRAM -> PPE -> PSRAM	164.52

Note

Path: XXX->PPE->YYY, where XXX represents the input address of input layer2, and YYY represents the input (old frame)/output (new frame) address of input layer1 and result layer 0.
The SRAM in this table refers to DTCM.
