Image Convert Tool

Image Convert Tool is a versatile image conversion utility. It supports converting various common image formats (such as PNG, JPG, BMP, etc.) into raw RGB data in target formats. Additionally, the tool offers data compression functionality, allowing users to compress the converted raw data based on customizable settings. This workflow enables flexible conversion from multiple image formats to compressed RGB data.

Interface Description

The interface of the Image Conversion Tool is shown below:

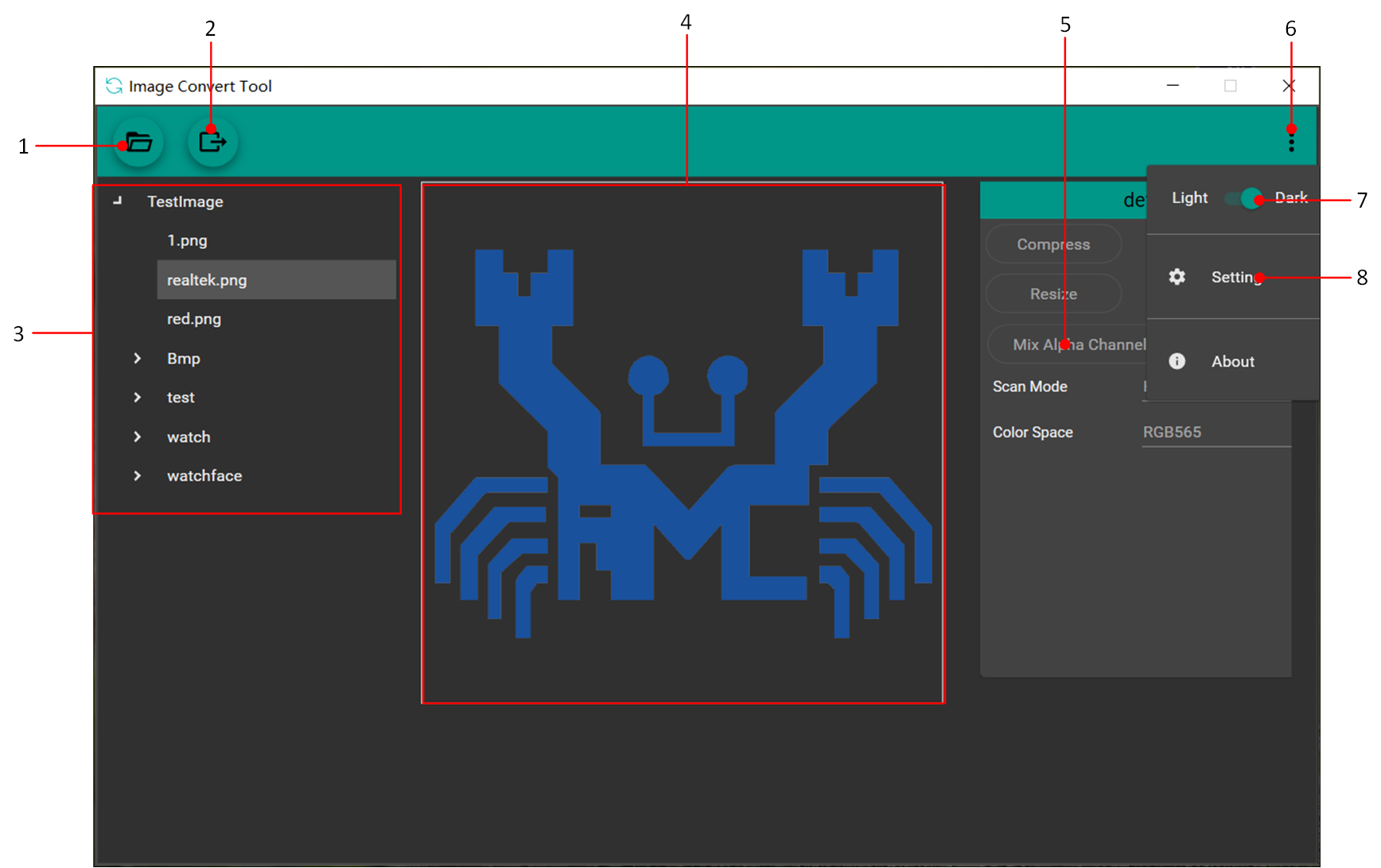

Image Conversion Tool Interface

1. Import images button: Click to import all PNG, JPG, and BMP images within the selected folder and its subfolders.

2. Convert button: After importing files and modifying conversion settings, click to start the image conversion process.

3. Image list panel: Displays all imported folders and images.

4. Selected image preview: Shows the currently selected image.

5. Conversion settings panel: Displays conversion parameters for the selected image.

6. Setting button: Click to expand configuration options, including: UI theme switching, image conversion settings, and tool information display.

7. UI theme switch: Toggle between Light Theme and Dark Theme. Some images may show better detail in Dark Theme.

8. Image conversion settings: Click to access the configuration page for image conversion parameters.

Image Conversion Steps

The image conversion workflow is as follows:

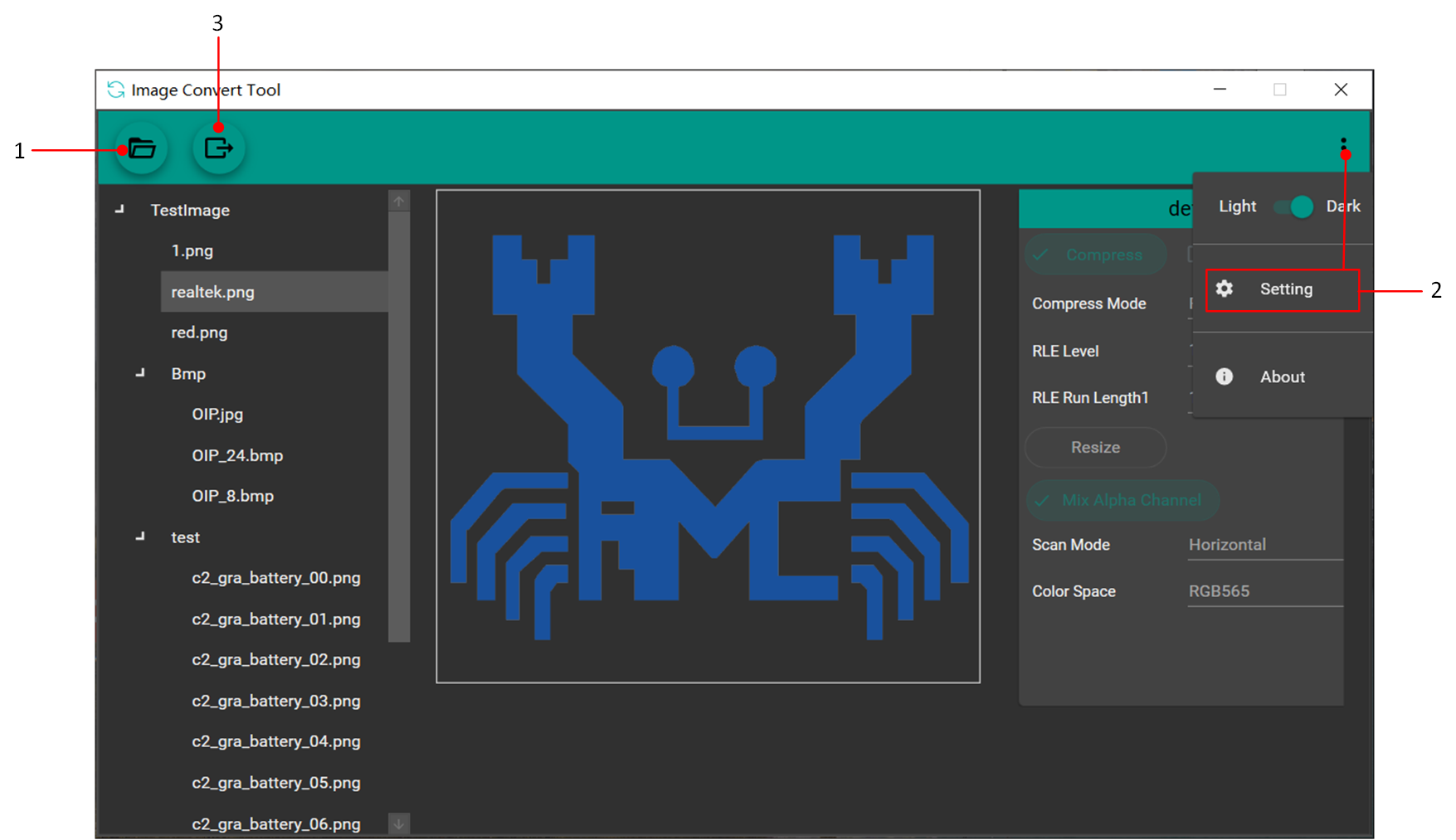

Image Conversion Steps

1. Open image folder to imports all PNG, JPG, and BMP images within the selected folder and its subfolders.

2. Click Setting button to navigate to the image conversion configuration page.

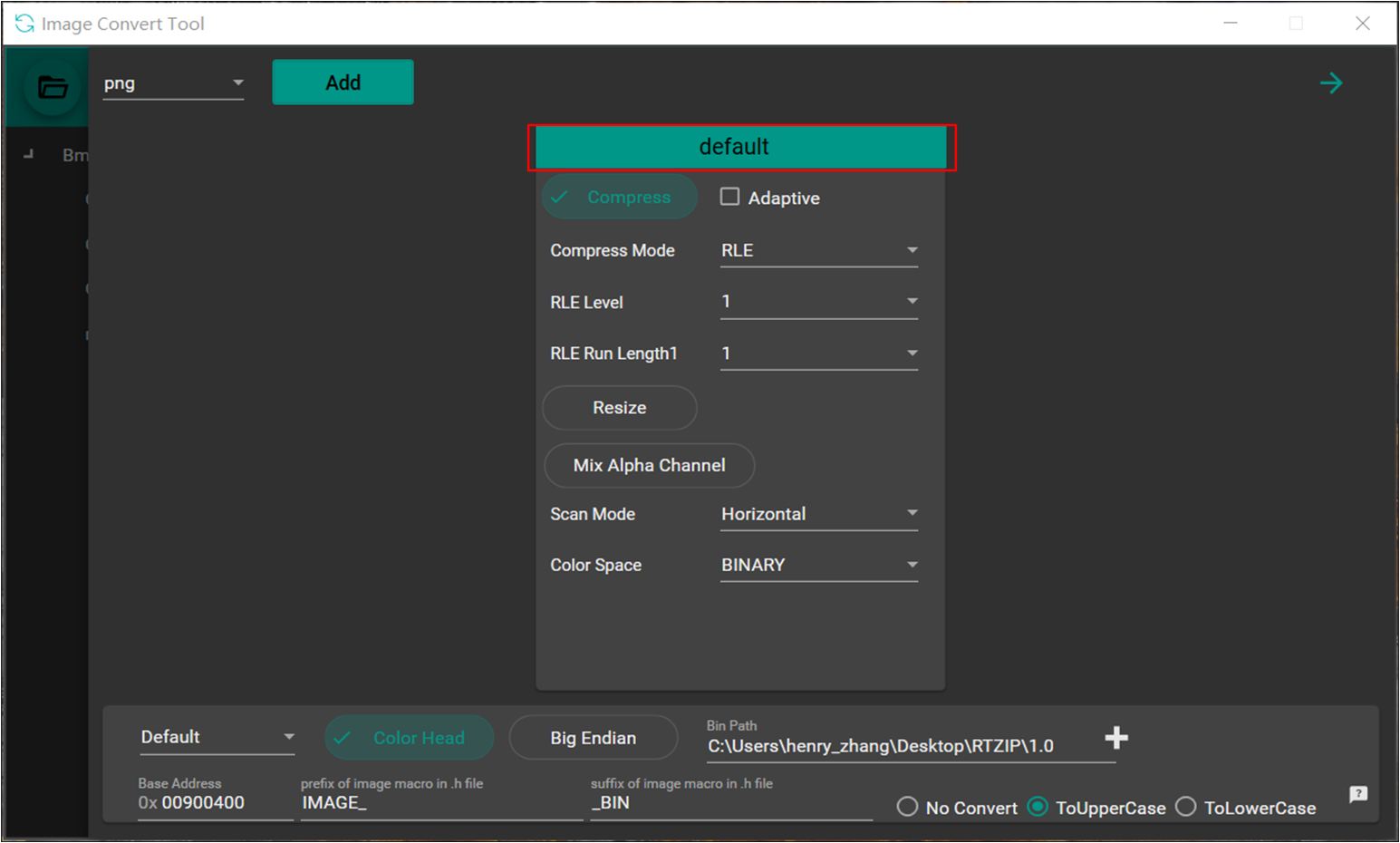

   Default Settings for Image Conversion

   The Image Convert Tool provides a set of default parameters. For images without custom conversion settings, the tool will apply these default parameters, which cannot be deleted.

   Users can configure conversion parameters based on image file extensions. The Image Convert Tool will process images according to the parameters corresponding to their file suffixes.

   Taking PNG images as an example, the steps to add conversion parameters are illustrated below:

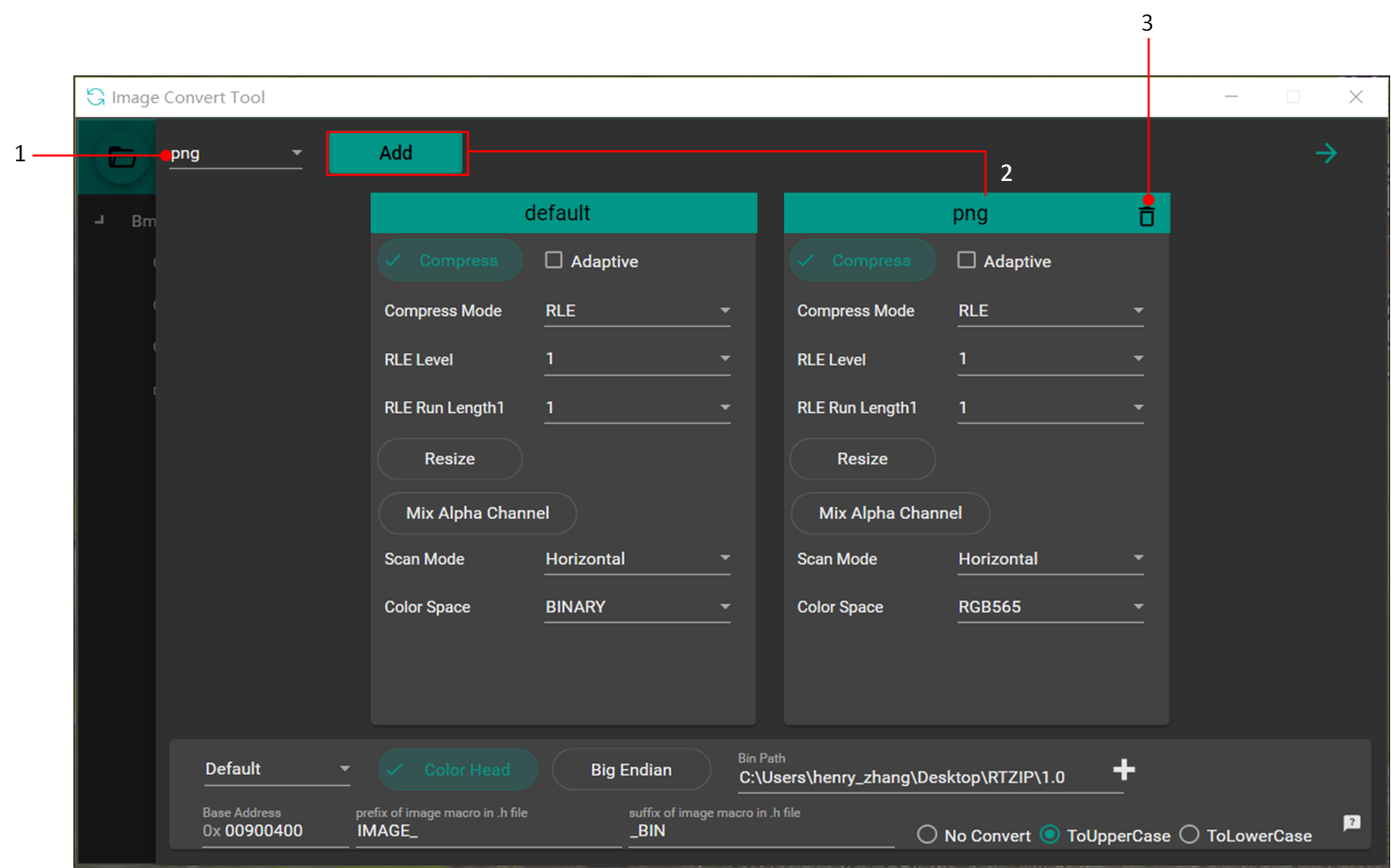

   Adding Conversion Settings

   1. Select target format (bmp, jpg, or png).

   2. Click Add to create conversion parameters for PNG files.

   3. To remove parameters, click Delete.

   The meaning of each parameter is shown below:

   Parameter Name	Description
   Compress	Whether to compress
   Adaptive	When checked, automatically performs RLE or Fastlz compression and retains the result with higher compression ratio. Manual configuration of compression parameters will be disabled if checked.
   Compress Mode	RLE	RLE Level	1: RLE 1st-order compression 2: RLE 2nd-order compression
   		RLE Run Length1	Run Length parameter for 1st-order RLE compression algorithm
   		RLE Run Length2	Run Length parameter for 2nd-order RLE compression algorithm (effective when RLE Level=2)
   	FastLz
   	YUV_Sample_Blur YUV_Sample_Blur+FastLz	Sample Mode	YUV downsampling algorithm. Supported: YUV444, YUV422, YUV411.
   		Blur Mode	Number of bits discarded per byte (starting from LSB). Supported: 0 bit, 1 bit, 2 bit, 4 bit.
   Resize	Whether to downscale images. Supported scaling ratios: 50%, 70%, 80%. SoC will restore resized images, but quality will be reduced if enabled.
   	Lower Width	Images wider than this value will be resized.
   	Lower Height	Images taller than this value will be resized.
   Mix Alpha Channel	Whether to blend the alpha channel when converting RGBA to RGB/RGB565. If checked: R = R * A /255, G = G * A /255, B = B * A /255.If unchecked: Alpha channel values will be discarded.
   Scan Mode	Horizontal	Scan image row by row.
   	Vertical	Scan image column by column.
   Color Space	Target color space for conversion. Supported: RGB565, RTKARGB, RTKRGAB, RGB, RGBA, BINARY, RTKARGB8565.

   Note

   RLE and FastLZ compression algorithms are very effective for images with large amounts of consecutive repeated pixel values. However, they perform poorly on images composed of complex textures or with a lot of noise, and the compressed result may even be larger than the original image.

   The global configuration parameters are shown below:

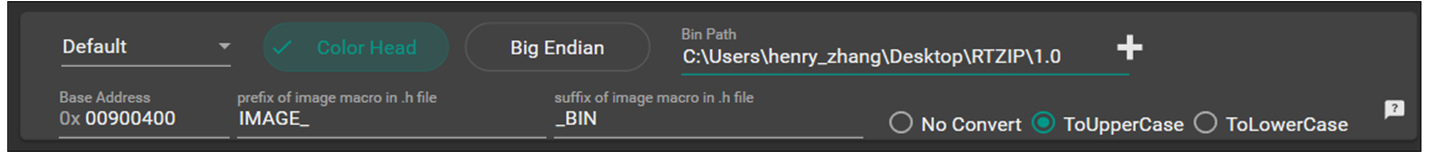

   Global Parameter Settings

   • IC Selection

     • Default: Default

     • Options: RTL8773E or RTL8773G.

   • Color Head: Whether to add header information to converted images (default: checked).Realtek SoCs require this header for image parsing and display.

   • Big Endian: The order in which the exported RGB raw data is arranged in memory

     • Unchecked: Image memory is saved as B -> G -> R -> A (low-byte to high-byte).

     • Checked: Saved as A -> R -> G -> B.

   • Bin Path: Output folder path. If empty, converted files are saved to the import folder.

   • Base Address: Flash address for writing images.

   • Prefix of Image Macro: Custom prefix for image macro definitions.

   • Suffix of Image Macro: Custom suffix for image macro definitions.

   • Whether to convert image names? Click ? to preview the .h file, as shown in the figure below:

     • No Convert: Keep original case

     • ToUpperCase: Convert to uppercase

     • ToLowerCase: Convert to lowercase

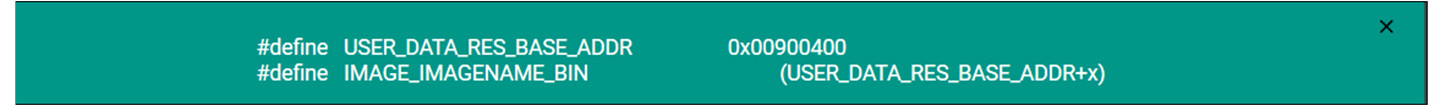

   .h File Preview

3. Convert images, execute the conversion operation according to the conversion parameters, and open the result folder after the conversion is completed.

Output Files

After conversion, the following files will be generated:

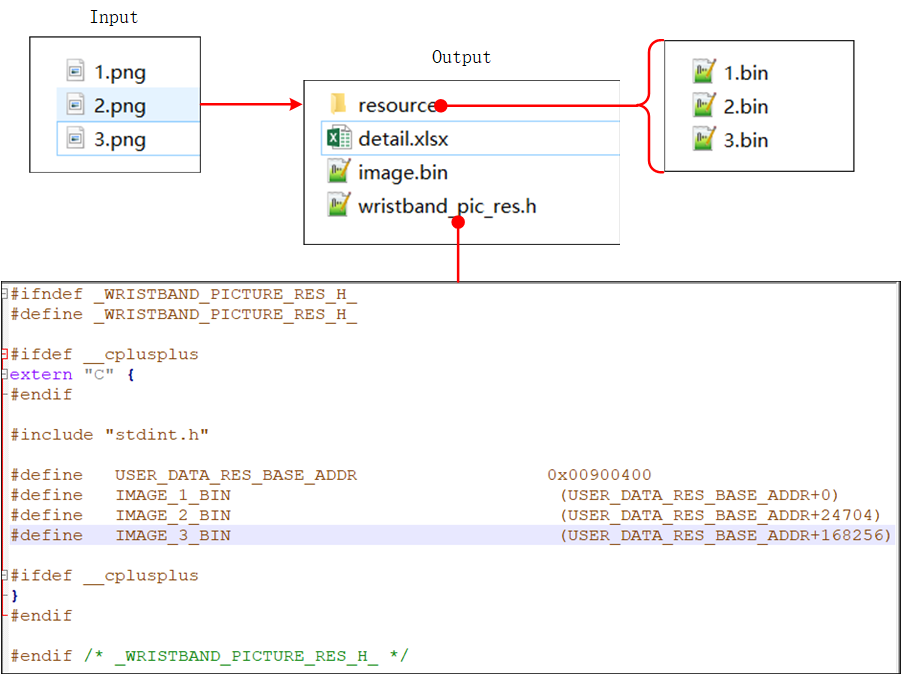

Output Files

• resource folder, stores the converted image bin files

• detail.xlsx, stores conversion information, including: image name, compression algorithm, original image size, converted image size, compression rate, etc.

• image.bin, all converted bin files are spliced in 64 Byte alignment

• wristband_pic_res.h, macro-definition file describing the storage address of all bins in flash

Bin File Structure

The structure of a single bin file is as shown below:

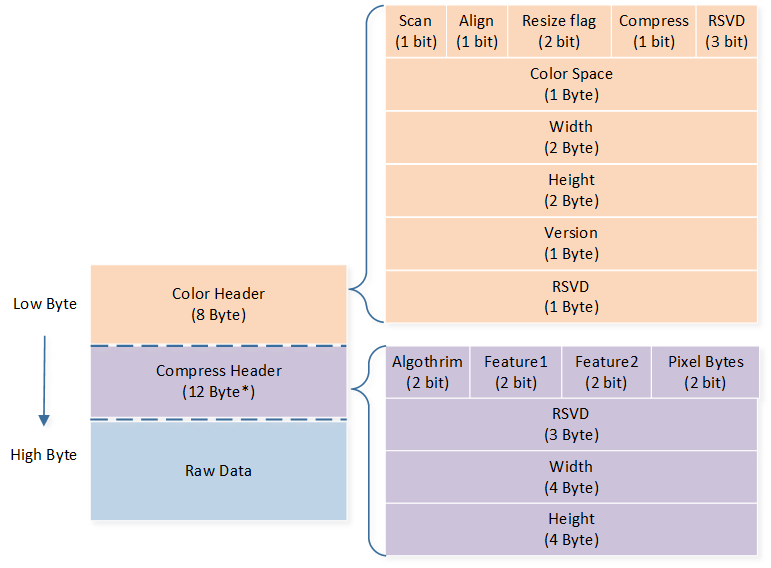

Bin File Structure

Color Header explanation is as follows:

Color Header Explanation

Parameter Name	Parameter Description
Scan	Scanning method, 0: horizontal; 1: vertical.
Align	Whether aligned, 0: not aligned; 1: 16-pixel aligned.
Resize flag	Row and column scaling ratio, 0: no scaling; 1: scaled to 50%; 2: scaled to 70%; 3: scaled to 80%.
Compress	Whether to compress, 0: no compression; 1: compression.
RSVD	Reserved
Color Space	Value corresponding to the color space used in image conversion, see Color Space Explanation.
Width	Original image width
Height	Original image height
Version	Color Header version
RSVD	Reserved

Values corresponding to the Color Space are as follows:

Color Space Explanation

Color Space Name	Value	Description
RGB565	0	16-bit RGB mode, bits 4-0 represent Blue; bits 10-5 represent Green; bits 15-11 represent Red
ARGB8565	1	24-bit ARGB mode, bits 4-0 represent Blue; bits 9-5 represent Green; bits 14-10 represent Red; bits 23-15 represent Alpha
RGB	3	24-bit RGB mode, bits 7-0 represent Blue; bits 15-8 represent Green; bits 23-16 represent Red
ARGB	4	32-bit RGBA mode, bits 7-0 represent Blue; bits 15-8 represent Green; bits 23-16 represent Red; bits 31-24 represent Alpha
BINARY	5	Grayscale image, each pixel represented by 8 bits
RTKARGB8565	15	RTK custom 24-bit ARGB mode, A occupies 1 Byte, RGB565 collectively occupy 2 Bytes, all A stored in order first, followed by all RGB565

Compress Header explanation is shown as follows:

Compress Header Explanation

Parameter Name	Parameter Description
Algorithm	Compression algorithm, 0: RLE; 1: FastLz; 2: YUV_Sample + FastLz; 3: YUV_Sample
Feature1	Run length for 1st level RLE compression algorithm
Feature2	Run length for 2nd level RLE compression algorithm
Pixel Bytes	Byte count per pixel, 0: 2 bytes; 1: 3 bytes; 2: 4 bytes; 3: 1 byte
