SDIO

Sample List

This chapter introduces the details of the SDIO sample. The SDK provides the following samples for the SDIO peripheral.

• SDIO Write Read
• SDIO Filesystem Write Read
• SDIO Card Detection

Functional Overview

SDIO card is an IO device that uses the SD bus and SD commands. SD card is a type of memory card that is used in newly emerging audio and video electronic devices. The shape and interface of the SDIO card are compatible with the SD card, but it not only realizes the storage function, but also realizes other functions, such as Bluetooth, Wireless Fidelity, etc. SD card has a total of 9 pins, including 2 ground pins, 1 power pin, 1 clock pin, 1 command pin, and 4 data pins. The host controls the internal operation of the SD card by reading or writing SD host controller.

Feature List

• Support SD host standard specification V2.0.

• Support 2 SD bus speed mode: default speed mode (frequency up to 25 MHz) and high speed mode (frequency up to 50 MHz).

• Support 2 group pins on EVB to communicate with SD card. For specific pins, please refer to SDIO Group Pins in RTL87x3D, SDIO Group Pins in RTL87x3E and RTL87x3EP and SDIO Group Pins in RTL87x3G.

• Support SD transmission mode of 1-bit mode (single-wire), 4-bit SD mode (four-wire).

• Support optional bus clock, with a maximum of 50MHz for RTL87x3E, RTL87x3EP and RTL87x3G, and a maximum of 40MHz for RTL87x3D.

• Support multiple block and single block transfer.

• High voltage SD card: operation voltage 3.3V.

• Support DMA transfer.

• Support interrupt control.

Note

1. RTL87x3D, RTL87x3E, RTL87x3EP and RTL87x3G support SDIO.

2. RTL87x3G supports 2 SDIO interfaces: SDIO0 and SDIO1. Other ICs only support SDIO0.

3. Please confirm whether SDIO pins are supported for the package before using SDIO.

Block Diagram

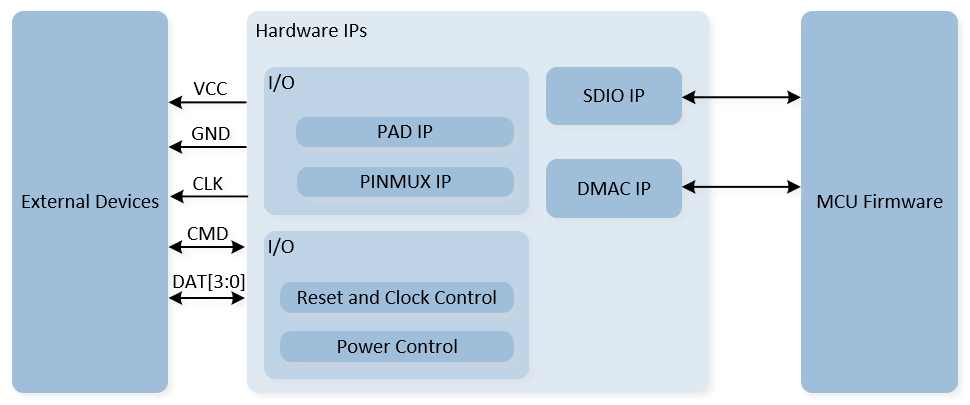

Here is the overall IPs block diagram for SDIO IP, which including ‘PAD/PINMUX’ for IO function configuration, ‘SDIO IP’ for SDIO protocol and ‘DMAC IP’ for DMA access.

System Block Diagram of SDIO

Transfer Protocol

Communication over the SD bus is based on command and data bit streams that are initiated by a start bit and terminated by a stop bit. The control on the SD bus is realized through CMD, the host initiates a request, and then the SD card responds to the request. Data is transferred in the form of data blocks, and data blocks are always succeeded by CRC bits. For a multiple block write operation, the card will hold the DAT0 line low if its write buffer is full. Busy indication will be sent by the card to the host on DAT0 only.

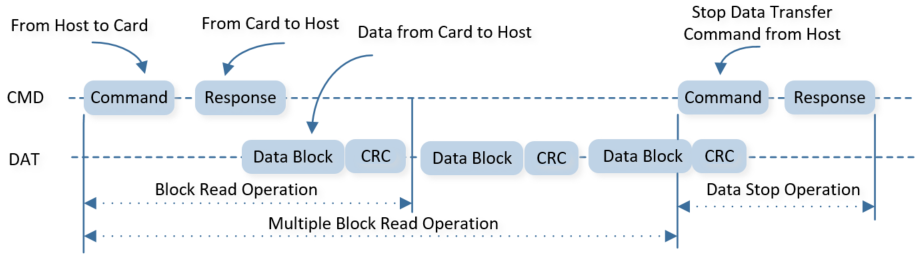

Take the SD Bus multi-block read operation as an example:

1. The host sends a multi-block read command.

2. The SD card sends a response.

3. The card starts sending data.

4. After each block is sent, return a CRC status.

5. The card transmits the next block data.

6. Stop transmission until the host sends a stop command, the card responds.

SD BUS Multiple Block Read Operation

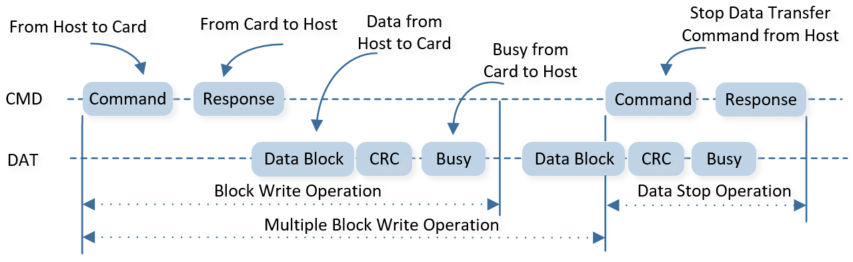

SD BUS Multiple Block Write Operation

Interface Definition

The connection of SD host controller (SDHC) and SD card is shown in SDHC and SD Card Connection Diagram.

1. Clock Line (CLK): host to card clock signal.

2. Command Line (CMD): bi-directional command and response signal.

3. Data Line (DAT0-DAT3): 4 bi-directional data signals.

SDHC and SD Card Connection Diagram

The SDIO group pins of different ICs are shown in the tables below. RTL87x3EP is the same as RTL87x3E.

SDIO Group Pins in RTL87x3D

RTL87x3D	CLK	CMD	DAT0	DAT1	DAT2	DAT3
Group0 Pins	P1_2	P1_3	P1_4	P1_5	P1_6	P1_7
Group1 Pins	P4_2	P4_3	P4_4	P4_5	P4_6	P4_7

SDIO Group Pins in RTL87x3E and RTL87x3EP

RTL87x3E/EP	CLK	CMD	DAT0	DAT1	DAT2	DAT3
Group0 Pins	P5_0	P5_1	P5_2	P5_3	P5_4	P5_5
Group1 Pins	P6_0	P6_1	P6_2	P6_3	P6_4	P6_5

SDIO Group Pins in RTL87x3G

RTL87x3G	CLK	CMD	DAT0	DAT1	DAT2	DAT3
SDIO0 Group0 Pins	P5_0	P5_1	P5_2	P5_3	P5_4	P5_5
SDIO0 Group1 Pins	P2_3	P2_4	P2_5	P2_6	P2_7	P4_0
SDIO1 Group0 Pins	P1_2	P1_3	P1_4	P1_5	P3_2	P3_3
SDIO1 Group1 Pins	SPIC0_SIO2	SPIC0_SIO0	SPIC0_SCK	SPIC0_SIO3	SPIC0_CSN	SPIC0_SIO1

Tested Card List

SD card and EMMC testing is only conducted on samples sent by vendors. Due to the limited number of samples, it is not guaranteed that all SD cards and EMMC behave consistently with the tested samples. The model list in the table below only ensures that these models can be properly identified. The vendors are responsible for the parameters, functionality, stability, and quality of the SD card and EMMC models.

The Tested SD Cards

Vendor	Model Name	Size
Zbit Semi	ZBSD01GBYIG	1Gb
	ZBSD64GAQIG	64Gb
XTX	XTSD02G	2Gb
	XTSD08GWSIGA	8Gb
MK	MKDV01GCL	1Gb
	MKDV16GCL	16Gb
	MKDV32GCL	32Gb
LianXin	MESD01GLG	1Gb
	MESD02GLG	2Gb
Heyangtek	HYSD128M	1Gb
	HYSD512M	4Gb
CSNP	CSNP4GCR01-BOW	4Gb

The Tested EMMC Cards

Vendor	Model Name	Size
Kingston	EMMC04G	4GB
MXIC	MX52LM02B11	2GB
	MX52LM04A11	4GB
	MX52LM08A11	8GB
ESMT	FC51L04SFSA	4GB
	FC51L08SFY3A	8GB
	FC51J16SJTS1A	16GB
	FC51J32SJTS1A	32GB

Power Manager

The SDIO peripheral is located in the core domain and will be powered off in low power mode. SDIO peripheral store/restore will be automatically performed based on whether the SDIO clock is active. Users can call the API io_dlps_register() to initialize SDIO peripheral store/restore and do not need to worry about SDIO peripheral requiring specific handling.

Troubleshooting

How to Debug SD Initialization Failure Issue?

If the SD card has a CMD8 response error during the card identification stage, it is usually caused by external environmental factors.

1. Check whether the power supply voltage of the pin group is 3.3V: verify the power supply of the corresponding IO domain and LDO.

2. Check whether the SDIO pins of the package used are supported.

3. Check whether the card connection is stable.

4. Check whether the card responds after the host sends CMD.

See Also

Please refer to the relevant API Reference:

• SD
