SLEEP LED Breathe Mode

This sample code guide is designed to help users easily and comprehensively understand SLEEP LED sample. In this sample, SLEEP LED is configured in breathe mode.

Requirements

For hardware requirements, please refer to the Requirements.

Wiring

On EVB, connect P0_1 to LED1 and connect P2_1 to LED2 and connect P2_2 to LED3.

The hardware connection of SLEEP LED sample code is shown in the figure below.

../../../_images/SLEEP_LED_Sample_Code_Hardware_Connection_Diagram.png

SLEEP LED Sample Code Hardware Connection Diagram

Configurations

  1. The following macros can be configured to modify pin definitions.

    • #define LED_OUT_0       ADC_1

    • #define LED_OUT_1       P2_1

    • #define LED_OUT_2       P2_2

  2. The entry function is as follows, call this function in main() to run this sample code. For more details, please refer to the Initialization.

    sleep_led_breathe_demo();


Building and Downloading

For building and downloading, please refer to the Building and Downloading.

Experimental Verification

Press the Reset button on the EVB board, LEDs turn from dark to bright and then from bright to dark in breathe mode.

Code Overview

This section introduces the code and process description for initialization and corresponding function implementation in the sample.

Source Code Directory

  • For project directory, please refer to Source Code Directory.

  • Source code directory: sdk\src\sample\io_demo\led\sleep_led_demo.c.

Initialization

The initialization flow for peripherals can refer to Initialization Flow.

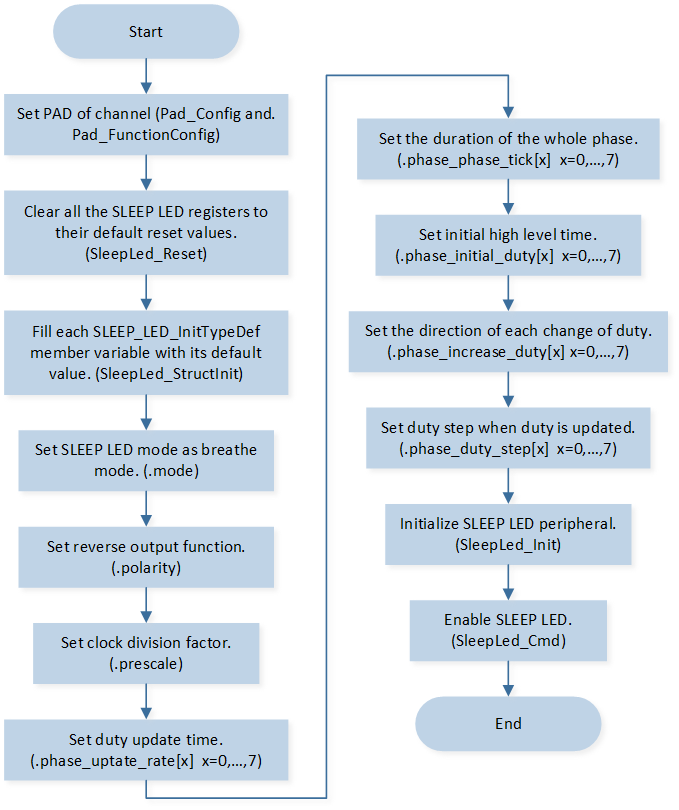

The initialization flow of SLEEP LED breathe mode is shown in the following figure.

../../../_images/SLEEP_LED_Breathe_Mode_Flow_Chart.png

SLEEP LED Breathe Mode Initialization Flow Chart

  1. Call Pad_Config() and Pad_FunctionConfig() to initialize the pin.

    static void board_led_init(void)
    {
       Pad_Config(LED_OUT_0, PAD_SW_MODE, PAD_IS_PWRON, PAD_PULL_NONE, PAD_OUT_ENABLE, PAD_OUT_HIGH);
       Pad_Config(LED_OUT_1, PAD_SW_MODE, PAD_IS_PWRON, PAD_PULL_NONE, PAD_OUT_ENABLE, PAD_OUT_HIGH);
       Pad_Config(LED_OUT_2, PAD_SW_MODE, PAD_IS_PWRON, PAD_PULL_NONE, PAD_OUT_ENABLE, PAD_OUT_HIGH);

       Pad_FunctionConfig(LED_OUT_0, LED0);
       Pad_FunctionConfig(LED_OUT_1, LED1);
       Pad_FunctionConfig(LED_OUT_2, LED2);
    }

  2. Call SleepLed_Reset() to clear all SLEEP LED registers to their default reset values.

  3. Initialize the SLEEP LED peripheral:

    1. Define the SLEEP_LED_InitTypeDef type Led_Initsturcture, and call SleepLed_StructInit() to pre-fill Led_Initsturcture with default values.

    2. Modify the Led_Initsturcture parameters as needed. The SLEEP LED initialization parameter configuration is shown in the table below.

    3. Call SleepLed_Init() to initialize the SLEEP LED peripheral.

    SLEEP LED Initialization Parameters

    SLEEP LED Hardware Parameters

    Setting in the Led_Initsturcture Variables

    SLEEP LED

    Clock Division Factor

    SLEEP_LED_InitTypeDef::prescale

    320

    Mode

    SLEEP_LED_InitTypeDef::mode

    LED_BREATHE_MODE

    Polarity

    SLEEP_LED_InitTypeDef::polarity

    LED_OUTPUT_NORMAL

    Duty Update Time

    SLEEP_LED_InitTypeDef::phase_uptate_rate

    Phase0: 0 (10ms)

    Phase1: 0 (10ms)

    Phase2: 0 (10ms)

    Phase3: 0 (10ms)

    Phase4: 0 (10ms)

    Phase5: 0 (10ms)

    Phase6: 0 (10ms)

    Phase7: 0 (10ms)

    The Duration of The Whole Phase

    SLEEP_LED_InitTypeDef::phase_phase_tick

    Phase0: 50 (500ms)

    Phase1: 50 (500ms)

    Phase2: 50 (500ms)

    Phase3: 50 (500ms)

    Phase4: 50 (500ms)

    Phase5: 50 (500ms)

    Phase6: 50 (500ms)

    Phase7: 50 (500ms)

    Initial High Level Time

    SLEEP_LED_InitTypeDef::phase_initial_duty

    Phase0: 0 (0)

    Phase1: 100 (3.125ms)

    Phase2: 200 (6.25ms)

    Phase3: 300 (9.375ms)

    Phase4: 300 (9.375ms)

    Phase5: 200 (6.25ms)

    Phase6: 100 (3.125ms)

    Phase7: 0 (0)

    Duty Step Time

    SLEEP_LED_InitTypeDef::phase_duty_step

    Phase0: 1 (0.03125ms)

    Phase1: 2 (0.0625ms)

    Phase2: 3 (0.09375ms)

    Phase3: 4 (0.125ms)

    Phase4: 1 (0.03125ms)

    Phase5: 2 (0.0625ms)

    Phase6: 3 (0.09375ms)

    Phase7: 0 (0)

    The Direction of Each Change of Duty

    SLEEP_LED_InitTypeDef::phase_increase_duty

    Phase0: 1 (increase)

    Phase1: 1 (increase)

    Phase2: 1 (increase)

    Phase3: 1 (increase)

    Phase4: 0 (decrease)

    Phase5: 0 (decrease)

    Phase6: 0 (decrease)

    Phase7: 0 (decrease)

  4. Call SleepLed_Cmd() to enable SLEEP LED.
