Application Controller Interface

This chapter introduces the functional specifications for the Application Controller interface (ACI), which provides a uniform command method for the Host to access Device capabilities and control connections with other Devices. The commands (Host -> Device) and events (Device -> Host) are sent between the Host and the Device.

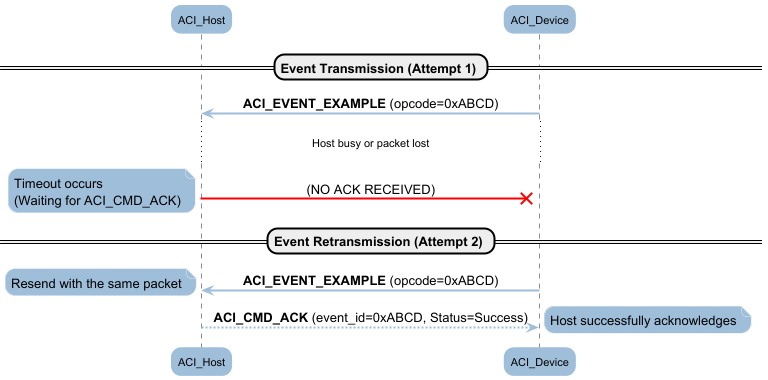

Retransmission

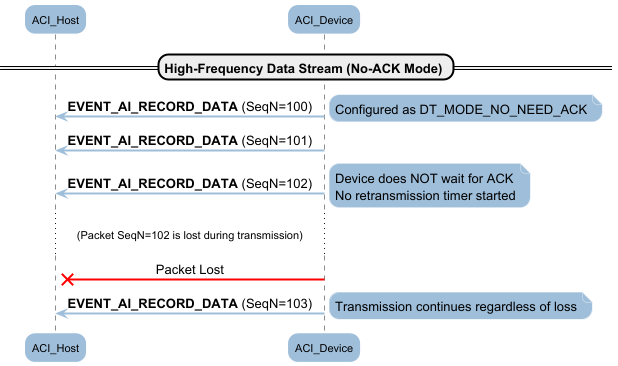

To enhance the reliability of packet transmission and reception, a retransmission mechanism has been implemented on the Device side. When the Device sends an event (Excluding ACI_EVENT_ACK) to the Host, the Host shall respond with an ACI_CMD_ACK failure to do so will trigger retransmission, with the number of retries determined by the DT_RESEND_NUM parameter. This feature is enabled by default in sdk\src\mcu\module\data_transfer\data_transfer.c.

#define DT_RESEND_NUM           20

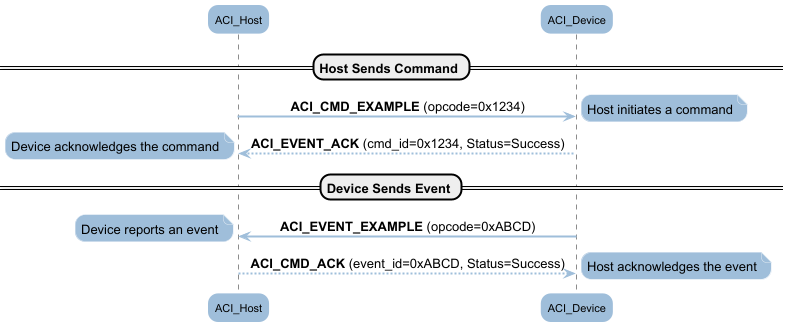

Similarly, when the Host sends a command (Excluding ACI_CMD_ACK) to the Device, the Device responds with an ACI_EVENT_ACK. If the ACI_EVENT_ACK is not received, the decision to trigger retransmission and the number of retransmissions are determined by the Host.

ACI Data Formats

The ACI Command packet is used to send commands to the Device from the Host. The ACI Event packet is used to send events to the Host from the Device. The format of the ACI Command and Event packet is shown below, and the definition of each field is explained below:

ACI Command and Event Packet Format

SyncWord: (Size: 1 octet)

Value	Parameter Description
0xAA	Sync word.

SeqN: (Size: 1 octet)

Value	Parameter Description
0xXX	Sequence number (Range: 1~255).

Length: (Size: 2 octets)

Value	Parameter Description
0xXX	The total length of the opcode field and the Parameter field in octets (Range: 1~255).

Opcode: (Size: 2 octets)

Value	Parameter Description
0xXX	Opcode of ACI Command and Events.

Parameter 0 - N: (Size: Parameter_Total_Length)

Value	Parameter Description
0xXX	Each command or event has a specific number of parameters associated with it. These parameters and the size of each of the parameters are defined for each command or event. Each parameter is an integer number of octets in size.

CheckSum: (Size: 1)

Value	Parameter Description
0xXX	The CheckSum is obtained by calculating through app_util_calc_checksum, and the data between SeqN and Parameter N shall be involved in the operation.

Note

In this packet model, it is recommended that the length of the Parameter does not exceed 1024 bytes.

uint8_t app_util_calc_checksum(uint8_t *dataPtr, uint16_t len)
{
    uint8_t check_sum;

    check_sum = 0;
    while (len)
    {
        check_sum += *dataPtr;
        dataPtr++;
        len--;
    }
    return (0xff - check_sum + 1); //((~check_sum)+1);
}

Example: ACI_CMD_MMI

ACI Command data packet:

AA 04 04 00 04 00 00 54 A0
AA 04 04 00 04 00 00 54 A0
AA 04 04 00 04 00 00 54 A0

ACI Commands and Events

ACI Commands

Summary of ACI Commands

Summary of ACI Commands

Opcode	Command	Available
0x0000	ACI_CMD_ACK	Y
0x0002	ACI_CMD_BT_CREATE_CONNECTION	Y
0x0003	ACI_CMD_BT_DISCONNECT	Y
0x0004	ACI_CMD_MMI	Y
0x0005	ACI_CMD_LEGACY_DATA_TRANSFER	Y
0x0006	ACI_CMD_ASSIGN_BUFFER_SIZE	Y
0x0009	ACI_CMD_BT_GET_REMOTE_NAME	Y
0x0012	ACI_CMD_SET_CFG	Y
0x0017	ACI_CMD_GET_CFG_SETTING	Y
0x0018	ACI_CMD_GET_STATUS	Y
0x001B	ACI_CMD_BT_HFP_DIAL_WITH_NUMBER	Y
0x001C	ACI_CMD_GET_BD_ADDR	Y
0x001E	ACI_CMD_STRING_MODE	Y
0x001F	ACI_CMD_SET_VP_VOLUME	Y
0x0020	ACI_CMD_SET_AND_READ_DLPS	Y
0x0022	ACI_CMD_INQUIRY	Y
0x0030	ACI_CMD_XM_SET_MODE	Y
0x0040	ACI_CMD_BT_HFP_SCO_MAG	Y
0x0102	ACI_CMD_LE_DATA_TRANSFER	Y
0x0103	ACI_CMD_LE_START_SCAN	Y
0x0104	ACI_CMD_LE_STOP_SCAN	Y
0x0109	ACI_CMD_LE_START_PAIR	Y
0x010E	ACI_CMD_LE_CREATE_CONN	Y
0x0111	ACI_CMD_ANCS_GET_NOTIFICATION_ATTR	Y
0x0112	ACI_CMD_ANCS_GET_APP_ATTR	Y
0x0113	ACI_CMD_ANCS_PERFORM_NOTIFICATION_ACTION	Y
0x0115	ACI_CMD_AMS_WRITE_REMOTE_CMD	Y
0x0116	ACI_CMD_AMS_WRITE_ENTITY_UPD_CMD	Y
0x0161	ACI_CMD_LE_MODIFY_WHITELIST	Y
0x0162	ACI_CMD_LE_MODIFY_WHITELIST_BY_IDX	Y
0x0163	ACI_CMD_LE_MODIFY_RESOLVELIST_BY_IDX	Y
0x0164	ACI_CMD_LE_SET_RESOLUTION	Y
0x020A	ACI_CMD_SET_VOLUME	Y
0x0308	ACI_CMD_GET_FW_VERSION	Y
0x0309	ACI_CMD_BT_BOND_INFO_CLEAR	Y
0x030F	ACI_CMD_GET_PACKAGE_ID	Y
0x0310	ACI_CMD_SWITCH_TO_HCI_DOWNLOAD_MODE	Y
0x0400	ACI_CMD_SEND_DTMF	Y
0x0403	ACI_CMD_SEND_VGM	Y
0x0404	ACI_CMD_SEND_VGS	Y
0x0480	ACI_CMD_HFP_AG_CONNECT_SCO	Y
0x0481	ACI_CMD_HFP_AG_DISCONNECT_SCO	Y
0x0482	ACI_CMD_HFP_AG_CALL_INCOMING	Y
0x0483	ACI_CMD_HFP_AG_CALL_ANSWER	Y
0x0484	ACI_CMD_HFP_AG_CALL_TERMINATE	Y
0x0488	ACI_CMD_HFP_AG_MIC_GAIN_LEVEL_SET	Y
0x0489	ACI_CMD_HFP_AG_SPEAKER_GAIN_LEVEL_SET	Y
0x0420	ACI_CMD_PBAP_DOWNLOAD	Y
0x0423	ACI_CMD_PBAP_CONNECT	Y
0x0426	ACI_CMD_PBAP_DISCONNECT	Y
0x0A0E	ACI_CMD_TRI_DONGLE_CMD	Y
0x2300	ACI_CMD_FINDMY_FEATURE	Y
0x2400	ACI_CMD_GFPS_FINDER_FEATURE	Y
0x3200	ACI_CMD_SPI_INIT	Y
0x3201	ACI_CMD_SPI_SLAVE_TRIGGER	Y
0x3220	ACI_CMD_A2DP_XMIT_ROUTE_OUT_CTRL	Y
0x3223	ACI_CMD_A2DP_XMIT_SET_ROUTE_OUT	Y
0x3020	ACI_CMD_LEA_BSRC_INIT	Y
0x3021	ACI_CMD_LEA_BSRC_START	Y
0x3022	ACI_CMD_LEA_BSRC_STOP	Y
0x3023	ACI_CMD_LEA_SCAN	Y
0x3024	ACI_CMD_LEA_CIS_START_MEDIA	Y
0x3025	ACI_CMD_LEA_CIS_STOP_STREAM	Y
0x3026	ACI_CMD_LEA_CIS_ULL_MODE	Y
0x3027	ACI_CMD_LEA_CSIS_MEMBER_SCAN	Y
0x3028	ACI_CMD_LEA_CSIS_GROUP_SCAN_STOP	Y
0x3029	ACI_CMD_LEA_BST_START	Y
0x302A	ACI_CMD_LEA_BST_STOP	Y
0x302B	ACI_CMD_LEA_BST_REMOVE	Y
0x302C	ACI_CMD_LEA_GVCS_VOLUME	Y
0x302D	ACI_CMD_LEA_GVCS_MUTE	Y
0x302E	ACI_CMD_LEA_GMIC_MUTE	Y
0x302F	ACI_CMD_LEA_BAAS_SCAN	Y
0x3030	ACI_CMD_LEA_PA_SYNC_DEV	Y
0x3031	ACI_CMD_LEA_CIS_START_CONVERSATION	Y
0x3032	ACI_CMD_LEA_CCP_ACTION	Y
0x3033	ACI_CMD_LEA_MCP_STATE	Y
0x3034	ACI_CMD_LEA_MCP_NOTIFY	Y
0x3250	ACI_CMD_LEA_ADV_START	Y
0x3251	ACI_CMD_LEA_ADV_STOP	Y
0x3252	ACI_CMD_LEA_CCP_CALL_CP	Y
0x3253	ACI_CMD_LEA_MCP_MEDIA_CP	Y
0x3254	ACI_CMD_LEA_SYNC_INIT	Y
0x3255	ACI_CMD_LEA_SYNC	Y
0x3256	ACI_CMD_LEA_VCS_SET	Y
0x3270	ACI_CMD_UART_DFU	Y
0x3300	ACI_CMD_SRC_PLAY_SET_SRC_ROUTE	Y
0x3301	ACI_CMD_SRC_PLAY_GET_SRC_ROUTE	Y
0x3302	ACI_CMD_SRC_PLAY_SET_PLAY_ROUTE	Y
0x3303	ACI_CMD_SRC_PLAY_GET_PLAY_ROUTE	Y
0x3304	ACI_CMD_SRC_PLAY_ROUTE_IN_START	Y
0x3305	ACI_CMD_SRC_PLAY_ROUTE_IN_STOP	Y
0x3306	ACI_CMD_SRC_PLAY_ROUTE_OUT_START	Y
0x3307	ACI_CMD_SRC_PLAY_ROUTE_OUT_STOP	Y
0x3312	ACI_CMD_SRC_PLAY_ATTACH_FEATURE	Y
0x3313	ACI_CMD_SRC_PLAY_DETACH_FEATURE	Y
0x3801	ACI_CMD_MAP_CONNECT	Y
0x3802	ACI_CMD_MAP_GET_FOLDER_LISTING	Y
0x3803	ACI_CMD_MAP_DISCONNECT	Y
0x3805	ACI_CMD_MAP_GET_MESSAGE_LISTING	Y
0x3809	ACI_CMD_MAP_REG_MSG_NOTIFICATION	Y
0x380A	ACI_CMD_MAP_GET_MESSAGE	Y
0x3810	ACI_CMD_MAP_PUSH_MESSAGE	Y
0x5008	ACI_CMD_SET_FRAME_INFO	N
0x5009	ACI_CMD_SET_FRAME_CONTENT	N
0x8000	ACI_CMD_XM_ENTER_HCI_MODE	Y
0x8001	ACI_CMD_XM_DEVICE_REBOOT	Y
0x8004	ACI_CMD_XM_MMI	Y
0x8005	ACI_CMD_XM_BT_SET_ADDR	Y
0x8006	ACI_CMD_XM_SPP_DATA_TRANSFER	Y
0x8007	ACI_CMD_XM_GATT_ACI	Y
0x8009	ACI_CMD_XM_SNIFF_MODE_CTRL	Y
0x80C3	ACI_CMD_XM_GET_FACTORY_RESET	Y
0x8013	ACI_CMD_XM_USER_CFM_REQ	Y
0x8040	ACI_CMD_XM_LE_START_ADVERTISING	Y
0x8041	ACI_CMD_XM_LE_STOP_ADVERTISING	Y
0x8042	ACI_CMD_XM_LE_DISC	Y
0x8043	ACI_CMD_XM_LE_CONN_PARAM_UPDATE	Y
0x8044	ACI_CMD_XM_LE_ADV_DATA_UPDATE	Y
0x8045	ACI_CMD_XM_LE_SCAN_RSP_DATA_UPDATE	Y
0x8046	ACI_CMD_XM_LE_ADV_INTVAL_UPDATE	Y
0x8047	ACI_CMD_XM_LE_ATT_GET_MTU	Y
0x8048	ACI_CMD_XM_LE_GET_ADDR	Y
0x8049	ACI_CMD_XM_LE_USER_CFM_REQ	Y
0x804A	ACI_CMD_XM_LE_BOND_DEL	Y
0x804B	ACI_CMD_XM_LE_ADV_CREATE	Y
0x804C	ACI_CMD_XM_LE_BOND_DEL_ALL	Y
0x8080	ACI_CMD_XM_MUSIC	Y
0x8081	ACI_CMD_XM_TTS	Y
0x8082	ACI_CMD_XM_START_RECORD	Y
0x8083	ACI_CMD_XM_STOP_RECORD	Y
0x8084	ACI_CMD_XM_START_RECORD_PLAY	Y
0x8085	ACI_CMD_XM_STOP_RECORD_PLAY	Y
0x8086	ACI_CMD_XM_RECORD_PLAY_DATA	Y
0x8088	ACI_CMD_XM_SET_VOLUME_LEVEL	Y
0x8089	ACI_CMD_XM_AUDIO_TEST_GET_PA_ID	Y
0x808A	ACI_CMD_XM_AUDIO_TEST_BYPASS	Y
0x80C0	ACI_CMD_XM_DISABLE_VERBOSE_LOG	Y
0x8100	ACI_CMD_CHARGING_CASE_LE_CONTROL	Y

ACI_CMD_ACK

Command	Opcode	Command Parameters	Return Event
ACI_CMD_ACK	0x0000	event_id, status	None

Description

This command is used for the Host to acknowledge the received event.

Command Parameters

event_id: (Size: 2 octets)

Value	Parameter Description
0xXX	The acknowledged event_id.

status: (Size: 1 octet)

Value	Parameter Description
0x00	Command complete: MCU can handle this command.
0x01	Command disallow: MCU cannot handle this command.
0x02	Unknown CMD.
0x03	Parameters error.
0x04	Busy.
0x05	Process fail.
0x06	One wire extend.
0x08	Music req.

ACI_CMD_BT_CREATE_CONNECTION

Command	Opcode	Command Parameters	Return Event
ACI_CMD_BT_CREATE_CONNECTION	0x0002	profile, bd_addr	ACI_EVENT_PROFILE_CONN_STATUS

Description

This command is used to trigger the linkback behavior for specific profiles.

Command Parameters

profile: (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	Bit mask (only used for Bluetooth Audio Transceiver function). 0x00000001: A2DP_SINK. 0x00000002: AVRCP_CONTROLLER. 0x00000004: HFP_HF. 0x00000080: HSP_AG. 0x00000200: MAP_MSE. 0x00000400: A2DP_SRC. 0x00000800: AVRCP_TARGET. 0x00001000: HFP_AG. 0x00002000: PBAP_PSE. 0x00004000: HSP_HF.

bd_addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	MAC address (Little-Endian) of the dedicated device.

ACI_CMD_BT_DISCONNECT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_BT_DISCONNECT	0x0003	profile, bd_addr	ACI_EVENT_PROFILE_CONNECT_FAIL_STATUS

Description

This command is used to cancel the ongoing linkback procedure or disconnect the linked profiles. BTM will disconnect the ACL link if all of the profiles are disconnected.

Command Parameters

profile: (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	Bit mask (only used for Bluetooth Audio Transceiver function). 0x00000001: A2DP_SINK. 0x00000002: AVRCP_CONTROLLER. 0x00000004: HFP_HF. 0x00000080: HSP_AG. 0x00000200: MAP_MSE. 0x00000400: A2DP_SRC. 0x00000800: AVRCP_TARGET. 0x00001000: HFP_AG. 0x00002000: PBAP_PSE. 0x00004000: HSP_HF. 0xffffffff: All profile.

bd_addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXX	MAC address (Little-Endian) of the target device.

ACI_CMD_MMI

Command	Opcode	Command Parameters	Return Event
ACI_CMD_MMI	0x0004	reserved, action	None

Description

MMI action, the user can add the corresponding MMI action according to specific needs based on sdk\src\sample\bt_audio_trx\app\app_mmi.h.

Command Parameters

reserved: (Size: 1 octet)

Value	Parameter Description
0xXX	Reserved.

action: (Size: 1 octet)

Value	Parameter Description	Return Event
0x02	MMI_FORCE_END_OUTGOING_CALL	ACI_EVENT_HFP_CALL_STATUS
0x03	MMI_ANSWER_CALL	ACI_EVENT_HFP_CALL_STATUS
0x04	MMI_REJECT_CALL	ACI_EVENT_HFP_CALL_STATUS
0x05	MMI_END_ACTIVE_CALL	None
0x0E	MMI_QUERY_CURRENT_CALL_LIST	None
0x32	MMI_AV_PLAY_PAUSE	None
0x54	MMI_DEV_POWER_ON	ACI_EVENT_AUDIO_DEVICE_STATE
0x56	MMI_DEV_POWER_OFF	ACI_EVENT_AUDIO_DEVICE_STATE
0x58	MMI_DEV_FACTORY_RESET_TO_DEFAULT	ACI_EVENT_AUDIO_DEVICE_STATE
0xA1	MMI_DUT_TEST_MODE	None
0xBB	MMI_DULT_ENTER_ID_READ_STATE	None

Command Detail:

• MMI_FORCE_END_OUTGOING_CALL: End call without checking SCO status.

• MMI_ANSWER_CALL: Answer an incoming call.

• MMI_REJECT_CALL: Reject an incoming call.

• MMI_END_ACTIVE_CALL: Add SCO if SCO doesn’t exist, otherwise end the call.

• MMI_QUERY_CURRENT_CALL_LIST: Query call list.

• MMI_AV_PLAY_PAUSE: Play or pause the audio stream.

• MMI_DEV_POWER_ON: Change the device to power on state.

• MMI_DEV_POWER_OFF: Change the device to power off state.

• MMI_DEV_FACTORY_RESET_TO_DEFAULT: Reset the device to factory settings.

• MMI_DUT_TEST_MODE: Enter device test mode.

• MMI_DULT_ENTER_ID_READ_STATE: Make the device enter ID read state.

ACI_CMD_LEGACY_DATA_TRANSFER

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEGACY_DATA_TRANSFER	0x0005	link_id, type, total_length, payload_length, payload	None

Description

This command is used to send to SPP.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	Link index, which will be informed when the link is established (ACI_EVENT_PROFILE_CONN_STATUS).

type: (Size: 1 octet)

Value	Parameter Description
0x00	Single packet.
0x01	Fragmented start packet.
0x02	Fragmented continue packet.
0x03	Fragmented end packet.

total_length: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Total payload length.

payload_length: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Payload length in this packet.

payload: (Size: N octets)

Value	Parameter Description
payload	N octets of the payload in this packet.

ACI_CMD_ASSIGN_BUFFER_SIZE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_ASSIGN_BUFFER_SIZE	0x0006	rx_buffer_size	None

Description

Host indicates to the Device about the max UART RX buffer size. The default value is 256 Bytes.

Command Parameters

rx_buffer_size: (Size: 2 octets)

Value	Parameter Description
0xXXXX	The max UART RX buffer size of Host MCU.

ACI_CMD_BT_GET_REMOTE_NAME

Command	Opcode	Command Parameters	Return Event
ACI_CMD_BT_GET_REMOTE_NAME	0x0435	bd_addr	None

Description

Get the remote device name.

Command Parameters

bd_addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXX	The remote device Bluetooth address.

ACI_CMD_SET_CFG

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SET_CFG	0x0012	cfg_type, cfg_data	None

Description

Set device’s LE/legacy name.

Command Parameters

cfg_type: (Size: 1 octet)

Value	Parameter Description
0x00	Set the LE display name.
0x01	Set the BR/EDR display name.

cfg_data: (Size: N octets)

Value	Parameter Description
Name_length	Must be less than 39.
Name	Name with length.

ACI_CMD_GET_CFG_SETTING

Command	Opcode	Command Parameters	Return Event
ACI_CMD_GET_CFG_SETTING	0x0017	get_type	ACI_EVENT_REPORT_CFG_TYPE

Description

Get config setting of device’s LE/legacy name.

Command Parameters

get_type: (Size: 1 octet)

Value	Parameter Description
0x00	GET_CFG_LE_NAME
0x01	GET_CFG_LEGACY_NAME

ACI_CMD_GET_STATUS

Command	Opcode	Command Parameters	Return Event
ACI_CMD_GET_STATUS	0x0018	status_index	ACI_EVENT_REPORT_STATUS

Description

Report some status information.

Command Parameters

status_index: (Size: 1 octet)

Value	Parameter Description
0x02	Report device battery.
0x04	Report application state.
0x0F	Report factory reset status.
0x10	Report reject connect request status.
0x11	Report radio mode.
0x12	Report SCO status.
0x13	Report MIC mute status.
0xA1	Report device volume.

ACI_CMD_BT_HFP_DIAL_WITH_NUMBER

Command	Opcode	Command Parameters	Return Event
ACI_CMD_BT_HFP_DIAL_WITH_NUMBER	0x001B	dial_num_payload	None

Description

Dial out with number to outgoing call.

Command Parameters

dial_num_payload: (Size: 25 octets)

Value	Parameter Description
25 octets	The number is in ASCII format.

ACI_CMD_GET_BD_ADDR

Command	Opcode	Command Parameters	Return Event
ACI_CMD_GET_BD_ADDR	0x001C	None	ACI_EVENT_GET_BD_ADDR

Description

Get Bluetooth device address.

Command Parameters

None.

ACI_CMD_STRING_MODE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_STRING_MODE	0x001E	None	None

Description

This command is used to set string mode.

Command Parameters

None.

ACI_CMD_SET_VP_VOLUME

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SET_VP_VOLUME	0x001F	VP volume	None

Description

This command is used to set voice prompt volume.

Command Parameters

VP volume: (Size: 1 octet)

Value	Parameter Description
0x00 ~ 0x0F	VP volume level.

ACI_CMD_SET_AND_READ_DLPS

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SET_AND_READ_DLPS	0x0020	action	ACI_EVENT_REPORT_DLPS_STATUS

Description

Enable/disable device auto-enter DLPS.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	Disable auto enter DLPS.
0x01	Enable auto enter DLPS.

ACI_CMD_XM_SET_MODE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_SET_MODE	0x0030	mode	None

Description

Set device mode.

Command Parameters

mode: (Size: 1 octet)

Value	Parameter Description
0x00	Disable page scan and inquiry scan.
0x01	Enable inquiry scan.
0x02	Enable page scan.
0x03	Enable page scan and inquiry scan.

ACI_CMD_BT_HFP_SCO_MAG

Command	Opcode	Command Parameters	Return Event
ACI_CMD_BT_HFP_SCO_MAG	0x0040	link_id, cfm	None

Description

SCO connection management.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	Link index, this index will be informed when the link established (event: ACI_EVENT_PROFILE_CONN_STATUS).

cfm: (Size: 1 octet)

Value	Parameter Description
0x00	Reject the SCO connection indication.
0x01	Accept the SCO connection indication.
0x02	Send a request to disconnect the SCO connection.

ACI_CMD_LE_DATA_TRANSFER

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_DATA_TRANSFER	0x0102	link_id, type, total_length, payload_length, payload	None

Description

This command is used to send the data to remote devices via the LE link.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

type: (Size: 1 octet)

Value	Parameter Description
0x00	Single packet.
0x01	Fragmented start packet.
0x02	Fragmented continue packet.
0x03	Fragmented end packet.

total_length: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Total payload length.

payload_length: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Payload length in this packet.

payload: (Size: N octets)

Value	Parameter Description
N octets	payload in this packet.

ACI_CMD_LE_START_SCAN

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_START_SCAN	0x0103	local_addr_type, phys, filter_policy, filter_duplicates, scan_type of 1M PHY, scan_interval of 1M PHY, scan_window of 1M PHY, scan_type of Coded PHY, scan_interval of Coded PHY, scan_window of Coded PHY	None

Description

Start LE scan.

Command Parameters

local_addr_type: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_LOCAL_ADDR_LE_PUBLIC
0x01	GAP_LOCAL_ADDR_LE_RANDOM
0x02	GAP_LOCAL_ADDR_LE_RPA_OR_PUBLIC
0x03	GAP_LOCAL_ADDR_LE_RPA_OR_RAND

phys: (Size: 1 octet)

Value	Parameter Description
0x01	GAP_EXT_SCAN_PHYS_1M_BIT
0x04	GAP_EXT_SCAN_PHYS_CODED_BIT
0x05	GAP_EXT_SCAN_PHYS_ALL

filter_policy: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_SCAN_FILTER_ANY
0x01	GAP_SCAN_FILTER_WHITE_LIST
0x02	GAP_SCAN_FILTER_ANY_RPA
0x03	GAP_SCAN_FILTER_WHITE_LIST_RPA

ext_filter_duplicate: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_SCAN_FILTER_DUPLICATE_DISABLE
0x01	GAP_SCAN_FILTER_DUPLICATE_ENABLE
0x02	GAP_SCAN_FILTER_DUPLICATE_ENABLED_RESET_FOR_EACH_PERIOD

scan_type of 1M PHY: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_SCAN_MODE_PASSIVE
0x01	GAP_SCAN_MODE_ACTIVE

scan_interval of 1M PHY: (Size: 1 octet)

Value	Parameter Description
0xXX	In units of 0.625ms, range: 0x0004 to 0xFFFF.

scan_window of 1M PHY: (Size: 1 octet)

Value	Parameter Description
0xXX	In units of 0.625ms, range: 0x0004 to 0xFFFF.

scan_type of Coded PHY: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_SCAN_MODE_PASSIVE
0x01	GAP_SCAN_MODE_ACTIVE

scan_interval of Coded PHY: (Size: 1 octet)

Value	Parameter Description
0xXX	In units of 0.625ms, range: 0x0004 to 0xFFFF.

scan_window of Coded PHY: (Size: 1 octet)

Value	Parameter Description
0xXX	In units of 0.625ms, range: 0x0004 to 0xFFFF.

ACI_CMD_LE_STOP_SCAN

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_STOP_SCAN	0x0104	None	None

Description

Stop LE scan.

Command Parameters

None.

ACI_CMD_LE_START_PAIR

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_START_PAIR	0x0109	link_id	None

Description

This command is used to pair a connected device.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

ACI_CMD_LE_CREATE_CONN

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_CREATE_CONN	0x010E	init_phys, remote_bd_type, remote_bd[6], local_bd_type, scan_timeout	None

Description

This command is used to initiate connection to a specific device.

Command Parameters

init_phys: (Size: 1 octet)

Value	Parameter Description
0xXX	Bit0: 1M PHY. Bit1: 2M PHY. Bit2: Codec PHY.

remote_bd_type: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_REMOTE_ADDR_LE_PUBLIC
0x01	GAP_REMOTE_ADDR_LE_RANDOM
0x02	GAP_REMOTE_ADDR_LE_PUBLIC_IDENTITY
0x03	GAP_REMOTE_ADDR_LE_RANDOM_IDENTITY
0x10	GAP_REMOTE_ADDR_CLASSIC
0xff	GAP_REMOTE_ADDR_LE_ANONYMOUS

remote_bd: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	The address of device intended to connect.

local_bd_type: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_LOCAL_ADDR_LE_PUBLIC
0x01	GAP_LOCAL_ADDR_LE_RANDOM
0x02	GAP_LOCAL_ADDR_LE_RAP_OR_PUBLIC
0x03	GAP_LOCAL_ADDR_LE_RAP_OR_RAND

scan_timeout: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Scan timer in units of 10ms.

ACI_CMD_ANCS_GET_NOTIFICATION_ATTR

Command	Opcode	Command Parameters	Return Event
ACI_CMD_ANCS_GET_NOTIFICATION_ATTR	0x0111	link_id, notification_uid, attribute_ids_len, attribute_id	ACI_EVENT_ANCS_NOTIFICATION

Description

This command is used to get the notification attribute.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

notification_uid: (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	notification_uid

attribute_ids_len: (Size: 1 octet)

Value	Parameter Description
0xXX	attribute_ids_len

attribute_ids: (Size: attribute_ids_len octets)

Value	Parameter Description
0xXX, …	attribute_ids

ACI_CMD_ANCS_GET_APP_ATTR

Command	Opcode	Command Parameters	Return Event
ACI_CMD_ANCS_GET_APP_ATTR	0x0112	link_id, app_identifier_len, app_identifier, attribute_ids_len, attribute_id	ACI_EVENT_ANCS_NOTIFICATION

Description

This command is used to get the APP attribute.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

app_identifier_len: (Size: 1 octet)

Value	Parameter Description
0xXX	app_identifier_len

app_identifier: (Size: N octets)

Value	Parameter Description
N octets	app_identifier

attribute_ids_len: (Size: 1 octet)

Value	Parameter Description
0xXX	attribute_ids_len

attribute_ids: (Size: N octets)

Value	Parameter Description
N octets	attribute_ids

ACI_CMD_ANCS_PERFORM_NOTIFICATION_ACTION

Command	Opcode	Command Parameters	Return Event
ACI_CMD_ANCS_PERFORM_NOTIFICATION_ACTION	0x0113	link_id, notification_uid, action_id	ACI_EVENT_ANCS_ACTION_RESULT

Description

This command is used to perform the notification action.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

notification_uid: (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	notification_uid

action_id: (Size: 1 octet)

Value	Parameter Description
0xXX	action_id

ACI_CMD_AMS_WRITE_REMOTE_CMD

Command	Opcode	Command Parameters	Return Event
ACI_CMD_AMS_WRITE_REMOTE_CMD	0x0115	link_id, cmd_id	None

Description

This command is used to send remote CMD to iOS media APP.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

cmd_id: (Size: 1 octet)

Value	Parameter Description
0x00	RemoteCommandID_Play
0x01	RemoteCommandID_Pause
0x02	RemoteCommandID_TogglePlayPause
0x03	RemoteCommandID_NextTrack
0x04	RemoteCommandID_PreviousTrack
0x05	RemoteCommandID_VolumeUp
0x06	RemoteCommandID_VolumeDown
0x07	RemoteCommandID_AdvanceRepeatMode
0x08	RemoteCommandID_AdvanceShuffleMode
0x09	RemoteCommandID_SkipForward
0x0A	RemoteCommandID_SkipBackward
0x0B	RemoteCommandID_LikeTrack
0x0C	RemoteCommandID_DislikeTrack
0x0D	RemoteCommandID_BookmarkTrack
Others	Reserved.

ACI_CMD_AMS_WRITE_ENTITY_UPD_CMD

Command	Opcode	Command Parameters	Return Event
ACI_CMD_AMS_WRITE_ENTITY_UPD_CMD	0x0116	link_id, value_len, value	None

Description

This command is used to send entity update CMD to iOS media APP.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

value_len: (Size: 1 octet)

Value	Parameter Description
0xXX	Value_len

value: (Size: value_len octets)

Value	Parameter Description
0xXX, …	Value

ACI_CMD_LE_MODIFY_WHITELIST

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_MODIFY_WHITELIST	0x0161	operation, address, address_type	None

Description

This command is used to modify the white list.

Command Parameters

operation: (Size: 1 octet)

Value	Parameter Description
0x00	Clear white list.
0x01	Add a device to the white list.
0x02	Remove a device from the white list.

address (Needless for clear white list): (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Address

address_type: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_REMOTE_ADDR_LE_PUBLIC
0x01	GAP_REMOTE_ADDR_LE_RANDOM
0x02	GAP_REMOTE_ADDR_LE_PUBLIC_IDENTITY
0x03	GAP_REMOTE_ADDR_LE_RANDOM_IDENTITY
0x10	GAP_REMOTE_ADDR_CLASSIC
0xff	GAP_REMOTE_ADDR_LE_ANONYMOUS

ACI_CMD_LE_MODIFY_WHITELIST_BY_IDX

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_MODIFY_WHITELIST_BY_IDX	0x0162	operation, bond_idx	None

Description

This command is used to modify white list by bond index.

Command Parameters

operation: (Size: 1 octet)

Value	Parameter Description
0x00	Clear white list.
0x01	Add a device to white list.
0x02	Remove a device from white list.

bond_idx (Needless for clear white list): (Size: 1 octet)

Value	Parameter Description
0xXX	Operate target device in the bond list by priority.

ACI_CMD_LE_MODIFY_RESOLVELIST_BY_IDX

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_MODIFY_RESOLVELIST_BY_IDX	0x0163	operation, bond_idx	None

Description

This command is used to modify the resolving list by bond index.

Command Parameters

operation: (Size: 1 octet)

Value	Parameter Description
0x00	Clear resolving list.
0x01	Add a device to the resolving list.
0x02	Remove a device from the resolving list.

bond_idx (Needless for clear resolving list): (Size: 1 octet)

Value	Parameter Description
0xXX	Operate target device in the bond list by priority.

ACI_CMD_LE_SET_RESOLUTION

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LE_SET_RESOLUTION	0x0164	target_state	None

Description

This command is used to enable/disable resolution.

Command Parameters

target_state: (Size: 1 octet)

Value	Parameter Description
0x00	Disable resolution.
0x01	Enable resolution.

ACI_CMD_SET_VOLUME

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SET_VOLUME	0x020A	volume level	ACI_EVENT_REPORT_STATUS

Description

Set playback or voice volume depending on the scenario.

Command Parameters

volume level: (Size: 1 octet)

Value	Parameter Description
0xXX	0~maximum (Volume level).

ACI_CMD_GET_FW_VERSION

Command	Opcode	Command Parameters	Return Event
ACI_CMD_GET_FW_VERSION	0x0308	type	ACI_EVENT_FW_VERSION

Description

Get the firmware version.

Command Parameters

type: (Size: 1 octet)

Value	Parameter Description
0x00	Get FW version.

ACI_CMD_BT_BOND_INFO_CLEAR

Command	Opcode	Command Parameters	Return Event
ACI_CMD_BT_BOND_INFO_CLEAR	0x0309	link_type, bd_addr	ACI_EVENT_BT_BOND_INFO_CLEAR

Description

Clear the device’s link key of the target remote connection according to bd_addr.

Command Parameters

link_type: (Size: 1 octet)

Value	Parameter Description
0x00	Clear BR/EDR bond info.
Others	Reserved.

bd_addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	MAC address of target device.

ACI_CMD_GET_PACKAGE_ID

Command	Opcode	Command Parameters	Return Event
ACI_CMD_GET_PACKAGE_ID	0x030F	None	ACI_EVENT_REPORT_PACKAGE_ID

Description

Get chip ID and package ID.

Command Parameters

None.

ACI_CMD_SWITCH_TO_HCI_DOWNLOAD_MODE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SWITCH_TO_HCI_DOWNLOAD_MODE	0x0310	None	None

Description

This command is used to enter HCI download mode and then reset.

Command Parameters

None.

ACI_CMD_INQUIRY

Command	Opcode	Command Parameters	Return Event
ACI_CMD_INQUIRY	0x0321	action, timeout	ACI_EVENT_BR_INQUIRY_STATE, ACI_EVENT_BR_INQUIRY_RESULT

Description

This request searches the neighbor’s Bluetooth devices.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	Start inquiry.
0x01	Stop inquiry.

timeout: (Size: 1 octet)

Value	Parameter Description
0x01 ~ 0x30	The maximum amount of time before the inquiry is halted. Time = N * 1.28 sec. Range: 1.28 - 61.44 sec.

ACI_CMD_SEND_DTMF

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SEND_DTMF(abandon)	0x0400	number	None

Description

Send DTMF.

Command Parameters

number: (Size: 1 octet)

Value	Parameter Description
0xXX	The DTMF character must be one from the set 0-9, A-D, #, *. For example, if the character is 3, the parameter number should be set to 0x33.

ACI_CMD_SEND_VGM

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SEND_VGM	0x0403	level	None

Description

Send VGM.

Command Parameters

level: (Size: 1 octet)

Value	Parameter Description
0xXX	VGM value, range: 0 ~ 15.

ACI_CMD_SEND_VGS

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SEND_VGS	0x0404	level	None

Description

Send VGS.

Command Parameters

level: (Size: 1 octet)

Value	Parameter Description
0xXX	VGS value, range: 0 ~ 15.

ACI_CMD_HFP_AG_CONNECT_SCO

Command	Opcode	Command Parameters	Return Event
ACI_CMD_HFP_AG_CONNECT_SCO	0x0480	link_id	None

Description

HFP: AG connects SCO.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0x00	Link ID.

ACI_CMD_HFP_AG_DISCONNECT_SCO

Command	Opcode	Command Parameters	Return Event
ACI_CMD_HFP_AG_DISCONNECT_SCO	0x0481	link_id	None

Description

HFP AG disconnects SCO.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0x00	Link ID.

ACI_CMD_HFP_AG_CALL_INCOMING

Command	Opcode	Command Parameters	Return Event
ACI_CMD_HFP_AG_CALL_INCOMING	0x0482	link_id	None

Description

Notify the incoming call.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0x00	Link ID.

ACI_CMD_HFP_AG_CALL_ANSWER

Command	Opcode	Command Parameters	Return Event
ACI_CMD_HFP_AG_CALL_ANSWER	0x0483	link_id	None

Description

Answer the incoming call.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0x00	Link ID.

ACI_CMD_HFP_AG_CALL_TERMINATE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_HFP_AG_CALL_TERMINATE	0x0484	link_id	None

Description

Terminate the call.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0x00	Link ID.

ACI_CMD_HFP_AG_MIC_GAIN_LEVEL_SET

Command	Opcode	Command Parameters	Return Event
ACI_CMD_HFP_AG_MIC_GAIN_LEVEL_SET	0x0488	link_id, action	None

Description

Mute or unmute the MIC.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0x00	Link ID.

action: (Size: 1 octet)

Value	Parameter Description
0x00	MIC_MUTE
0x0A	MIC_UNMUTE

ACI_CMD_HFP_AG_SPEAKER_GAIN_LEVEL_SET

Command	Opcode	Command Parameters	Return Event
ACI_CMD_HFP_AG_SPEAKER_GAIN_LEVEL_SET	0x0489	link_id, action	None

Description

Turn the SPK volume up or down.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0x00	Link ID.

action: (Size: 1 octet)

Value	Parameter Description
0x00	SPK_VOL_UP
0x00	SPK_VOL_DOWN

ACI_CMD_PBAP_DOWNLOAD

Command	Opcode	Command Parameters	Return Event
ACI_CMD_PBAP_DOWNLOAD	0x0420	method	None

Description

PBAP download.

Command Parameters

method: (Size: 1 octet)

Value	Parameter Description
0x03 ~ 0x05	PBAP download method, range: 0x03: PBAP_DOWNLOAD_METHOD_ALL, download the phone book of ME/SM and CCH. 0x04: PBAP_DOWNLOAD_METHOD_ALL_PB, download the phone book of ME/SM. 0x05: PBAP_DOWNLOAD_METHOD_CCH, the Combined Calls History contains incoming/outgoing/missed call history.

ACI_CMD_PBAP_CONNECT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_PBAP_CONNECT	0x0423	None	None

Description

PBAP connect.

Command Parameters

None.

ACI_CMD_PBAP_DISCONNECT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_PBAP_DISCONNECT	0x0426	None	None

Description

PBAP disconnect.

Command Parameters

None.

ACI_CMD_TRI_DONGLE_CMD

Command	Opcode	Command Parameters	Return Event
ACI_CMD_TRI_DONGLE_CMD	0x0A0E	sub_command_id, sub_command_parameters	ACI_APP_EVENT_TRI_DONGLE_EVENT_REPORT

Description

Command Tri dongle legacy & LE operation.

Command Parameters

sub_command_id: (Size: 1 octet)

Value	Parameter Description	Return Event
0x00	Command Tri dongle start LE scan.	ACI_APP_EVENT_TRI_DONGLE_EVENT_REPORT
0x01	Command Tri dongle stop LE scan.	None
0x02	Command Tri dongle start BR inquiry scan.	ACI_APP_EVENT_TRI_DONGLE_EVENT_REPORT
0x03	Command Tri dongle stop BR inquiry scan.	None
0x04	Command Tri dongle connect to target LE device.	None
0x05	Command Tri dongle disconnect to target LE device.	None
0x06	Command Tri dongle connect to target BR device.	None
0x07	Command Tri dongle disconnect to target BR device.	None
0x08	Command Tri dongle report connected LE device info.	ACI_APP_EVENT_TRI_DONGLE_EVENT_REPORT
0x09	Command Tri dongle report connected BR device info.	ACI_APP_EVENT_TRI_DONGLE_EVENT_REPORT
0x0A	Command Tri dongle clear all bond info.	None
0x0B	Command Tri dongle clear to target LE device.	None
0x0C	Command Tri dongle clear to target BR device.	None
0x0D	Command Tri dongle get passkey support info.	None
0x0E	Command Tri dongle BAS request to target LE device.	None
0x0F	Command Tri dongle DIS one UUID request to target LE device.	None
0x10	Command Tri dongle LE RSSI to target LE device.	None
0x11	Command Tri dongle BR RSSI to target LE device.	None
0x12	Command Tri dongle LE scan status.	None
0x13	Command Tri dongle BR inquiry scan status.	None
0x14	Command Tri dongle LE bondlist info.	None
0x15	Command Tri dongle DIS all UUID request to target LE device.	None
0x16	Command Tri dongle BR bondlist info.	None

Only the following sub command IDs are required to fill sub command parameters:

• 0x02 (Command Tri dongle start BR inquiry scan).

• 0x04 (Command Tri dongle connect to target LE device).

• 0x05 (Command Tri dongle disconnect to target LE device).

• 0x06 (Command Tri dongle connect to target BR device).

• 0x07 (Command Tri dongle disconnect to target BR device).

• 0x0B (Command Tri dongle clear to target LE device).

• 0x0C (Command Tri dongle clear to target BR device).

• 0x0E (Command Tri dongle BAS request to target LE device).

• 0x0F (Command Tri dongle DIS one UUID request to target LE device).

• 0x10 (Command Tri dongle LE RSSI to target LE device).

• 0x11 (Command Tri dongle BR RSSI to target LE device).

• 0x15 (Command Tri dongle DIS all UUID request to target LE device).

sub_command_parameters: (Size: 49 octets)

Sub Command ID	Required Sub Command Parameter
0x02	continuous (1 octet, 0 = Disable, 1 = Enable)
0x04	bd_addr (6 octets, Little-Endian), le_addr_type(1 octet), LE name length (1 octet), LE name (length correspond to LE name length)
0x05	bd_addr (6 octets, Little-Endian)
0x06	bd_addr (6 octets, Little-Endian)
0x07	bd_addr (6 octets, Little-Endian)
0x0B	bd_addr (6 octets, Little-Endian)
0x0C	bd_addr (6 octets, Little-Endian)
0x0E	bd_addr (6 octets, Little-Endian)
0x0F	UUID (2 octets, Little-Endian), bd_addr (6 octets, Little-Endian)
0x10	bd_addr (6 octets, Little-Endian)
0x11	bd_addr (6 octets, Little-Endian)
0x15	bd_addr (6 octets, Little-Endian)

ACI_CMD_FINDMY_FEATURE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_FINDMY_FEATURE	0x2300	action	None

Description

Find My action.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	ENTER_PAIRING
0x01	MMI_PUT_SERIAL_NUMBER

Command Detail

• ENTER_PAIRING: Enter Find My pairing mode.

• MMI_PUT_SERIAL_NUMBER: Put the state of the serial number.

ACI_CMD_GFPS_FINDER_FEATURE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_GFPS_FINDER_FEATURE	0x2400	action	None

Description

GFPS finder action.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	GFPS_FINDER_INVALID_ACTION
0x01	GFPS_FINDER_STOP_RING

Command Detail

• GFPS_FINDER_STOP_RING: Stop ring.

ACI_CMD_SPI_INIT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SPI_INIT	0x3200	role	None

Description

SPI role initialization.

Command Parameters

role: (Size: 1 octet)

Value	Parameter Description
0x00	SPI_ROLE_MASTER
0x01	SPI_ROLE_SLAVE

ACI_CMD_SPI_SLAVE_TRIGGER

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SPI_SLAVE_TRIGGER	0x3201	None	None

Description

Trigger SPI transmission by the slave. This command is for the test.

Command Parameters

None.

ACI_CMD_A2DP_XMIT_SET_ROUTE_OUT

Command	Opcode	Command Parameters	Return Event
CMD_A2DP_XMIT_SET_ROUTE_OUT	0x3223	route_path	None

Description

Set transparent transmission music (From SPI) output route.

Command Parameters

route_path: (Size: 1 octet)

Value	Parameter Description
0x00	XMIT_PLAY_ROUTE_A2DP_SRC
0x01	XMIT_PLAY_ROUTE_BIS

ACI_CMD_A2DP_XMIT_ROUTE_OUT_CTRL

Command	Opcode	Command Parameters	Return Event
ACI_CMD_A2DP_XMIT_ROUTE_OUT_CTRL	0x3220	type	None

Description

Enable playing transparent transmission music by A2DP Source or BIS music (From SPI).

Command Parameters

type: (Size: 1 octet)

Value	Parameter Description
0x00	XMIT_PLAY_STATE_START
0x01	XMIT_PLAY_STATE_IDLE

ACI_CMD_LEA_BSRC_INIT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_BSRC_INIT	0x3020	codec_type, bis_num, encryption	None

Description

Broadcast initialization.

Command Parameters

codec_type: (Size: 1 octet)

Value	Parameter Description
0x0D	CODEC_CFG_ITEM_48_4
0x03	CODEC_CFG_ITEM_16_2

bis_num: (Size: 1 octet)

Value	Parameter Description
0x01	bis_num = 1.
0x02	bis_num = 2.

encryption: (Size: 1 octet)

Value	Parameter Description
0x00	False.
0x01	True.

ull_mode: (Size: 1 octet)

Value	Parameter Description
0x00	False.
0x01	True.

pd: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Presentation delay (Effective when ull_mode is enabled).

ACI_CMD_LEA_BSRC_START

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_BSRC_START	0x3021	None	None

Description

Start broadcasting.

Command Parameters

None.

ACI_CMD_LEA_BSRC_STOP

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_BSRC_STOP	0x3022	stop_option	None

Description

Stop broadcasting.

Command Parameters

release: (Size: 1 octet)

Value	Parameter Description
0x00	Do not delete BIS configuration.
0x01	Delete BIS configuration.

ACI_CMD_LEA_SCAN

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_SCAN	0x3023	action	None

Description

Start or stop scanning devices supporting LE Audio.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	Start scanning.
0x01	Stop scanning.

ACI_CMD_LEA_CIS_START_MEDIA

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_CIS_START_MEDIA	0x3024	group_idx	None

Description

Start CIS music.

Command Parameters

group_idx: (Size: 1 octet)

Value	Parameter Description
0x00	start_group_idx_0: Start CIS media on group 0.
0x01	start_group_idx_1: Start CIS media on group 1.

ACI_CMD_LEA_CIS_STOP_STREAM

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_CIS_STOP_STREAM	0x3025	group_idx and action	None

Description

Stop CIS streaming.

Command Parameters

group_idx and action: (Size: 1 octet)

Value	Parameter Description
0x00	stop_group_idx_0: Stop CIS media on group 0.
0x01	release_group_idx_0: Stop CIS media on group 0 and release CIS.
0x02	stop_group_idx_1: Stop CIS media on group 1.
0x03	release_group_idx_1: Stop CIS media on group 1 and release CIS.

ACI_CMD_LEA_CIS_ULL_MODE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_CIS_ULL_MODE	0x3026	action	None

Description

Enable/Disable CIS media Ultra Low Latency mode. Please use this command before starting CIS media.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	Disable CIS ULL.
0x01	Enable CIS ULL.

ACI_CMD_LEA_CSIS_MEMBER_SCAN

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_CSIS_MEMBER_SCAN	0x3027	group_idx	None

Description

Scan devices belonging to the same group.

Command Parameters

group_idx: (Size: 1 octet)

Value	Parameter Description
0x00	group_idx_0
0x01	group_idx_1

ACI_CMD_LEA_CSIS_GROUP_SCAN_STOP

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_CSIS_GROUP_SCAN_STOP	0x3028	None	None

Description

Stop scanning devices that belong to the same group.

Command Parameters

None.

ACI_CMD_LEA_BST_START

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_BST_START	0x3029	action	None

Description

Broadcast audio reception start procedure.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	group_0_sync_0: Start broadcast on group 0 and sync 0.
0x01	group_0_sync_1: Start broadcast on group 0 and sync 1.
0x02	group_1_sync_0: Start broadcast on group 1 and sync 0.
0x03	group_1_sync_1: Start broadcast on group 1 and sync 1.

ACI_CMD_LEA_BST_STOP

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_BST_STOP	0x302A	action	None

Description

Broadcast audio reception stop procedure.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	group_0_sync_0: Stop broadcast on group 0 and sync 0.
0x01	group_0_sync_1: Stop broadcast on group 0 and sync 1.
0x02	group_1_sync_0: Stop broadcast on group 1 and sync 0.
0x03	group_1_sync_1: Stop broadcast on group 1 and sync 1.

ACI_CMD_LEA_BST_REMOVE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_BST_REMOVE	0x302B	action	None

Description

Broadcast audio reception removal procedure.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x00	group_0_sync_0: Remove broadcast on group 0 and sync 0.
0x01	group_0_sync_1: Remove broadcast on group 0 and sync 1.
0x02	group_1_sync_0: Remove broadcast on group 1 and sync 0.
0x03	group_1_sync_1: Remove broadcast on group 1 and sync 1.

ACI_CMD_LEA_GVCS_VOLUME

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_GVCS_VOLUME	0x302C	group_idx, volume	None

Description

Set VCS volume.

Command Parameters

group_idx: (Size: 1 octet)

Value	Parameter Description
0xXX	Group handle index.

volume: (Size: 1 octet)

Value	Parameter Description
0xXX	Set VCS volume to 0xXX.

ACI_CMD_LEA_GVCS_MUTE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_GVCS_MUTE	0x302D	group_idx, mute_state	None

Description

Set VCP mute state.

Command Parameters

group_idx: (Size: 1 octet)

Value	Parameter Description
0xXX	Group handle index.

mute_state: (Size: 1 octet)

Value	Parameter Description
0x00	Set unmute.
0x01	Set mute.

ACI_CMD_LEA_GMIC_MUTE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_GMIC_MUTE	0x302E	group_idx, mute_state	None

Description

Set GMIC MIC mute state.

Command Parameters

group_idx: (Size: 1 octet)

Value	Parameter Description
0xXX	Group handle index.

mute_state: (Size: 1 octet)

Value	Parameter Description
0x00	Set MIC unmute.
0x01	Set MIC mute.

ACI_CMD_LEA_BAAS_SCAN

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_BAAS_SCAN	0x302F	None	None

Description

Start extended scan for BAAS.

Command Parameters

None.

ACI_CMD_LEA_PA_SYNC_DEV

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_PA_SYNC_DEV	0x3030	dev_idx	None

Description

PA sync by device index.

Command Parameters

dev_idx: (Size: 1 octet)

Value	Parameter Description
0x00	Dev0: PA sync with device 0.
0x01	Dev1: PA sync with device 1.
0x02	Dev2: PA sync with device 2.

ACI_CMD_LEA_CIS_START_CONVERSATION

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_CIS_START_CONVERSATION	0x3031	group_idx	None

Description

Start CIS conversation.

Command Parameters

group_idx: (Size: 1 octet)

Value	Parameter Description
0x00	Start CIS media on group 0.
0x01	Start CIS media on group 1.

ACI_CMD_LEA_CCP_ACTION

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_CCP_ACTION	0x3032	call_action, call_index	None

Description

CCP control action.

Command Parameters

call_action: (Size: 1 octet)

Value	Parameter Description
0x05	Incoming call action.
0x12	Local terminate.
0x14	Local accept.

call_index: (Size: 1 octet)

Value	Parameter Description
0xXX	Call index.

ACI_CMD_LEA_MCP_STATE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_MCP_STATE	0x3033	media_state	None

Description

Update MCP state.

Command Parameters

media_state: (Size: 1 octet)

Value	Parameter Description
0x01	The media player starts playing the current track.
0x02	The media player paused the current track.

ACI_CMD_LEA_MCP_NOTIFY

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_MCP_NOTIFY	0x3034	mcs_uuid, param	None

Description

Set MCP Notification.

Command Parameters

mcs_uuid: (Size: 2 octets)

Value	Parameter Description
0x2B96	MCS_UUID_CHAR_TRACK_CHANGED
0x2B98	MCS_UUID_CHAR_TRACK_DURATION
0x2B99	MCS_UUID_CHAR_TRACK_POSITION

param: (Size: 1 octet)

Value	Parameter Description
0x10	Track position.
0x60	Track duration.

ACI_CMD_LEA_ADV_START

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_ADV_START	0x3250	None	None

Description

Start LE Audio advertising, allowing the device to be scanned and connected by remote device.

Command Parameters

None.

ACI_CMD_LEA_ADV_STOP

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_ADV_STOP	0x3251	None	None

Description

Stop LE Audio advertising, preventing it from being scanned by remote device.

Command Parameters

None.

ACI_CMD_LEA_CCP_CALL_CP

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_CCP_CALL_CP	0x3252	conn_id, call_cp	ACI_APP_EVENT_CCP_CALL_STATUS

Description

Control the phone call of the connected remote device.

Command Parameters

conn_id: (Size: 1 octet)

Value	Parameter Description
0xXX	Connection identity for connected remote device.

call_cp: (Size: 1 octet)

Value	Parameter Description
0x00	Answer incoming call.
0x01	Terminate call.
0x02	Move call to local hold.
0x03	Move local hold call to active call.
0x04	Originate call.
0x05	Join calls.

ACI_CMD_LEA_MCP_MEDIA_CP

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_MCP_MEDIA_CP	0x3253	conn_id, media_cp	ACI_APP_EVENT_MCP_MEDIA_STATE

Description

Control the active music player of connected remote device.

Command Parameters

conn_id: (Size: 1 octet)

Value	Parameter Description
0xXX	Connection identity for connected remote device.

media_cp: (Size: 1 octet)

Value	Parameter Description
0x01	Play current track.
0x02	Pause current track.
0x03	Fast rewind.
0x04	Fast forward.
0x05	Stop current track.
0x30	Move to previous track.
0x31	Move to next track.

ACI_CMD_LEA_SYNC_INIT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_SYNC_INIT	0x3254	bis_mode, bis_policy, addr	None

Description

Initialize the BIS parameters, including BIS role and BIS policy.

The address field is only used when BIS policy is set to LEA_BIS_POLICY_SPECIFIC.

Command Parameters

bis_mode: (Size: 1 octet)

Value	Parameter Description
0x01	LEA_BROADCAST_DELEGATOR
0x02	LEA_BROADCAST_SINK

bis_policy: (Size: 1 octet)

Value	Parameter Description
0x00	LEA_BIS_POLICY_RANDOM
0x01	LEA_BIS_POLICY_SPECIFIC

addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	The source address that wants to sync.

ACI_CMD_LEA_SYNC

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_SYNC	0x3255	sync	None

Description

Start/stop syncing the broadcast audio stream.

Command Parameters

opcode: (Size: 2 octets)

Value	Parameter Description
0x00	Sync = true.
0x01	Sync = false.

ACI_CMD_LEA_VCS_SET

Command	Opcode	Command Parameters	Return Event
ACI_CMD_LEA_VCS_SET	0x3256	conn_id, vol_type	None

Description

Change the volume of the local device’s audio and notify VCS audio volume state to the remote device.

Command Parameters

conn_id: (Size: 1 octet)

Value	Parameter Description
0xXX	Connection identity for connected remote device.

vol_type: (Size: 1 octet)

Value	Parameter Description
0x00	Volume up.
0x01	Volume down.
0x02	SPK mute.
0x03	SPK unmute.

ACI_CMD_UART_DFU

Command	Opcode	Command Parameters	Return Event
ACI_CMD_UART_DFU	0x3270	opcode	None

Description

Start/abort UART DFU, transmit DFU Data, enable test mode, get device’s version, and reboot the device.

Command Parameters

opcode: (Size: 2 octets)

Value	Parameter Description
0x0000	UART_DFU_START_REQ, request to start DFU.
0x0001	UART_DFU_DATA_IND, send data packet.
0x0002	UART_DFU_ABORT, abort DFU.
0x0003	UART_DFU_REBOOT, reboot device.
0x0004	UART_DFU_TEST_EN, enable test mode.
0x0005	UART_DFU_GET_VER, get version of device.

ACI_CMD_SRC_PLAY_SET_SRC_ROUTE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_SET_SRC_ROUTE	0x3300	src_route	None

Description

Set source route.

Command Parameters

src_route: (Size: 2 octets)

Value	Parameter Description
0x01, 0x00	mic
0x02, 0x00	Line-in
0x03, 0x01	usb_ds
0x03, 0x02	usb_us
0x03, 0x03	usb_ds_us
0x04, 0x00	sd_card
0x05, 0x00	spdif
0x06, 0x00	I2S

ACI_CMD_SRC_PLAY_GET_SRC_ROUTE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_GET_SRC_ROUTE	0x3301	None	None

Description

Get source route.

Command Parameters

None.

ACI_CMD_SRC_PLAY_SET_PLAY_ROUTE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_SET_PLAY_ROUTE	0x3302	play_route	None

Description

Set play route.

Command Parameters

play_route: (Size: 1 octet)

Value	Parameter Description
0x01	a2dp
0x02	hfp_ag
0x03	bis
0x04	cis
0x05	local
0x06	multi_a2dp

ACI_CMD_SRC_PLAY_GET_PLAY_ROUTE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_GET_PLAY_ROUTE	0x3303	None	None

Description

Get play route.

Command Parameters

None.

ACI_CMD_SRC_PLAY_ROUTE_IN_START

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_ROUTE_IN_START	0x3304	None	None

Description

Start route in the record.

Command Parameters

None.

ACI_CMD_SRC_PLAY_ROUTE_IN_STOP

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_ROUTE_IN_STOP	0x3305	None	None

Description

Stop route in the record.

Command Parameters

None.

ACI_CMD_SRC_PLAY_ROUTE_OUT_START

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_ROUTE_OUT_START	0x3306	None	None

Description

Start to route out play.

Command Parameters

None.

ACI_CMD_SRC_PLAY_ROUTE_OUT_STOP

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_ROUTE_OUT_STOP	0x3307	None	None

Description

Stop route out play.

Command Parameters

None.

ACI_CMD_SRC_PLAY_ATTACH_FEATURE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_ATTACH_FEATURE	0x3312	feature_bits	None

Description

Configure attach feature(s).

Command Parameters

feature_bits: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Bit0: NREC, Bit1: Append LOCAL PLAY.

ACI_CMD_SRC_PLAY_DETACH_FEATURE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SRC_PLAY_DETACH_FEATURE	0x3313	feature_bits	None

Description

Detach attached feature(s).

Command Parameters

feature_bits: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Bit0: NREC, Bit1: Append LOCAL PLAY.

ACI_CMD_MAP_CONNECT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_MAP_CONNECT	0x3801	None	None

Description

Set up MAP connection.

Command Parameters

None.

ACI_CMD_MAP_GET_FOLDER_LISTING

Command	Opcode	Command Parameters	Return Event
ACI_CMD_MAP_GET_FOLDER_LISTING	0x3802	max_list_count, start_offset	None

Description

Get folder list through MAP.

Command Parameters

max_list_count: (Size: 1 octet)

Value	Parameter Description
0x0A	Max list count.

start_offset: (Size: 1 octet)

Value	Parameter Description
0x00	Start offset.

ACI_CMD_MAP_DISCONNECT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_MAP_DISCONNECT	0x3803	None	None

Description

Disconnect MAP connection.

Command Parameters

None.

ACI_CMD_MAP_GET_MESSAGE_LISTING

Command	Opcode	Command Parameters	Return Event
ACI_CMD_MAP_GET_MESSAGE_LISTING	0x3805	max_list_count, start_offset	None

Description

Get message list through MAP.

Command Parameters

max_list_count: (Size: 1 octet)

Value	Parameter Description
0x0A	Max list count.

start_offset: (Size: 1 octet)

Value	Parameter Description
0x00	Start offset.

ACI_CMD_MAP_REG_MSG_NOTIFICATION

Command	Opcode	Command Parameters	Return Event
ACI_CMD_MAP_REG_MSG_NOTIFICATION	0x3809	enable	None

Description

Register message notification through MAP.

Command Parameters

enable: (Size: 1 octet)

Value	Parameter Description
0x01	Enable.

ACI_CMD_MAP_GET_MESSAGE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_MAP_GET_MESSAGE	0x380A	handle_len, msg_handle[]	None

Description

Get a message through MAP.

Command Parameters

handle_len: (Size: 1 octet)

Value	Parameter Description
0x20	Length of message.

msg_handle: (Size: handle_len)

Value	Parameter Description
msg_handle[]	Array of message handles.

ACI_CMD_MAP_PUSH_MESSAGE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_MAP_PUSH_MESSAGE	0x3810	msg_len, msg[]	None

Description

Push message through MAP.

Command Parameters

msg_len: (Size: 1 octet)

Value	Parameter Description
0xXX	Length of a specific message to be pushed.

msg: (Size: variable)

Value	Parameter Description
msg[]	Array of messages.

ACI_CMD_SET_FRAME_INFO

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SET_FRAME_INFO (abandon)	0x5008	format, channel, sample_counts, sampling_freq, bitrate, version, layer	ACI_EVENT_REQ_MEDIA_FRAME

Description

Set MP3 information and trigger media playing.

Command Parameters

format: (Size: 1 octet)

Value	Parameter Description
0x30	MP3.

channel: (Size: 1 octet)

Value	Parameter Description
0x00	Stereo.
0x01	Joint stereo.
0x02	Dual.
0x03	Mono.

sample_counts: (Size: 2 octets)

Value	Parameter Description
0xXXXX	The frame size is the number of samples per frame.

sampling_freq: (Size: 4 octets)

Value	Parameter Description
48000, 44100, 32000, 24000, 22050, 16000, 11025, 12000, 8000	The sample rate for encoding or decoding.

bitrate: (Size: 4 octets)

Value	Parameter Description
8000 ~ 320000 bit/s	Bitrate for decoding.

version: (Size: 1 octet)

Value	Parameter Description
0	MPEG Version 2.5 (Unofficial).
1	Reserved.
2	MPEG Version 2 (ISO/IEC 13818-3).
3	MPEG Version 1 (ISO/IEC 11172-3).

layer: (Size: 1 octet)

Value	Parameter Description
0	Reserved.
1	Layer 3.
2	Layer 2.
3	Layer 1.

ACI_CMD_SET_FRAME_CONTENT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_SET_FRAME_CONTENT (abandon)	0x5009	frame_content	ACI_EVENT_REQ_MEDIA_FRAME

Description

Set MP3 frames to play.

Command Parameters

frame_content: (Size: N octets)

Value	Parameter Description
N octets	Each MP3 frame in the file.

ACI_CMD_XM_ENTER_HCI_MODE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_ENTER_HCI_MODE	0x8000	None	None

Description

Set the device into the HCI mode.

Command Parameters

None.

ACI_CMD_XM_DEVICE_REBOOT

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_DEVICE_REBOOT	0x8001	None	ACI_EVENT_AUDIO_DEVICE_STATE

Description

SW reboots after 1 sec.

Command Parameters

None.

ACI_CMD_XM_MMI

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_MMI	0x8004	action	None

Description

Makes MMI actions.

Command Parameters

action: (Size: 1 octet)

Value	Parameter Description
0x01	XM_MMI_MODE_LOCAL_PLAY
0x02	XM_MMI_MODE_A2DP_SOURCE
0x03	XM_MMI_BT_BOND_CLEAR_ALL

Command Detail:

• XM_MMI_MODE_LOCAL_PLAY: Switch music mode to local playback.

• XM_MMI_MODE_A2DP_SOURCE: Switch music mode to A2DP Source mode.

• XM_MMI_BT_BOND_CLEAR_ALL: Delete all bond information in bond storage.

ACI_CMD_XM_BT_SET_ADDR

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_BT_SET_ADDR	0x8005	bt_addr	None

Description

Modify the Bluetooth address of the device (Only can be used in the power on status, and will take effect after a factory reset).

Command Parameters

bt_addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	MAC address.

ACI_CMD_XM_SPP_DATA_TRANSFER

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_SPP_DATA_TRANSFER	0x8006	link_id, payload_length, payload	None

Description

Send vendor SPP data.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for BR/EDR link.

payload_length: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Payload length in this packet.

payload: (Size: N octets)

Value	Parameter Description
0xXXXX (N bytes)	N octets of the payload in this packet.

ACI_CMD_XM_GET_FACTORY_RESET

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_GET_FACTORY_RESET	0x80C3	None	ACI_EVENT_XM_FACTORY_RESET_STATUS

Description

Get factory reset status.

Command Parameters

None.

ACI_CMD_XM_USER_CFM_REQ

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_USER_CFM_REQ	0x8013	cfm_val	None

Description

The user confirms for BR/EDR pairing.

Command Parameters

cfm_val: (Size: 1 octet)

Value	Parameter Description
1 or 0	True or false.

ACI_CMD_XM_LE_START_ADVERTISING

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_START_ADVERTISING	0x8040	duration	None

Description

Start LE advertising.

Command Parameters

duration: (Size: 2 octets)

Value	Parameter Description
0xXXXX	LE advertising duration in seconds, little endian.

ACI_CMD_XM_LE_STOP_ADVERTISING

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_STOP_ADVERTISING	0x8041	None	None

Description

Stop LE advertising.

Command Parameters

None.

ACI_CMD_XM_LE_DISC

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_DISC	0x8042	link_id	None

Description

Disconnect LE link(s).

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0x00-0xfe	Disconnect APP layer ID for LE link.
0xff	Disconnect all LE links.

ACI_CMD_XM_LE_CONN_PARAM_UPDATE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_CONN_PARAM_UPDATE	0x8043	link_id, conn_interval, conn_latency, conn_supervision_timeout	None

Description

Update LE connection params.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for an LE link.

conn_interval: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Set LE preferred connection interval to conn_interval * 1.25 ms, little endian.

conn_latency: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Set LE preferred connection latency to conn_latency, little endian.

conn_supervision_timeout: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Set LE preferred connection supervision timeout to conn_supervision_timeout * 10ms, little endian.

ACI_CMD_XM_LE_ADV_DATA_UPDATE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_ADV_DATA_UPDATE	0x8044	adv_data_len, adv_data	None

Description

Update LE advertising data.

Command Parameters

adv_data_len: (Size: 2 octets)

Value	Parameter Description
0xXXXX	ADV data length, must be less than 31 bytes.

adv_data: (Size: adv_data_len octets)

Value	Parameter Description
0xXXXX	New advertising data payload.

ACI_CMD_XM_LE_SCAN_RSP_DATA_UPDATE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_SCAN_RSP_DATA_UPDATE	0x8045	scan_rsp_data_len, scan_rsp_data	None

Description

Update LE scan response data.

Command Parameters

scan_rsp_data_len: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Scan response data length, must be less than 31 bytes, little-endian.

scan_rsp_data: (Size: scan_rsp_data_len octets)

Value	Parameter Description
0xXXXX	New scan response data payload.

ACI_CMD_XM_LE_ADV_INTVAL_UPDATE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_ADV_INTVAL_UPDATE	0x8046	adv_interval	None

Description

Update LE advertising interval.

Command Parameters

adv_interval: (Size: 2 octets)

Value	Parameter Description
0xXXXX	Set LE advertising interval to adv_interval * 0.625ms (Must be between 20ms and 10.25s), little endian.

ACI_CMD_XM_LE_ATT_GET_MTU

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_ATT_GET_MTU	0x8047	link_id	ACI_EVENT_XM_LE_ATT_MTU

Description

Get LE ATT MTU size.

Command Parameters

link_id: (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for an LE link.

ACI_CMD_XM_LE_GET_ADDR

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_GET_ADDR	0x8048	None	ACI_EVENT_XM_LE_ADDR

Description

Get LE address.

Command Parameters

None.

ACI_CMD_XM_LE_BOND_DEL

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_BOND_DEL	0x804A	addr_type, addr	None

Description

Delete LE bond with the address.

Command Parameters

addr_type: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_REMOTE_ADDR_LE_PUBLIC
0x01	GAP_REMOTE_ADDR_LE_RANDOM
0x02	GAP_REMOTE_ADDR_LE_PUBLIC_IDENTITY
0x03	GAP_REMOTE_ADDR_LE_RANDOM_IDENTITY
0x10	GAP_REMOTE_ADDR_CLASSIC
0xff	GAP_REMOTE_ADDR_LE_ANONYMOUS

addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Address for every remote device.

ACI_CMD_XM_LE_ADV_CREATE

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_ADV_CREATE	0x804B	adv_handle, adv_prop, interval_min, interval_max, own_addr_type, own_addr, peer_addr_type, peer_addr, adv_data_len, adv_data, scan_rsp_len, scan_rsp	ACI_EVENT_XM_LE_ADV_CREATED

Description

Create a customized advertisement.

Command Parameters

adv_handle: (Size: 1 octet)

Value	Parameter Description
0xXX	Handle for an ADV set. For this command, it is useless.

adv_prop: (Size: 1 octet)

Value	Parameter Description
0x13	LE_EXT_ADV_LEGACY_ADV_CONN_SCAN_UNDIRECTED
0x15	LE_EXT_ADV_LEGACY_ADV_CONN_LOW_DUTY_DIRECTED
0x1D	LE_EXT_ADV_LEGACY_ADV_CONN_HIGH_DUTY_DIRECTED
0x12	LE_EXT_ADV_LEGACY_ADV_SCAN_UNDIRECTED
0x10	LE_EXT_ADV_LEGACY_ADV_NON_SCAN_NON_CONN_UNDIRECTED

interval_min, interval_max: (Size: 2 octet, in units of 0.625ms, range: 0x000020 to 0xFFFFFF)

Value	Parameter Description
0xXXXX	ADV interval.

own_addr_type: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_LOCAL_ADDR_LE_PUBLIC
0x01	GAP_LOCAL_ADDR_LE_RANDOM
0x02	GAP_LOCAL_ADDR_LE_RAP_OR_PUBLIC
0x03	GAP_LOCAL_ADDR_LE_RAP_OR_RAND

own_addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXXXX	own_addr

peer_addr_type: (Size: 1 octet)

Value	Parameter Description
0x00	GAP_REMOTE_ADDR_LE_PUBLIC
0x01	GAP_REMOTE_ADDR_LE_RANDOM
0x02	GAP_REMOTE_ADDR_LE_PUBLIC_IDENTITY
0x03	GAP_REMOTE_ADDR_LE_RANDOM_IDENTITY
0x10	GAP_REMOTE_ADDR_CLASSIC
0xff	GAP_REMOTE_ADDR_LE_ANONYMOUS

peer_addr: (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXXXX	peer_addr

adv_data_len: (Size: 2 octets)

Value	Parameter Description
0xXXXX	adv_data_len

adv_data: (Size: adv_data_len octet)

Value	Parameter Description
0xXX…	adv_data

scan_rsp_len: (Size: 2 octet)

Value	Parameter Description
0xXXXX	scan_rsp_len

scan_rsp: (Size: scan_rsp_len octet)

Value	Parameter Description
0xXX…	scan_rsp

ACI_CMD_XM_LE_BOND_DEL_ALL

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_BOND_DEL_ALL	0x804C	None	None

Description

Delete all bond info.

ACI_CMD_XM_MUSIC

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_MUSIC	0x8080	type, seq, data	ACI_EVENT_XM_MUSIC_REQ_FRAME

Description

Control music session flow.

ACK

When the type is 0x05 (Music session send single frame), ACK status (ACI_EVENT_ACK) would be 0x08, which means request MCU for another music frame.

Command Parameters

type: (Size: 1 octet)

Value	Parameter Description
0x00	Music session open.
0x01	Music session pause.
0x02	Music session resume.
0x03	Music session abort.
0x04	Music session close.
0x05	Music session send single frame.
Others	Reserved.

seq: (Size: 1 octet)

Value	Parameter Description
0x00 - 0xFF	Seq is fixed at 0x00 when type is: Music session open. Music session pause. Music session resume. Music session abort. Music session close. Music session send single frame.

data: (Size: N octets)

Value	Parameter Description
N octets	Music data.

ACI_CMD_XM_TTS

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_TTS	0x8081	type, seq, len, data	ACI_EVENT_XM_TTS_REQ_FRAME

Description

Control TTS session flow.

When the type is 0x05 (TTS session send single frame) or 0x08 (TTS session send end frame), ACK status (ACI_EVENT_ACK) would be 0x07, which means request MCU for another TTS frame.

Command Parameters

type: (Size: 1 octet)

Value	Parameter Description
0x00	TTS Session Open.
0x01	TTS session pause.
0x02	TTS session resume.
0x03	TTS session abort.
0x04	TTS session close.
0x05	TTS session send single frame.
0x06	TTS session send start frame.
0x07	TTS session send continue frame.
0x08	TTS session send end frame.
Others	Reserved.

seq: (Size: 1 octet)

Value	Parameter Description
0x00 - 0xFF	Seq is fixed at 0x00 when type is: TTS session open. TTS session pause. TTS session resume. TTS session abort. TTS session close. TTS session send single frame. TTS session send start frame. Seq is increased by 1 when type is: TTS session send continue frame. TTS session send end frame.

len: (Size: 2 octets)

Value	Parameter Description
0x0000-0xFFFF	TTS encoded data length.

data: (Size: len octets)

Value	Parameter Description
0xXXXX	TTS encoded data.

ACI_CMD_XM_START_RECORD

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_START_RECORD	0x8082	audio_type, audio_params	ACI_EVENT_XM_RECORDING_DATA

Description

Start recording.

Command Parameters

audio_type: (Size: 1 octet)

Value	Parameter Description
0x00	PCM
0x01	CVSD
0x02	mSBC
0x03	SBC
0x04	AAC
0x05	Opus
0x06	FLAC
0x07	MP3
0x08	LC3
0x09	LDAC

PCM Parameters

Sample Rate (Hz) [4 Bytes]	Frame Length (octets) [2 Bytes]	Channel Number [1 Byte]	Bit Width [1 Byte]
Supported values are 8000, 16000, 44100, 48000, and 96000.		1 (Mono) or 2 (Stereo).	16 or 24.

Opus Parameters

Sample Rate (Hz) [4 Bytes]	Channel Num [1 Byte]	CBR [1 byte]	CVBR [1 byte]
Supported value is 16000.	1 (Mono).	0 for VBR and 1 for CBR.	0 for VBR and 1 for CVBR.

Mode [1 byte]	Complexity [1 byte]	frame_duration [1 byte]	Bitrate [4 bytes]
The supported value is 3 for CELT-only.	From 0 to 3.	0 (2.5ms), 1 (5ms), 2 (10ms), 3 (20ms), 4 (40ms), 5 (60ms), 6 (80ms), 7 (100ms), 8 (120ms).	From 6000 bit/s to 510000 bit/s.

MSBC or SBC Parameters

Sample Rate (Hz) [4 Bytes]	Channel Number [1 Byte]	block_length [1 byte]
Supported values are 8000, 16000, 44100, and 48000 in Hz.	1 (Mono) or 2 (Stereo).	4, 8, 12, 16.

subband_num [1 byte]	allocation_method [1 byte]	Bitpool [1 byte]
4 or 8.	0 for Loudness and 1 for SNR.	from 2 to 250.

LC3 Parameters

Sample Rate (Hz) [4 Bytes]	Channel Allocation [4 Byte]	frame_length [2 byte]
Supported values are 16000, 48000.	0 (Mono).	40 for 16k and 120 for 48k.

frame_duration [1 byte]	Presentation Delay [4 byte]
0 for 7.5ms and 1 for 10ms.	From 0 to 0xFFFFFFFF in microsecond units.

ACI_CMD_XM_STOP_RECORD

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_STOP_RECORD	0x8503	None	None

Description

Stop recording.

Command Parameters

None.

ACI_CMD_XM_START_RECORD_PLAY

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_START_RECORD_PLAY	0x8504	audio_type	None

Description

Start record play.

Command Parameters

audio_type (Size: 1 octet)

Value	Parameter Description
0x00	PCM
0x01	CVSD
0x02	mSBC
0x03	SBC
0x04	AAC
0x05	Opus
0x06	FLAC
0x07	MP3
0x08	LC3
0x09	LDAC

pcm_params

Sample Rate (Hz) [4 Bytes]	Frame Length [2 Bytes]	Channel Number [1 Byte]	Bit Width [1 Byte]
8000, 16000, 44100, 48000, 96000.		1 (Mono) or 2 (Stereo).	16 or 24.

opus_params

Sample Rate (Hz) [4 Bytes]	Channel Number [1 Byte]	CBR [1 byte]	CVBR [1 byte]
8000, 16000, 44100, 48000, 96000.	1 (Mono) or 2 (Stereo).	0 for VBR and 1 for CBR.	0 for VBR and 1 for CVBR.

Mode [1 byte]	Complexity [1 byte]	frame_duration [1 byte]	Bitrate [4 bytes]
1 for SILK-only, 2 for Hybrid (SILK+CELT), 3 for CELT-only.	From 0 to 10.	0 (2.5ms), 1 (5ms), 2 (10ms), 3 (20ms), 4 (40ms), 5 (60ms), 6 (80ms), 7 (100ms), 8 (120ms).	From 6000 bit/s to 510000 bit/s.

ACI_CMD_XM_STOP_RECORD_PLAY

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_STOP_RECORD_PLAY	0x8505	None	None

Description

Stop record play.

Command Parameters

None.

ACI_CMD_XM_RECORD_PLAY_DATA

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_RECORD_PLAY_DATA	0x8086	record_data	None

Description

Send record data to play, need to start record play first.

Command Parameters

record_data (Size: 1024 octets)

Value	Parameter Description
1024	PCM data.

ACI_CMD_XM_SET_VOLUME_LEVEL

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_SET_VOLUME_LEVEL	0x8088	volume, type	None

Description

Set playback or voice volume depending on the scenario.

Command Parameters

volume (Size: 1 octet)

Value	Parameter Description
0xXX	0~15 (Volume level).

type (Size: 1 octet)

Value	Parameter Description
0x00	HFP_VOL
0x01	LOCAL_VOL
0x02	A2DP_SRC_VOL
0x03	RINGTONE_VOL
0x04	VP_VOL
0x05	TTS_VOL
0x06	RECORD_VOL
0x07	RECORD_MIC_VOL

ACI_CMD_XM_AUDIO_TEST_GET_PA_ID

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_AUDIO_TEST_GET_PA_ID	0x8089	None	ACI_EVENT_XM_AUDIO_TEST_PA_ID

Description

Get PA ID.

Command Parameters

None.

ACI_CMD_XM_AUDIO_TEST_BYPASS

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_AUDIO_TEST_BYPASS	0x808A	audio_mode	None

Description

Set audio algorithm bypass mode or normal mode.

Command Parameters

audio_mode (Size: 1 octet)

Value	Parameter Description
0x00	Normal mode.
0x01	Bypass mode.

ACI_CMD_XM_GATT_ACI

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_GATT_ACI	0x8007	conn_handle, cid, pkt_type, handle_index, total_length, payload_length, payload	None

Description

Transfer GATT data from UART.

Command Parameters

conn_handle (Size: 2 octets)

Value	Parameter Description
0xXXXX	The connection handle from HCI, 0x01 for BR/EDR and 0x13 for LE.

cid (Size: 2 octets)

Value	Parameter Description
0xXXXX	The channel ID for corresponding L2CAP channel. For BR/EDR, set it to 0x0000 for test. For LE, it is fixed to 0x0004.

pkt_type (Size: 1 octet)

Value	Parameter Description
0x00	Single packet.
0x01	Fragmented start packet.
0x02	Fragmented continue packet.
0x03	Fragmented end packet.

handle_index (Size: 1 octet)

Value	Parameter Description
0x01	Service 02fd.
0x11	Service unlock.
0x12	Service unlock.
0x21	Service factory.
0x61	Service HID.
0x71	Service HRS.
0x81	Service goodix.

total_length (Size: 2 octets)

Value	Parameter Description
0xXXXX	Total payload length.

payload_length (Size: 2 octets)

Value	Parameter Description
0xXXXX	Payload length in this packet.

payload (Size: N octets)

Value	Parameter Description
0xXXXX (N bytes)	N octets of the payload in this packet.

ACI_CMD_XM_SNIFF_MODE_CTRL

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_SNIFF_MODE_CTRL	0x8009	sniff_mode_enabled, sniff_mode_interval	None

Description

Enable or disable sniff mode for all BR/EDR links.

Command Parameters

sniff_mode_enabled (Size: 1 octet)

Value	Parameter Description
0 or 1	Means false or true to enable sniff mode.

sniff_mode_interval (Size: 2 octets)

Value	Parameter Description
0xXXXX	Sniff mode interval.

ACI_CMD_XM_LE_USER_CFM_REQ

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_LE_USER_CFM_REQ	0x8013	conn_id, cfm_result	None

Description

Confirm LE Connection.

Command Parameters

conn_id (Size: 1 octet)

Value	Parameter Description
0x00	Default.

cfm_result (Size: 1 octet)

Value	Parameter Description
0x00	False.
0x01	True.

ACI_CMD_XM_DISABLE_VERBOSE_LOG

Command	Opcode	Command Parameters	Return Event
ACI_CMD_XM_DISABLE_VERBOSE_LOG	0x80C0	log_type, log_key, module, level, turnon	None

Description

Close/open the log.

Command Parameters

log_type (Size: 1 octet)

Value	Parameter Description
0x01	Close/Open all current logs.
0x02	Close/Open different module logs.

log_key (Size: 1 octet)

Value	Parameter Description
0x00	Close all current logs.
0x01	Open all previously closed logs.

module (Size: 1 octet)

Value	Parameter Description
0x00~0x09	Platform modules.
0x0c~0x23	Device modules.
0x30~0x3f	Stack modules.

level (Size: 1 octet)

Value	Parameter Description
0x00	LEVEL_ERROR
0x01	LEVEL_WARN
0x02	LEVEL_INFO
0x03	LEVEL_TRACE

turnon (Size: 1 octet)

Value	Parameter Description
0x00	Turn off.
0x01	Turn on.

ACI_CMD_CHARGING_CASE_LE_CONTROL

Command	Opcode	Command Parameters	Return Event
ACI_CMD_CHARGING_CASE_LE_CONTROL	0x8100	cmd_id, cmd_data	None

Description

Send CMD to the headset by LE.

Command Parameters

cmd_id (Size: 2 octets)

Value	Parameter Description
0x0004	CMD_MMI
0x001F	CMD_SET_VP_VOLUME
0x0205	CMD_AUDIO_EQ_INDEX_SET
0x020A	CMD_SET_VOLUME
0x0704	CMD_SET_KEY_MMI_MAP

mmi_data (Size: 1 octet)

Value	Parameter Description
0x02	End an outgoing call.
0x03	Answer an incoming call.
0x04	Reject an incoming call.
0x05	End an active call.
0x06	MIC mute toggle.
0x07	MIC mute.
0x08	MIC unmute.
0x30	Volume up.
0x31	Volume down.
0x32	AV play/pause.
0x34	AV forward.
0x35	AV backward.
0x36	AV fast forward.
0x37	AV rewind.
0x80	Switch to gaming mode.
0xD3	Light sensor on/off.

vp_volume_data (Size: 1 octet)

Value	Parameter Description
0x00 ~ 0x0F	VP volume level.

eq_set_data (Size: 1 octet)

Value	Parameter Description
0xXX	EQ index.

volume_data (Size: 1 octet)

Value	Parameter Description
0xXX	0~maximum (Volume level).

mmi_map_data (Size: 1 octet)

Value	Parameter Description
0x30	Set MFB as volume up button.
0x31	Set MFB as volume down button.

ACI Events

Summary of ACI Events

Summary of ACI Events

Opcode	Command	Available
0x0000	ACI_EVENT_ACK	Y
0x0001	ACI_EVENT_BT_REPLY_PAIRED_RECORD	Y
0x0002	ACI_EVENT_LEGACY_DATA_TRANSFER	Y
0x0003	ACI_EVENT_PROFILE_CONN_STATUS	Y
0x0004	ACI_EVENT_PROFILE_CONNECT_FAIL_STATUS	Y
0x0005	ACI_EVENT_HFP_CALLER_ID	Y
0x0007	ACI_EVENT_AUDIO_DEVICE_STATE	Y
0x0009	ACI_EVENT_BR_REMOTE_NAME	Y
0x000A	ACI_EVENT_HFP_CALL_STATUS	Y
0x000B	ACI_EVENT_AUDIO_PLAYER_STATUS	Y
0x0013	ACI_EVENT_VOLUME_SYNC	Y
0x0014	ACI_EVENT_BR_LINK_STATUS	Y
0x0018	ACI_EVENT_REPORT_CFG_TYPE	Y
0x0019	ACI_EVENT_REPORT_STATUS	Y
0x001A	ACI_EVENT_GET_BD_ADDR	Y
0x001C	ACI_EVENT_REPORT_DLPS_STATUS	Y
0x001D	ACI_EVENT_REPORT_KEY_ACTION	Y
0x0020	ACI_EVENT_AUDIO_VOL_CHANGE	Y
0x0023	ACI_EVENT_BT_READY	Y
0x0025	ACI_EVENT_BR_INQUIRY_STATE	Y
0x0026	ACI_EVENT_SERVICES_SEARCH_STATE	Y
0x002B	ACI_EVENT_BR_INQUIRY_RESULT	Y
0x0100	ACI_EVENT_LE_CONNECTED	Y
0x0101	ACI_EVENT_LE_DISCONNECTED	Y
0x0102	ACI_EVENT_LE_PAIR_STATUS	Y
0x0103	ACI_EVENT_LE_VENDOR_DATA_TRANSFER	Y
0x0110	ACI_EVENT_ANCS_REGISTER_COMPLETE	Y
0x0111	ACI_EVENT_ANCS_NOTIFICATION	Y
0x0112	ACI_EVENT_ANCS_ACTION_RESULT	Y
0x0120	ACI_EVENT_AMS_REGISTER_COMPLETE	Y
0x0121	ACI_EVENT_AMS_ENTITY_UPD_NOTIFY	Y
0x0122	ACI_EVENT_AMS_ENTITY_UPD_NOTIFY_EN	Y
0x0123	ACI_EVENT_AMS_REMOTE_CMD_NOTIFY	Y
0x0124	ACI_EVENT_AMS_REMOTE_CMD_NOTIFY_EN	Y
0x0140	ACI_EVENT_LE_AUDIO_SCAN_INFO	Y
0x0141	ACI_EVENT_LE_AUDIO_BAP_STATE	Y
0x0142	ACI_EVENT_LE_AUDIO_BAP_DISCOVERY_DONE	Y
0x0143	ACI_EVENT_LE_AUDIO_CSIS_SCAN_STATE	Y
0x0144	ACI_EVENT_LE_AUDIO_ADD_GROUP	Y
0x0145	ACI_EVENT_LE_AUDIO_ADD_SYNC_HANDLE	Y
0x0146	ACI_EVENT_LE_AUDIO_BAAS_SCAN_INFO	Y
0x0147	ACI_EVENT_LE_AUDIO_PA_SYNC_STATE	Y
0x0300	ACI_EVENT_SCO_STATE	Y
0x0301	ACI_EVENT_CALL_WAITING	Y
0x0306	ACI_EVENT_SUBSCRIBER_NUMBER	Y
0x0307	ACI_EVENT_CURRENT_CALLS	Y
0x0308	ACI_EVENT_DTMF	Y
0x0381	ACI_EVENT_HFP_AG_CONN_CMPL	Y
0x0389	ACI_EVENT_HFP_AG_SUPPORTED_FEATURES	Y
0x038D	ACI_EVENT_HFP_AG_CURR_CALLS_LIST_QUERY	Y
0x0396	ACI_EVENT_HFP_AG_NETWORK_NAME_FORMAT_SET	Y
0x3160	ACI_EVENT_DFU_START_RSP	Y
0x3161	ACI_EVENT_DFU_DATA_REQ	Y
0x3162	ACI_EVENT_DFU_RESULT	Y
0x3163	ACI_EVENT_DFU_LOCAL_VERSION	Y
0x0A0E	ACI_APP_EVENT_TRI_DONGLE_EVENT_REPORT	Y
0x3252	ACI_APP_EVENT_CCP_CALL_STATUS	Y
0x3253	ACI_APP_EVENT_MCP_MEDIA_STATE	Y
0x3256	ACI_APP_EVENT_VCS_STATE	Y
0x0904	ACI_EVENT_BT_BOND_INFO_CLEAR	Y
0x0909	ACI_EVENT_FW_VERSION	Y
0x0911	ACI_EVENT_REPORT_PACKAGE_ID	Y
0x5001	ACI_EVENT_REQ_MEDIA_FRAME	Y
0x8000	ACI_EVENT_XM_SPP_DATA_TRANSFER	Y
0x8001	ACI_EVENT_XM_SPP_CONNECT_STATUS	Y
0x8002	ACI_EVENT_XM_SPP_DISCONNECT_STATUS	Y
0x8003	ACI_EVENT_XM_BR_ATT_CONNECTED	Y
0x8004	ACI_EVENT_XM_BR_ATT_DISCONNECTED	Y
0x8005	ACI_EVENT_XM_GATT_DATA_TRANSFER	Y
0x8006	ACI_EVENT_XM_GATT_CREDIT_UPDATE	Y
0x8040	ACI_EVENT_XM_LE_ADV_STATE	Y
0x8041	ACI_EVENT_XM_LE_ATT_MTU	Y
0x8042	ACI_EVENT_XM_LE_ADDR	Y
0x8043	ACI_EVENT_XM_LE_CON_STATE	Y
0x8044	ACI_EVENT_XM_LE_CON_PARAM	Y
0x8045	ACI_EVENT_XM_GATT_CON_NOTIFY	Y
0x8046	ACI_EVENT_XM_LE_USER_CONFIRMATION_REQ	Y
0x8048	ACI_EVENT_XM_LE_ADV_CREATED	Y
0x80C0	ACI_EVENT_XM_FACTORY_RESET_STATUS	Y
0x8500	ACI_EVENT_XM_MUSIC_REQ_FRAME	Y
0x8501	ACI_EVENT_XM_TTS_REQ_FRAME	Y
0x8502	ACI_EVENT_XM_RECORDING_DATA	Y
0x8600	ACI_EVENT_XM_AUDIO_TEST_PA_ID	Y
0x8700	ACI_EVENT_XM_BT_AVRCP_STATUS	Y
0x8800	ACI_EVENT_XM_USER_CONFIRMATION_REQ	Y

ACI_EVENT_ACK

Event	Opcode	Event Parameters
ACI_EVENT_ACK	0x0000	cmd_id, status

Description

Acks the received command for device.

Event Parameters

cmd_id (Size: 2 octets)

Value	Parameter Description
0xXX	The command ID to ACK.

status (Size: 1 octet)

Value	Parameter Description
0x00	Command complete: BTM can handle this command.
0x01	Command disallow: BTM cannot handle this command.
0x02	Unknown CMD.
0x03	Parameters error.
0x04	Busy.
0x05	Process fail maybe due to stack resource.
0x07	TTS frame send success and request for another TTS frame.
0x08	Music frame send success and request for another music frame.
0x09	SPP transfer success when sent to phone.
0x10	SPP transfer failed when sent to phone.
0x11	GATT transfer can continue sending to phone.
0x12	GATT transfer cannot continue sending to phone.
Others	Reserved.

ACI_EVENT_BT_REPLY_PAIRED_RECORD

Event	Opcode	Event Parameters
ACI_EVENT_BT_REPLY_PAIRED_RECORD	0x0001	paired_device_number, paired_record

Description

Reply to the Read_Paired_Device_Information command.

Event Parameters

paired_device_number (Size: 1 octet)

Value	Parameter Description
0xXX	Paired device number.

paired_record (Size: (8*total_record) octets)

Value	Parameter Description
byte0	Link priority: 1 is the highest (Newest device) and 4 (Or 8) is the lowest (Oldest device).
byte1	bond_flag: Bit0: HFP or HSP profile bond. Bit1: A2DP profile bond. Bit2: SPP or IAP profile bond. Bit3: Reserved for PBAP. Bit4: Remote device supports content protection. Bit5: Remote device supports delay report. Bit6: Link key type is authenticated type. Bit7: Reserved.
byte2~byte7	Linked device Bluetooth address.

ACI_EVENT_LEGACY_DATA_TRANSFER

Command	Opcode	Event Parameters
ACI_EVENT_LEGACY_DATA_TRANSFER	0x0002	link_id, payload_length, payload

Description

Report SPP data to the MCU host.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	Link_id, this index will be informed when the link is established (ACI_EVENT_PROFILE_CONN_STATUS).

payload_length (Size: 2 octets)

Value	Parameter Description
0xXXXX	Payload length in this packet.

payload (Size: N octets)

Value	Parameter Description
N octets	Payload in this packet.

ACI_EVENT_PROFILE_CONN_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_PROFILE_CONN_STATUS	0x0003	link_id, connect_status, address

Description

Report the current Bluetooth profiles connect status.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	Bluetooth profile link ID.

connect_status (Size: 4 octets)

Value	Parameter Description
0x00	Reserved.
0x00000001	A2DP_SINK_PROFILE_MASK
0x00000002	AVRCP_CONTROLLER_PROFILE_MASK
0x00000004	HFP_HF_PROFILE_MASK
0x00000080	HSP_AG_PROFILE_MASK
0x00000200	MAP_MSE_PROFILE_MASK
0x00000400	A2DP_SRC_PROFILE_MASK
0x00000800	AVRCP_TARGET_PROFILE_MASK
0x00001000	HFP_AG_PROFILE_MASK
0x00002000	PBAP_PSE_PROFILE_MASK
0x00004000	HSP_HF_PROFILE_MASK

address (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	The remote device Bluetooth address.

ACI_EVENT_PROFILE_CONNECT_FAIL_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_PROFILE_CONNECT_FAIL_STATUS	0x0004	link_id, disconnect_status, address, cause

Description

Report the Bluetooth profile’s disconnect status.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	Bluetooth profile link ID.

disconnect_status (Size: 4 octets)

Value	Parameter Description
0x00	Reserved.
0x00000001	A2DP_SINK_PROFILE_MASK
0x00000002	AVRCP_CONTROLLER_PROFILE_MASK
0x00000004	HFP_HF_PROFILE_MASK
0x00000080	HSP_AG_PROFILE_MASK
0x00000200	MAP_MSE_PROFILE_MASK
0x00000400	A2DP_SRC_PROFILE_MASK
0x00000800	AVRCP_TARGET_PROFILE_MASK
0x00001000	HFP_AG_PROFILE_MASK
0x00002000	PBAP_PSE_PROFILE_MASK
0x00004000	HSP_HF_PROFILE_MASK

address (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	The remote device Bluetooth address.

cause (Size: 2 octets)

Value	Parameter Description
0xXX	Reason for disconnect.

ACI_EVENT_HFP_CALLER_ID

Event	Opcode	Event Parameters
ACI_EVENT_HFP_CALLER_ID	0x0005	reserved, type, length, string

Description

Report the caller’s phone number and the caller’s name.

Event Parameters

reserved (Size: 1 octet)

Value	Parameter Description
0xFF	Reserved.

type (Size: 1 octet)

Value	Parameter Description
0x00	Caller phone number.
0x01	Caller name.
Others	Reserved.

length (Size: 1 octet)

Value	Parameter Description
0xXX	Length of caller ID unit in byte.

string (Size: N octets)

Value	Parameter Description
N octets	Caller ID. If the type is number, the encoder is ASCII, if the type is name, the encoder is UTF-8.

ACI_EVENT_AUDIO_DEVICE_STATE

Event	Opcode	Event Parameters
ACI_EVENT_AUDIO_DEVICE_STATE	0x0007	state

Description

Report the device state.

Event Parameters

state (Size: 1 octet)

Value	Parameter Description
0x00	APP_STATE_OFF
0x01	APP_STATE_ON
0x02	APP_DEVICE_STATE_OFF_ING
Others	Reserved.

ACI_EVENT_BR_REMOTE_NAME

Event	Opcode	Event Parameters
ACI_EVENT_BR_REMOTE_NAME	0x0009	status, bd_addr, name

Description

Report the remote device name when Bluetooth connected.

Event Parameters

status (Size: 1 octet)

Value	Parameter Description
0x00	Success.
Others	Fail.

bd_addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Remote device address with low byte first.

name (Size: N octets)

Value	Parameter Description
N octets	UTF-8 string with NULL terminate.

ACI_EVENT_HFP_CALL_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_HFP_CALL_STATUS	0x000A	bd_addr, prev_status, curr_status

Description

Report the call status of the connected device.

Event Parameters

bd_addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	MAC address of the remote connected device whose call status has changed.

prev_status (Size: 1 octet)

Value	Parameter Description
0x00	CALL_IDLE
0x01	VOICE_ACTIVATION_ONGOING
0x02	INCOMING_CALL_ONGOING
0x03	OUTGOING_CALL_ONGOING
0x04	CALL_ACTIVE
0x05	CALL_ACTIVE_WITH_CALL_WAITING
0x06	CALL_ACTIVE_WITH_CALL_HOLD
Others	Reserved.

curr_status (Size: 1 octet)

Value	Parameter Description
0x00	CALL_IDLE
0x01	VOICE_ACTIVATION_ONGOING
0x02	INCOMING_CALL_ONGOING
0x03	OUTGOING_CALL_ONGOING
0x04	CALL_ACTIVE
0x05	CALL_ACTIVE_WITH_CALL_WAITING
0x06	CALL_ACTIVE_WITH_CALL_HOLD
Others	Reserved.

ACI_EVENT_AUDIO_PLAYER_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_AUDIO_PLAYER_STATUS	0x000B	reserved, status, reserved

Description

Report the current play status.

Event Parameters

reserved (Size: 6 octets)

Value	Parameter Description
0xXX	Reserved.

status (Size: 1 octet)

Value	Parameter Description
0x00	Stop.
0x01	Playing.
0x02	Paused.

reserved (Size: 1 octet)

Value	Parameter Description
0xXX	Reserved.

ACI_EVENT_VOLUME_SYNC

Event	Opcode	Event Parameters
ACI_EVENT_VOLUME_SYNC	0x0013	address, volume

Description

Report volume setting to sync with the remote device during calls.

Event Parameters

address (Size: 6 octets)

Value	Parameter Description
0xXX	The remote device Bluetooth address.

volume (Size: 1 octet)

Value	Parameter Description
0xXX	HFP volume.

ACI_EVENT_BR_LINK_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_BR_LINK_STATUS	0x0014	link_state, bd_addr, link_id, conn_handle

Description

Report ACL link status to MCU.

Event Parameters

link_state (Size: 1 octet)

Value	Parameter Description
0x00	LINK_STATE_STANDBY
0x01	LINK_STATE_CONNECTED
0x02	LINK_STATE_LOST
0x03	LINK_STATE_CONN_FAIL
0x04	LINK_STATE_KEY_MISSING
0x05	LINK_STATE_AUTHENTIC_FAIL

bd_addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Remote device address.

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer link ID for BR/EDR link.

conn_handle (Size: 2 octets)

Value	Parameter Description
0xXXXX	It starts from 0x0001. For only one BR/EDR link, it will be 0x0001.

ACI_EVENT_REPORT_CFG_TYPE

Event	Opcode	Event Parameters
ACI_EVENT_REPORT_CFG_TYPE	0x0018	get_type, name_len, name

Description

Report configuration settings.

Event Parameters

get_type (Size: 1 octet)

Value	Parameter Description
0x00	LE name.
0x01	Legacy name.

name_len (Size: 1 octet)

Value	Parameter Description
0xXX	Name length.

name (Size: name_len octets)

Value	Parameter Description
0xXX	Name payload.

ACI_EVENT_REPORT_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_REPORT_STATUS	0x0019	status_index, status_value0, status_value1, …

Description

Report status information.

Event Parameters

status_index (Size: 1 octet)

Value	Parameter Description
0xA1	Volume.

volume (Size: 1 octet)

Value	Parameter Description
0xXX	0~maximum gain.

maximum gain (Size: 1 octet)

Value	Parameter Description
0xXX	Maximum gain.

ACI_EVENT_GET_BD_ADDR

Event	Opcode	Event Parameters
ACI_EVENT_GET_BD_ADDR	0x001A	bd_addr

Description

Report the Bluetooth device address.

Event Parameters

bd_addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Bluetooth address.

ACI_EVENT_REPORT_DLPS_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_REPORT_DLPS_STATUS	0x001C	dlps_status

Description

Report DLPS status.

Event Parameters

dlps_status (Size: 1 octet)

Value	Parameter Description
0x00	DLPS disabled.
0x01	DLPS enabled.

ACI_EVENT_REPORT_KEY_ACTION

Event	Opcode	Event Parameters
ACI_EVENT_REPORT_KEY_ACTION	0x001D	key_mask, scenario, action

Description

Report GPIO key action.

Event Parameters

key_mask (Size: 1 octet)

Value	Parameter Description
0xXX	Bit mask: 0x01: KEY0_MASK. 0x02: KEY1_MASK. 0x04: KEY2_MASK. 0x08: KEY3_MASK. 0x10: KEY4_MASK. 0x20: KEY5_MASK. 0x40: KEY6_MASK. 0x80: KEY7_MASK.

scenario (Size: 1 octet)

Value	Parameter Description
0xXX	0x00: Short click. 0x01: Long press. 0x03: 2 clicks. 0x04: 3 clicks. 0x05: 4 clicks. 0x06: 5 clicks.

action (Size: 1 octet)

Value	Parameter Description
0xXX	MMI action.

ACI_EVENT_AUDIO_VOL_CHANGE

Event	Opcode	Event Parameters
ACI_EVENT_AUDIO_VOL_CHANGE	0x0020	status, current_vol

Description

Report volume change information to the remote device.

Event Parameters

status (Size: 1 octet)

Value	Parameter Description
0x00	VolChange_None
0x01	VolChange_Up
0x02	VolChange_Down
0x03	VolChange_Max
0x04	VolChange_Min

current_vol (Size: 1 octet)

Value	Parameter Description
0xXX	Current volume.

ACI_EVENT_BT_READY

Event	Opcode	Event Parameters
ACI_EVENT_BT_READY	0x0023	bd_addr

Description

Report both Bluetooth and Bluetooth LE stacks are checked ready.

Event Parameters

bd_addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Bluetooth address.

ACI_EVENT_BR_INQUIRY_STATE

Event	Opcode	Event Parameters
ACI_EVENT_BR_INQUIRY_STATE	0x0025	state

Description

Report the inquiry state.

Event Parameters

state (Size: 1 octet)

Value	Parameter Description
0x00	Inquiry process has been completed.
0x01	Inquiry process has been canceled.
0x02	Inquiry process contains a valid inquiry result.
0x03	Inquiry process failed.

ACI_EVENT_SERVICES_SEARCH_STATE

Event	Opcode	Event Parameters
ACI_EVENT_SERVICES_SEARCH_STATE	0x0026	state, bd_addr

Description

Report the service search state.

Event Parameters

state (Size: 1 octet)

Value	Parameter Description
0x00	Service search process success.
0x01	Service search process fail.
0x02	Service search process stop.

bd_addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Bluetooth address.

ACI_EVENT_BR_INQUIRY_RESULT

Event	Opcode	Event Parameters
ACI_EVENT_BR_INQUIRY_RESULT	0x002B	bd_addr, cod, name_len, name

Description

Report inquiry results.

Event Parameters

bd_addr (Size: 6 octets)

Value	Parameter Description
0xXX	MAC address of inquired device.

cod (Size: 4 octets)

Value	Parameter Description
0xXX	Class of device.

name_len (Size: 1 octet)

Value	Parameter Description
0xXX	Length of the inquired device.

name (Size: name_len octets)

Value	Parameter Description
0xXX	Device name of the inquired device.

ACI_EVENT_LE_CONNECTED

Event	Opcode	Event Parameters
ACI_EVENT_LE_CONNECTED	0x0100	link_id

Description

Indicates LE link connected.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

ACI_EVENT_LE_DISCONNECTED

Event	Opcode	Event Parameters
ACI_EVENT_LE_DISCONNECTED	0x0101	link_id, result_code

Description

Indicates LE link disconnection.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

result_code (Size: 2 octets)

Value	Parameter Description
0xXXXX	Disconnect cause.

ACI_EVENT_LE_PAIR_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_LE_PAIR_STATUS	0x0102	link_id, status

Description

Indicate LE link pair status.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP link ID for LE link.

status (Size: 2 octets)

Value	Parameter Description
0x00	Success.
Others	Fail.

ACI_EVENT_LE_VENDOR_DATA_TRANSFER

Command	Opcode	Event Parameters
ACI_EVENT_LE_VENDOR_DATA_TRANSFER	0x0103	link_id, pkt_type, total_length, payload_length, payload

Description

Send data to SPP by LE link.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	Link_id, the identifier for LE link.

type (Size: 1 octet)

Value	Parameter Description
0x00	Single packet.
0x02	Fragmented continue packet.
0x03	Fragmented end packet.

total_length (Size: 2 octets)

Value	Parameter Description
0xXXXX	Total payload length.

payload_length (Size: 2 octets)

Value	Parameter Description
0xXXXX	Payload length in this packet.

payload (Size: payload_length octets)

Value	Parameter Description
N octet	Payload in this packet.

ACI_EVENT_ANCS_REGISTER_COMPLETE

Event	Opcode	Event Parameters
ACI_EVENT_ANCS_REGISTER_COMPLETE	0x0110	link_id, result

Description

Inform the ANCS discovery completed.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

result (Size: 1 octet)

Value	Parameter Description
0x00	Register success.

ACI_EVENT_ANCS_NOTIFICATION

Event	Opcode	Event Parameters
ACI_EVENT_ANCS_NOTIFICATION	0x0111	link_id, ancs_data_type, pkt_type, total len, pkt_len, pkt_data

Description

Send the ANCS notification data.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

ancs_data_type (Size: 1 octet)

Value	Parameter Description
0x00	ANCS_FROM_DATA_SOURCE
0x01	ANCS_FROM_NOTIFICATION_SOURCE

pkt_type (Size: 1 octet)

Value	Parameter Description
0x00	PKT_TYPE_SINGLE
0x01	PKT_TYPE_START
0x02	PKT_TYPE_CONT
0x03	PKT_TYPE_END

total len (Size: 2 octets)

Value	Parameter Description
0xXXXX	Total len.

pkt_len (Size: 2 octets)

Value	Parameter Description
0xXXXX	pkt_len

pkt_data (Size: 2 octets)

Value	Parameter Description
0xXX, …	pkt_data

ACI_EVENT_ANCS_ACTION_RESULT

Event	Opcode	Event Parameters
ACI_EVENT_ANCS_ACTION_RESULT	0x0112	link_id, cause

Description

Inform the action result.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

cause (Size: 1 octet)

Value	Parameter Description
0x00	Success.
0x4A0	Command ID was not recognized by the NP.
0x4A1	Command was improperly formatted.
0x4A2s	One of the parameters (For example, the NotificationUID) does not refer to an existing object on the NP.
0x4A3	The action was not performed.

ACI_EVENT_AMS_ENTITY_UPD_NOTIFY

Event	Opcode	Event Parameters
ACI_EVENT_AMS_ENTITY_UPD_NOTIFY	0x0121	link_id, pkt_type, total len, pkt_len, pkt_data

Description

Notify the entity to update data.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

pkt_type (Size: 1 octet)

Value	Parameter Description
0x00	PKT_TYPE_SINGLE
0x01	PKT_TYPE_START
0x02	PKT_TYPE_CONT
0x03	PKT_TYPE_END

total len (Size: 2 octets)

Value	Parameter Description
0xXXXX	Total len.

pkt_len (Size: 2 octets)

Value	Parameter Description
0xXXXX	pkt_len

pkt_data (Size: 2 octets)

Value	Parameter Description
0xXX, …	pkt_data

ACI_EVENT_AMS_ENTITY_UPD_NOTIFY_EN

Event	Opcode	Event Parameters
ACI_EVENT_AMS_ENTITY_UPD_NOTIFY_EN	0x0122	link_id

Description

Entity update notification was enabled.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

ACI_EVENT_AMS_REMOTE_CMD_NOTIFY

Event	Opcode	Event Parameters
ACI_EVENT_AMS_REMOTE_CMD_NOTIFY	0x0123	link_id, pkt_type, total len, pkt_len, pkt_data

Description

Notify the remote CMD data.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

pkt_type (Size: 1 octet)

Value	Parameter Description
0x00	PKT_TYPE_SINGLE
0x01	PKT_TYPE_START
0x02	PKT_TYPE_CONT
0x03	PKT_TYPE_END

total len (Size: 2 octets)

Value	Parameter Description
0xXXXX	Total len.

pkt_len (Size: 2 octets)

Value	Parameter Description
0xXXXX	pkt_len

pkt_data (Size: 2 octets)

Value	Parameter Description
0xXX, …	pkt_data

ACI_EVENT_AMS_REMOTE_CMD_NOTIFY_EN

Event	Opcode	Event Parameters
ACI_EVENT_AMS_REMOTE_CMD_NOTIFY_EN	0x0124	link_id

Description

This event means the remote command notification is enabled.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

ACI_EVENT_LE_AUDIO_SCAN_INFO

Event	Opcode	Event Parameters
ACI_EVENT_LE_AUDIO_SCAN_INFO	0x0140	event_type, addr_type, addr, name_len, name

Description

Report advertisements from devices supporting LE Audio.

Event Parameters

event_type (Size: 2 octets)

Value	Parameter Description
0xXXXX	Reported ADV type.

addr_type (Size: 1 octet)

Value	Parameter Description
0xXX	Advertiser address type.

addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Advertiser address.

name_len (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Length of advertiser name.

name (Size: 40 octets)

Value	Parameter Description
0xXX, …	Advertiser name.

ACI_EVENT_LE_AUDIO_BAP_STATE

Event	Opcode	Event Parameters
ACI_EVENT_LE_AUDIO_BAP_STATE	0x0141	group_handle, state

Description

Report BAP state.

Event Parameters

group_handle (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	Group handle.

state (Size: 1 octet)

Value	Parameter Description
0xXX	BAP streaming state.

ACI_EVENT_LE_AUDIO_BAP_DISCOVERY_DONE

Event	Opcode	Event Parameters
ACI_EVENT_LE_AUDIO_BAP_DISCOVERY_DONE	0x0142	link_id

Description

Indicates the BAP related info has been completely discovered.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	Link ID.

ACI_EVENT_LE_AUDIO_CSIS_SCAN_STATE

Event	Opcode	Event Parameters
ACI_EVENT_LE_AUDIO_CSIS_SCAN_STATE	0x0143	group_handle, state

Description

Reports the group scan state of the group handle.

Event Parameters

group_handle (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	Group handle.

state (Size: 1 octet)

Value	Parameter Description
0x00	Scan stopped.
0x01	Scan started.

ACI_EVENT_LE_AUDIO_ADD_GROUP

Event	Opcode	Event Parameters
ACI_EVENT_LE_AUDIO_ADD_GROUP	0x0144	group_handle_count

Description

Report the count of group handles.

Event Parameters

group_handle_count (Size: 1 octet)

Value	Parameter Description
0xXX	The count of group handles.

ACI_EVENT_LE_AUDIO_ADD_SYNC_HANDLE

Event	Opcode	Event Parameters
ACI_EVENT_LE_AUDIO_ADD_SYNC_HANDLE	0x0145	sync_handle_count

Description

Report the count of sync handles.

Event Parameters

sync_handle_count (Size: 1 octet)

Value	Parameter Description
0xXX	The count of sync handles.

ACI_EVENT_LE_AUDIO_BAAS_SCAN_INFO

Event	Opcode	Event Parameters
ACI_EVENT_LE_AUDIO_BAAS_SCAN_INFO	0x0146	scan_baas_dev_count, addr_type, addr, name_len, name

Description

Report advertisement information of BAAS scan.

Event Parameters

scan_baas_dev_count (Size: 2 octets)

Value	Parameter Description
0xXXXX	Device count of BAAS scan.

addr_type (Size: 1 octet)

Value	Parameter Description
0xXX	Advertiser address type.

addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Advertiser address.

name_len (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Length of advertiser name.

name (Size: 40 octet)

Value	Parameter Description
0xXX, …	Advertiser name.

ACI_EVENT_LE_AUDIO_PA_SYNC_STATE

Event	Opcode	Event Parameters
ACI_EVENT_LE_AUDIO_PA_SYNC_STATE	0x0147	sync_state

Description

Report PA sync state.

Event Parameters

sync_state (Size: 1 octet)

Value	Parameter Description
0x04	GAP_PA_SYNC_STATE_SYNCHRONIZED
0x05	GAP_PA_SYNC_STATE_TERMINATING

ACI_EVENT_SCO_STATE

Event	Opcode	Event Parameters
ACI_EVENT_SCO_STATE	0x0300	connect_status, address

Description

Report SCO connect state.

Event Parameters

connect_status (Size: 1 octet)

Value	Parameter Description
0x00	SCO connect indication.
0x01	SCO link established.
0x02	SCO link disconnect.

address (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	The remote device Bluetooth address.

ACI_EVENT_CALL_WAITING

Event	Opcode	Event Parameters
ACI_EVENT_CALL_WAITING	0x0301	num_len, number

Description

Report the third call information (Can add other info if needed).

Event Parameters

num_len (Size: 1 octet)

Value	Parameter Description
num_len	Number length.

number (Size: num_len * 1 octet)

Value	Parameter Description
0x00…	Caller phone number.

ACI_EVENT_SUBSCRIBER_NUMBER

Event	Opcode	Event Parameters
ACI_EVENT_SUBSCRIBER_NUMBER	0x0306	service, type, num_len, number

Description

Report local phone information.

Event Parameters

service (Size: 1 octet)

Value	Parameter Description
0xXX	Service.

type (Size: 1 octet)

Value	Parameter Description
0xXX	Type.

num_len (Size: 1 octet)

Value	Parameter Description
0xXX	Length of phone number.

number (Size: N octets)

Value	Parameter Description
N octets	Caller number.

ACI_EVENT_CURRENT_CALLS

Event	Opcode	Event Parameters
ACI_EVENT_CURRENT_CALLS	0x0307	call_idx, dir_incoming, status, mode, mpty, type, num_len, number

Description

Report current call info.

Event Parameters

call_idx (Size: 1 octet)

Value	Parameter Description
0xXX	call_idx

dir_incoming (Size: 1 octet)

Value	Parameter Description
0x00	Outgoing.
0x01	Incoming.

status (Size: 1 octet)

Value	Parameter Description
0x00	Active.
0x01	Held.
0x02	Dialing.
0x03	Alerting.
0x04	Incoming.
0x05	Waiting.
0x06	Call held by response and hold.

mode (Size: 1 octet)

Value	Parameter Description
0x00	Voice.
0x01	Data.
0x03	Fax.

mpty (Size: 1 octet)

Value	Parameter Description
0x00	Call is not a member of a multi-party call.
0x01	Call is a member of a multi-party call.

type (Size: 1 octet)

Value	Parameter Description
0xXX	Type.

num_len (Size: 1 octet)

Value	Parameter Description
0xXX	num_len

number (Size: N octets)

Value	Parameter Description
N octets	Number.

ACI_EVENT_DTMF

Event	Opcode	Event Parameters
ACI_EVENT_DTMF	0x0308	Vchar

Description

Report the key value entered by the user.

Event Parameters

Vchar (Size: 1 octet)

Value	Parameter Description
0xXX	Vchar.

ACI_EVENT_HFP_AG_CONN_CMPL

Event	Opcode	Event Parameters
ACI_EVENT_HFP_AG_CONN_CMPL	0x0381	bd_addr

Description

Report the key value entered by the user.

Event Parameters

bd_addr (Size: 6 octets)

Value	Parameter Description
0xXX	MAC address of HFP AG connection.

ACI_EVENT_HFP_AG_SUPPORTED_FEATURES

Event	Opcode	Event Parameters
ACI_EVENT_HFP_AG_SUPPORTED_FEATURES	0x0389	link_id, feature_bitmap

Description

This event is used to describe the HFP AG support features.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for BR/EDR link.

feature_bitmap (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	HFP AG support features.

ACI_EVENT_HFP_AG_CURR_CALLS_LIST_QUERY

Event	Opcode	Event Parameters
ACI_EVENT_HFP_AG_CURR_CALLS_LIST_QUERY	0x038D	link_id

Description

Report the current calls list query.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for BR/EDR link.

ACI_EVENT_HFP_AG_NETWORK_NAME_FORMAT_SET

Event	Opcode	Event Parameters
ACI_EVENT_HFP_AG_NETWORK_NAME_FORMAT_SET	0x0396	link_id

Description

Report the network name format set.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for BR/EDR link.

ACI_EVENT_DFU_START_RSP

Event	Opcode	Event Parameters
ACI_EVENT_DFU_START_RSP	0x3160	status

Description

Accept or reject DFU request.

Event Parameters

status (Size: 1 octet)

Value	Parameter Description
0x00	UART_DFU_REJECT
0x01	UART_DFU_ACCEPT

ACI_EVENT_DFU_DATA_REQ

Event	Opcode	Event Parameters
ACI_EVENT_DFU_DATA_REQ	0x3161	offset, length

Description

Request specific DFU data.

Event Parameters

offset (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	next_block_offset

length (Size: 2 octets)

Value	Parameter Description
0xXX	next_block_length

ACI_EVENT_DFU_RESULT

Event	Opcode	Event Parameters
ACI_EVENT_DFU_RESULT	0x3162	result

Description

Report DFU result.

Event Parameters

result (Size: 1 octet)

Value	Parameter Description
0x00	UART_DFU_FAIL
0x01	UART_DFU_SUCCESS

ACI_EVENT_DFU_LOCAL_VERSION

Event	Opcode	Event Parameters
ACI_EVENT_DFU_LOCAL_VERSION	0x3163	local_version

Description

Report device’s local version.

Event Parameters

local_version (Size: 1 octet)

Value	Parameter Description
0xXXXXXXXX	Version.

ACI_APP_EVENT_TRI_DONGLE_EVENT_REPORT

Event	Opcode	Event Parameters
ACI_APP_EVENT_TRI_DONGLE_EVENT_REPORT	0x0A0E	sub_report_event_id, sub_event_report_parameters

Description

Report event related to Tri dongle.

Event Parameters

sub_report_event_id (Size: 1 octet)

Value	Parameter Description
0x00	LE scan report.
0x01	BR scan report.
0x02	LE BAS not support report.
0x03	LE RSSI not support report.
0x04	LE DIS info report.
0x05	LE BAS info report.
0x06	HF battery info report.
0x07	Connected LE link info report.
0x08	Connected BR link info report.
0x09	LE connection info report.
0x0A	PASSKEY value report.
0x0B	LE RSSI info report.
0x0C	BR RSSI info report.
0x0D	LE scan status report.
0x0E	BR inquiry scan status report.
0x0F	USB reset status report.
0x10	PASSKEY status report.
0x11	ACL authen success report.
0x12	LE bond list report.
0x13	LE DIS not support report.
0x14	LE DIS SYSTEM info report.
0x15	LE DIS PNP info report.
0x16	BR bond list report.
0x17	BR RSSI not support report.

sub_event_report_parameters (Size: 50 octets)

Sub_report_event_id	Sub Event Report Parameter Description
0x00 LE scan report	bd_addr (6 octets, Little-Endian), RSSI (1 octet), le_addr_type (1 octet), device_type_len (1 octet), device_type (2 octets, Little-Endian, 03C1 = Keyboard, 03C2 = Mouse), name_len (1 octet), name (correspond to name len)
0x01 BR scan report	bd_addr (6 octets, Little-Endian), RSSI (1 octet), name_len (1 octet), name (correspond to name len)
0x02 LE BAS not support report	bd_addr (6 octets for 1 Device)
0x03 LE RSSI not support report	bd_addr (6 octets for 1 Device)
0x04 LE DIS info report	UUID (2 octets, Little-Endian), bd_addr (6 octets for 1 Device), dis_info_len (2 octets, Little-Endian), dis_info (correspond to dis_info len)
0x05 LE BAS info report	battery_level (1 octet), bd_addr (6 octets for 1 Device)
0x06 HF battery info report	battery_level (1 octet), bd_addr (6 octets for 1 Device)
0x07 Connected LE link info report	Connected_LE_link_num (1 octet), bd_addr (6 octets for 1 Device, if has multiple devices connected, the next device bd_addr will append after)
0x08 Connected BR link info report	Connected_BR_link_num (1 octet), bd_addr (6 octets)
0x09 LE connection info report	LE connection status (1 octet, 0 = disconnect, 1 = connected), bd_addr (6 octets)
0x0A LE PAIR PASSKEY info report	PASSKEY INFO (3 octets, Little-Endian)
0x0B LE RSSI info report	RSSI (1 octet), bd_addr (6 octets for 1 Device)
0x0C BR RSSI info report	RSSI (1 octet), bd_addr (6 octets for 1 Device)
0x0D LE scan status report	status (1 octet, 0 = stop, 1 = start)
0x0E BR inquiry scan status report	status (1 octet, 0 = stop, 1 = start)
0x0F USB reset status report	status (1 octet, 0 = ready, 1 = reset)
0x10 PASSKEY status report	status (1 octet, 0 = disable, 1 = enable)
0x11 ACL authen success report	bd_addr (6 octets for 1 Device), link_id (1 octet), conn_handle (2 octets)
0x12 LE bond list report	LE device number (1 octet)
0x13 LE DIS not support report	UUID (2 octets, Little-Endian), bd_addr (6 octets for 1 Device)
0x14 LE DIS SYSTEM info report	UUID (2 octets, Little-Endian), bd_addr (6 octets for 1 Device), dis_system_len (2 octets, Little-Endian), mid (5 octets), oui (3 octets)
0x15 LE DIS PNP info report	UUID (2 octets, Little-Endian), bd_addr (6 octets for 1 Device), dis_pnp_len (2 octets, Little-Endian), vendor_id (2 octets), product_id (2 octets), product_version (2 octets), vendor_id_source (1 octet)
0x16 BR bond list report	BR device number (1 octet), bd_addr (6 octets for 1 Device, if has multiple devices connected, the next device bd_addr will append after)
0x17 BR RSSI not support report	bd_addr (6 octets for 1 Device)

ACI_APP_EVENT_CCP_CALL_STATUS

Event	Opcode	Event Parameters
ACI_APP_EVENT_CCP_CALL_STATUS	0x3252	conn_id, call_status

Description

Report the device current call status.

Event Parameters

conn_id (Size: 1 octet)

Value	Parameter Description
0xxx	Connect ID.

call_status (Size: 1 octet)

Value	Parameter Description
0x00	APP_CALL_IDLE
0x01	APP_VOICE_ACTIVATION_ONGOING
0x02	APP_CALL_INCOMING
0x03	APP_CALL_OUTGOING
0x04	APP_CALL_ACTIVE
0x05	APP_CALL_ACTIVE_WITH_CALL_WAITING
0x06	APP_CALL_ACTIVE_WITH_CALL_HELD
0x07	APP_MULTILINK_CALL_ACTIVE_WITH_CALL_WAIT
0x08	APP_MULTILINK_CALL_ACTIVE_WITH_CALL_HELD

ACI_APP_EVENT_MCP_MEDIA_STATE

Event	Opcode	Event Parameters
ACI_APP_EVENT_MCP_MEDIA_STATE	0x3253	conn_id, media_state

Description

Report the device current media state.

Event Parameters

conn_id (Size: 1 octet)

Value	Parameter Description
0xxx	Connect ID.

media_state (Size: 1 octet)

Value	Parameter Description
0x00	MCS_MEDIA_STATE_INACTIVE
0x01	MCS_MEDIA_STATE_PLAYING
0x02	MCS_MEDIA_STATE_PAUSED
0x03	MCS_MEDIA_STATE_SEEKING

ACI_APP_EVENT_VCS_STATE

Event	Opcode	Event Parameters
ACI_APP_EVENT_VCS_STATE	0x3253	vol_setting, mute

Description

Report the device current audio volume.

Event Parameters

vol_setting (Size: 1 octet)

Value	Parameter Description
0xXX	Current volume value of the audio.

mute (Size: 1 octet)

Value	Parameter Description
0x00	SPK unmute state.
0x01	SPK mute state.

ACI_EVENT_BT_BOND_INFO_CLEAR

Event	Opcode	Event Parameters
ACI_EVENT_BT_BOND_INFO_CLEAR	0x0904	status

Description

Return the result of clearing the link keys of the target remote connection.

Event Parameters

status (Size: 1 octet)

Value	Parameter Description
0x00	Clear link keys successful.
0x01	Fail to clear link keys, or if there are no link keys, the device will return fail if still using clear band info CMD.

ACI_EVENT_FW_VERSION

Event	Opcode	Event Parameters
ACI_EVENT_FW_VERSION	0x0909	fw_version

Description

Report firmware version information.

Event Parameters

app (Size: 5 octets)

Value	Parameter Description
0xXXXXXXXXXX	APP version.

patch (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	Patch version.

app_ui (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	APP UI version.

ACI_EVENT_REPORT_PACKAGE_ID

Event	Opcode	Event Parameters
ACI_EVENT_REPORT_PACKAGE_ID	0x0911	chip_id, package_id

Description

Report chip ID and package ID.

Event Parameters

chip_id (Size: 1 octet)

Value	Parameter Description
0x1B	RTL87x3E.

package_id (Size: 1 octet)

Value	Parameter Description
0x04	Reserved.

ACI_EVENT_REQ_MEDIA_FRAME

Event	Opcode	Event Parameters
ACI_EVENT_REQ_MEDIA_FRAME	0x5001	audio_queue_state, water_level

Description

Report SCO connect state.

Event Parameters

audio_queue_state (Size: 1 octet)

Value	Parameter Description
0x00	STATE_PRELOAD
0x01	STATE_CONSUME
0x02	STATE_CHARGE
0x03	STATE_OFFLOAD
0x04	STATE_EMPTY

water_level (Size: 2 octets)

Value	Parameter Description
0xXXXX	Counts of buffered frames.

ACI_EVENT_XM_SPP_DATA_TRANSFER

Command	Opcode	Event Parameters
ACI_EVENT_XM_SPP_DATA_TRANSFER	0x8000	link_id, payload_length, payload

Description

This command is used to report vendor SPP data to the MCU host.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for BR/EDR link.

payload_length (Size: 2 octets)

Value	Parameter Description
0xXXXX	Payload length in this packet.

payload (Size: N octets)

Value	Parameter Description
N octets	Payload in this packet.

ACI_EVENT_XM_SPP_CONNECT_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_XM_SPP_CONNECT_STATUS	0x8001	connect_status, address

Description

Report vendor SPP connect status.

Event Parameters

connect_status (Size: 1 octet)

Value	Parameter Description
0x00	Reserved.
0x10	VENDOR_SPP_PROFILE_MASK

address (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	The remote device Bluetooth address.

ACI_EVENT_XM_SPP_DISCONNECT_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_XM_SPP_DISCONNECT_STATUS	0x8002	disconnect_status, address, cause

Description

Report vendor SPP disconnect status.

Event Parameters

disconnect_status (Size: 1 octet)

Value	Parameter Description
0x00	Reserved.
0x10	VENDOR_SPP_PROFILE_MASK

address (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	The remote device Bluetooth address.

cause (Size: 2 octets)

Value	Parameter Description
0xXX	Reason of disconnect.

ACI_EVENT_XM_LE_ADV_STATE

Event	Opcode	Event Parameters
ACI_EVENT_XM_LE_ADV_STATE	0x8040	adv_state, adv_stop_cause

Description

Report LE advertising state, adv_stop_cause only valid when adv_state is 0x00.

Event Parameters

adv_state (Size: 1 octet)

Value	Parameter Description
0x00	Advertising disabled.
0x01	Advertising enabled.

adv_stop_cause (Size: 1 octet)

Value	Parameter Description
0x00	LE ADV stop cause UNKNOWN.
0x01	LE ADV stop cause APP, user terminate ADV.
0x02	LE ADV stop cause CONN, connection establish.
0x03	LE ADV stop cause TIMEOUT, ADV timeout.
0x04	LE ADV stop cause ENABLE_FAILED, ADV enable failed.

ACI_EVENT_XM_LE_ATT_MTU

Event	Opcode	Event Parameters
ACI_EVENT_XM_LE_ATT_MTU	0x8041	mtu_size

Description

Report LE ATT MTU size, only valid when LE is connected.

Event Parameters

mtu_size (Size: 2 octets)

Value	Parameter Description
0xXX	LE ATT MTU size.

ACI_EVENT_XM_LE_ADDR

Event	Opcode	Event Parameters
ACI_EVENT_XM_LE_ADDR	0x8042	le_addr

Description

Report the LE address.

Event Parameters

le_addr (Size: 6 octets)

Value	Parameter Description
0xXX	LE address.

ACI_EVENT_XM_LE_CON_STATE

Event	Opcode	Event Parameters
ACI_EVENT_XM_LE_CON_STATE	0x8043	conn_state, link_id, conn_handle, role, remote_type, remote_addr, connInterval, connLatency, supTimeout

Description

Report LE connect state after LE is connected.

Event Parameters

conn_state (Size: 1 octet)

Value	Parameter Description
0x00	LE_LINK_STATE_DISCONNECTED
0x01	LE_LINK_STATE_CONNECTING
0x02	LE_LINK_STATE_CONNECTED
0x03	LE_LINK_STATE_DISCONNECTING

link_id (Size: 1 octet)

Value	Parameter Description
0xxx	APP layer ID for LE link.

conn_handle (Size: 2 octets)

Value	Parameter Description
0xXXXX	It starts from 0x0013. For only one LE link, it will be 0x0013.

role (Size: 1 octet)

Value	Parameter Description
0x00	GAP_LINK_ROLE_UNDEFINED
0x01	GAP_LINK_ROLE_MASTER
0x02	GAP_LINK_ROLE_SLAVE

remote_type (Size: 1 octet)

Value	Parameter Description
0x00	GAP_LINK_ROLE_UNDEFINED
0x01	GAP_LINK_ROLE_MASTER
0x02	GAP_LINK_ROLE_SLAVE

remote_addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Remote device address.

connInterval (Size: 2 octets)

Value	Parameter Description
0xXXXX	LE preferred connection interval to conn_interval * 1.25 ms, little endian.

connLatency (Size: 2 octets)

Value	Parameter Description
0xXXXX	LE preferred connection latency to conn_latency, little endian.

supTimeout (Size: 2 octets)

Value	Parameter Description
0xXXXX	LE preferred connection supervision timeout to conn_supervision_timeout * 10ms, little endian.

ACI_EVENT_XM_LE_CON_PARAM

Event	Opcode	Event Parameters
ACI_EVENT_XM_LE_CON_PARAM	0x8044	link_id, connInterval_min, connInterval_max, connLatency, supTimeout

Description

Report the LE Parameter state after LE update parameters.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xxx	APP layer ID for LE link.

connInterval_min (Size: 2 octets)

Value	Parameter Description
0xXXXX	LE preferred connection interval to conn_interval * 1.25 ms, little endian.

connInterval_max (Size: 2 octets)

Value	Parameter Description
0xXXXX	LE preferred connection interval to conn_interval * 1.25 ms, little endian.

connLatency (Size: 2 octets)

Value	Parameter Description
0xXXXX	LE preferred connection latency to conn_latency, little endian.

supTimeout (Size: 2 octets)

Value	Parameter Description
0xXXXX	LE preferred connection supervision timeout to conn_supervision_timeout * 10ms, little endian.

ACI_EVENT_XM_GATT_CON_NOTIFY

Event	Opcode	Event Parameters
ACI_EVENT_XM_GATT_CON_NOTIFY	0x8045	conn_handle, cid, xm_service, attr_index, value

Description

Report GATT service notify state.

Event Parameters

conn_handle (Size: 2 octets)

Value	Parameter Description
0xXXXX	The connection handle from HCI (For a simple test, it is 0x01 for BR/EDR and 0x13 for LE).

cid (Size: 2 octets)

Value	Parameter Description
0xXXXX	The channel ID for corresponding L2CAP channel. For BR/EDR, it is allocated dynamically. For LE, however, it is fixed to 0x0004.

xm_service (Size: 1 octet)

Value	Parameter Description
0x00	T_DEVICE_SERVICE
0x01	T_XM_UNLOCK_SERVICE
0x02	T_XM_FACTORY_SERVICE
0x03	T_XM_SERVICE
0x04	T_XM_ALIPAY_SERVICE
0x05	T_XM_WECHAT_SERVICE
0x06	T_HID_SERVICE
0x07	T_HRS_SERVICE
0x08	T_GOODIX_SERVICE

attr_index (Size: 1 octet)

Value	Parameter Description
0xXX	Each service has its attr and show this latter.

value (Size: 1 octet)

Value	Parameter Description
0x01	Enable.
0x02	Disable.

ACI_EVENT_XM_GATT_DATA_TRANSFER

Event	Opcode	Event Parameters
ACI_EVENT_XM_GATT_DATA_TRANSFER	0x8005	conn_handle, cid, type, handle_index, total_length, payload_length, payload

Description

Report GATT data to UART.

Event Parameters

conn_handle (Size: 2 octets)

Value	Parameter Description
0xXXXX	The connection handle from HCI (For a simple test, it is 0x01 for BR/EDR and 0x13 for LE).

cid (Size: 2 octets)

Value	Parameter Description
0xXXXX	The channel ID for corresponding L2CAP channel. For BR/EDR, it is allocated dynamically. For LE, however, it is fixed to 0x0004.

type (Size: 1 octet)

Value	Parameter Description
0x00	Single packet.
0x01	Fragmented start packet.
0x02	Fragmented continue packet.
0x03	Fragmented end packet.

handle_index (Size: 1 octet)

Value	Attribute	Parameter Description
0x01	fd04	Service 02fd.
0x11	4	Service unlock.
0x12	7	Service unlock.
0x21	2	Service factory.
0x61	20	Service HID.
0x71	7	Service HRS.
0x81	2	Service goodix.

total_length (Size: 2 octets)

Value	Parameter Description
0xXXXX	Total payload length.

payload_length (Size: 2 octets)

Value	Parameter Description
0xXXXX	Payload length in this packet.

payload (Size: N octets)

Value	Parameter Description
N octets	Payload in this packet.

ACI_EVENT_XM_GATT_CREDIT_UPDATE

Event	Opcode	Event Parameters
ACI_EVENT_XM_GATT_CREDIT_UPDATE	0x8006	conn_handle, cid, credit

Description

Report GATT credit updated.

Event Parameters

conn_handle (Size: 2 octets)

Value	Parameter Description
0xXXXX	The connection handle from HCI (For a simple test, it is 0x01 for BR/EDR and 0x13 for LE).

cid (Size: 2 octets)

Value	Parameter Description
0xXXXX	The channel ID for the corresponding L2CAP channel. For BR/EDR, it is allocated dynamically. For LE, however, it is fixed to 0x0004.

credit (Size: 2 octets)

Value	Parameter Description
0xXXXX	Number of credit for GATT TX.

ACI_EVENT_XM_FACTORY_RESET_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_XM_FACTORY_RESET_STATUS	0x80c0	freset_done

Description

Report device factory reset status.

Event Parameters

freset_done (Size: 1 octet)

Value	Parameter Description
0x00	Factory reset not done.
0x01	Factory reset done.

ACI_EVENT_XM_MUSIC_REQ_FRAME

Event	Opcode	Event Parameters
ACI_EVENT_XM_MUSIC_REQ_FRAME	0x8500	None

Description

Request MCU to send the next music frame.

Event Parameters

None.

ACI_EVENT_XM_TTS_REQ_FRAME

Event	Opcode	Event Parameters
ACI_EVENT_XM_TTS_REQ_FRAME	0x8501	tts_state

Description

Request MCU to send the next TTS frame.

Event Parameters

tts_state (Size: 1 octet)

Value	Parameter Description
0x01	TTS_STATE_STARTED
0x04	TTS_STATE_RESUMED
0x06	TTS_STATE_ABORTING
0x07	TTS_STATE_STOPPED

ACI_EVENT_XM_RECORDING_DATA

Event	Opcode	Event Parameters
ACI_EVENT_XM_RECORDING_DATA	0x8502	recording_data

Description

Report recording data format.

Event Parameters

recording_data (Size: 1024 octets)

Value	Parameter Description
1024	Recording data.

ACI_EVENT_XM_AUDIO_TEST_PA_ID

Event	Opcode	Event Parameters
ACI_EVENT_XM_AUDIO_TEST_PA_ID	0x8600	pa_id

Description

Report PA ID.

Event Parameters

pa_id (Size: 1 octet)

Value	Parameter Description
0x76	PA ID.

ACI_EVENT_XM_BT_AVRCP_STATUS

Event	Opcode	Event Parameters
ACI_EVENT_XM_BT_AVRCP_STATUS	0x8700	avrcp_state, vol_number, address

Description

Report the AVRCP command status.

Event Parameters

avrcp_state (Size: 1 octet)

Value	Parameter Description
0x01	AVRCP_STATE_PLAY
0x02	AVRCP_STATE_PAUSE
0x03	AVRCP_STATE_STOP
0x04	AVRCP_STATE_FORWARD
0x05	AVRCP_STATE_BACKWARD
0x06	AVRCP_STATE_VOL_CHANGED

vol_number (Size: 1 octet)

Value	Parameter Description
0xXX	Only AVRCP_STATE_VOL_CHANGED have the Parameters.

address (Size: 6 octets)

Value	Parameter Description
0xXX	The remote device Bluetooth address.

ACI_EVENT_XM_BR_ATT_CONNECTED

Event	Opcode	Event Parameters
ACI_EVENT_XM_BR_ATT_CONNECTED	0x8003	conn_handle, cid

Description

Reports the BR/EDR ATT protocol is connected.

Event Parameters

conn_handle (Size: 2 octets)

Value	Parameter Description
0xXXXX	It starts from 0x0001. For only one BR/EDR link, it will be 0x0001.

cid (Size: 2 octets)

Value	Parameter Description
0xXXXX	The L2CAP channel ID, it is currently set to 0x0000.

ACI_EVENT_XM_BR_ATT_DISCONNECTED

Event	Opcode	Event Parameters
ACI_EVENT_XM_BR_ATT_DISCONNECTED	0x8006	conn_handle, cid

Description

Report that the BR/EDR ATT protocol is disconnected.

Event Parameters

conn_handle (Size: 2 octets)

Value	Parameter Description
0xXXXX	It starts from 0x0001. For only one BR/EDR link, it will be 0x0001.

cid (Size: 2 octets)

Value	Parameter Description
0xXXXX	The L2CAP channel ID, it is currently set to 0x0000.

ACI_EVENT_XM_USER_CONFIRMATION_REQ

Event	Opcode	Event Parameters
ACI_EVENT_XM_USER_CONFIRMATION_REQ	0x8800	remote_addr, cfmcode, handle_idx

Description

Request confirmation to connect.

Event Parameters

remote_addr (Size: 6 octets)

Value	Parameter Description
0xXXXXXXXXXXXX	Remote address.

cfmcode (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	Confirm code, need to convert to decimal.

handle_idx (Size: 1 octet)

Value	Parameter Description
0xXX	Connect handle_idx.

ACI_EVENT_XM_LE_USER_CONFIRMATION_REQ

Event	Opcode	Event Parameters
ACI_EVENT_XM_LE_USER_CONFIRMATION_REQ	0x8046	conn_id, display_value

Description

Request LE confirmation to connect.

Event Parameters

conn_id (Size: 1 octet)

Value	Parameter Description
0xXX	Connect ID.

display_value (Size: 4 octets)

Value	Parameter Description
0xXXXXXXXX	Confirm code, need to convert to decimal.

ACI_EVENT_XM_LE_ADV_CREATED

Event	Opcode	Event Parameters
ACI_EVENT_XM_LE_ADV_CREATED	0x8048	adv_handle

Description

Report adv_handle for the ADV created by ACI_CMD_XM_LE_ADV_CREATE.

Event Parameters

adv_handle (Size: 1 octet)

Value	Parameter Description
0xXX	adv_handle

ACI_EVENT_AMS_REGISTER_COMPLETE

Event	Opcode	Event Parameters
ACI_EVENT_AMS_REGISTER_COMPLETE	0x0120	link_id, result

Description

Report AMS discovery completed.

Event Parameters

link_id (Size: 1 octet)

Value	Parameter Description
0xXX	APP layer ID for LE link.

result (Size: 1 octet)

Value	Parameter Description
0x00	Register success.

ACI Host CLI Tool

The ACI Host CLI Tool is a test utility that runs on a PC. It is located under the path RTL87X3E-MCU-SDK-Common-v3.1x.x.xx_20xxxxxx\tool\AciHostCLI-v1.0.0.xx-Common_SDK and is used to demonstrate ACI usage. The tool facilitates command/event communication tests with an ACI Device via a USB serial port.

ACI Host CLI Tool

The steps to run the ACI Host CLI Tool are as follows:

1. Open config.yml to modify the device’s serial port and baud rate settings.

2. Run AciHostCLI.exe to start the application.

3. Execute mmi freset to perform a factory reset.

4. Enter mmi pwron to power on the device.

5. Wait for EVENT_DEVICE_STATE to return 1.

Command Introduction

BR Connection

Use case: Connection and Linkback Function.

BR Connection

Command	Description	ACI Command
connect headset_sample	Connect to a BUD with a specific address.	ACI_CMD_BT_CREATE_CONNECTION
connect idx	Need inquiry first, select an index, connect to that BUD.	ACI_CMD_BT_CREATE_CONNECTION
connect phone_sample	Connect to a phone with a specific address.	ACI_CMD_BT_CREATE_CONNECTION
disconnect headset_sample	Disconnect BUD.	ACI_CMD_BT_DISCONNECT
disconnect phone_sample	Disconnect phone.	ACI_CMD_BT_DISCONNECT

Man Machine Interface

Man Machine Interface

Command	Description	ACI Command
mmi end_outgoing_call	End an outgoing call.	ACI_CMD_MMI
mmi answer	Answer an incoming call.	ACI_CMD_MMI
mmi reject	Reject an incoming call.	ACI_CMD_MMI
mmi end_active_call	End an active call.	ACI_CMD_MMI
mmi pwron	Power on the device.	ACI_CMD_MMI
mmi pwroff	Power off the device.	ACI_CMD_MMI
mmi freset	Device factory reset.	ACI_CMD_MMI

SPP Transfer

SPP Transfer

Command	Description	ACI Command
spp t0_sig	Send single frame data to ACI Device and relay to phone via SPP profile.	ACI_CMD_LEGACY_DATA_TRANSFER
spp t2_start	Send start frame data to ACI Device and relay to phone via SPP profile.	ACI_CMD_LEGACY_DATA_TRANSFER
spp t3_con	Send continue frame data to ACI Device and relay to phone via SPP profile.	ACI_CMD_LEGACY_DATA_TRANSFER
spp t4_end	Send end frame data to ACI Device and relay to phone via SPP profile.	ACI_CMD_LEGACY_DATA_TRANSFER

Assign RX Buffer Size

Assign RX Buffer Size

Command	Description	ACI Command
assign buffer	Assign UART RX buffer size, if set to 128, SPP/LE data will split into several frames with max size 128.	ACI_CMD_ASSIGN_BUFFER_SIZE

Set Configuration

Set Configuration

Command	Description	ACI Command
set le_name	Set the LE name (Represented in UTF-8), which will be effective after restart.	ACI_CMD_SET_CFG
set legacy_name	Set Bluetooth legacy name, which will be effective after restart.	ACI_CMD_SET_CFG

Get Configuration

Get Configuration

Command	Description	ACI Command
get le_name	Get the LE name (Represented in UTF-8).	ACI_CMD_GET_CFG_SETTING
get legacy_name	Get Bluetooth legacy device name.	ACI_CMD_GET_CFG_SETTING

Get Status

Get Status

Command	Description	ACI Command
get volume	Get playback or HFP volume depending on scenario.	ACI_CMD_GET_STATUS

Phone Call

Use case: HFP Function.

Phone Call

Command	Description	ACI Command
call 10086	Make phone call to 10086.	ACI_CMD_BT_HFP_DIAL_WITH_NUMBER
call 10010	Make phone call to 10010.	ACI_CMD_BT_HFP_DIAL_WITH_NUMBER

Send Message During Phone Call

Use case: Send numbers during a call, adjust SPK volume, and adjust MIC volume.

Send Message

Command	Description	ACI Command
dtmf num_2	Send number 2 to phone.	ACI_CMD_SEND_DTMF
VGS num_1	Send VGS 1 to phone and set SPK.	ACI_CMD_SEND_VGS
VGS num_10	Send VGS 10 to phone and set SPK.	ACI_CMD_SEND_VGS
VGM num_6	Send VGM 6 to phone and set MIC.	ACI_CMD_SEND_VGM
VGM num_10	Send VGM 10 to phone and set MIC.	ACI_CMD_SEND_VGM

Bluetooth Address Get/Set

Bluetooth Address Get/Set

Command	Description	ACI Command
get bd_addr	Get Bluetooth address set by MCUConfig Tool.	ACI_CMD_GET_BD_ADDR
set Bluetooth address	Update Bluetooth MAC to new address.	ACI_CMD_XM_BT_SET_ADDR

Voice Prompt Volume

Voice Prompt Volume

Command	Description	ACI Command
VP volume1	Set voice prompt volume level to 1.	ACI_CMD_SET_VP_VOLUME
VP volume9	Set voice prompt volume level to 9.	ACI_CMD_SET_VP_VOLUME

Deep Low Power State Control

DLPS Control

Command	Description	ACI Command
dlps enable	Allow device to enter DLPS mode automatically.	ACI_CMD_SET_AND_READ_DLPS
dlps disable	Disallow device to enter DLPS mode.	ACI_CMD_SET_AND_READ_DLPS

Device Mode

Device Mode

Command	Description	ACI Command
mode idle	Disable page scan and inquiry scan.	ACI_CMD_XM_SET_MODE
mode inq_scan	Enable inquiry scan only.	ACI_CMD_XM_SET_MODE
mode page_scan	Enable page scan only.	ACI_CMD_XM_SET_MODE
mode all_enable	Enable inquiry scan and page scan.	ACI_CMD_XM_SET_MODE

SCO Manage

SCO Manage

Command	Description	ACI Command
hfp reject	Reject SCO connection indication.	ACI_CMD_BT_HFP_SCO_MAG
hfp agree	Accept SCO connection indication.	ACI_CMD_BT_HFP_SCO_MAG
hfp disc	Disconnect SCO connection.	ACI_CMD_BT_HFP_SCO_MAG

LE Data Transfer

LE Data Transfer

Command	Description	ACI Command
le send1	Send LE data to phone via transmit service.	ACI_CMD_LE_DATA_TRANSFER

Volume Control

Volume Control

Command	Description	ACI Command
volume level0	Set volume to level 0.	ACI_CMD_SET_VOLUME
volume level3	Set volume to level 3.	ACI_CMD_SET_VOLUME
volume level7	Set volume to level 7.	ACI_CMD_SET_VOLUME
volume level10	Set volume to level 10.	ACI_CMD_SET_VOLUME

Firmware Version

Firmware Version

Command	Description	ACI Command
fw version	Get firmware version.	ACI_CMD_GET_FW_VERSION

Clear Bond Info

Clear Bond Info

Command	Description	ACI Command
clear ufo	Clear a device bond info named ufo.	ACI_CMD_BT_BOND_INFO_CLEAR

HCI Mode

HCI Mode

Command	Description	ACI Command
hci download	Enter HCI download mode.	ACI_CMD_SWITCH_TO_HCI_DOWNLOAD_MODE

Inquiry

Use case: Connect to BUD.

Inquiry

Command	Description	ACI Command
inquiry start	Start inquiry Bluetooth devices.	ACI_CMD_INQUIRY
inquiry stop	Stop inquiry Bluetooth devices.	ACI_CMD_INQUIRY

RF Test

RF Test

Command	Description	ACI Command
hci enter	Enter HCI mode for RF test.	ACI_CMD_XM_ENTER_HCI_MODE

Device

Device

Command	Description	ACI Command
device reboot	Software reboot.	ACI_CMD_XM_DEVICE_REBOOT

XMMI

XMMI

Command	Description	ACI Command
xmmi local	Switch to local playback mode.	ACI_CMD_XM_MMI
xmmi source	Switch to A2DP Source music mode.	ACI_CMD_XM_MMI
xmmi clear	Delete all bond information in bond storage.	ACI_CMD_XM_MMI

LE Advertising

Use case: Bluetooth Low Energy Function.

LE Advertising

Command	Description	ACI Command
le advstart	Create customized LE advertising.	ACI_CMD_XM_LE_ADV_CREATE
le advstart	Start LE advertising.	ACI_CMD_XM_LE_START_ADVERTISING
le advstop	Stop LE advertising.	ACI_CMD_XM_LE_STOP_ADVERTISING
le adv_data	Update LE advertising data.	ACI_CMD_XM_LE_ADV_DATA_UPDATE
le scan_rsp_data	Update LE scan response data.	ACI_CMD_XM_LE_SCAN_RSP_DATA_UPDATE
le adv500ms	Change LE advertising interval to 500ms.	ACI_CMD_XM_LE_ADV_INTVAL_UPDATE
le adv200ms	Change LE advertising interval to 200ms.	ACI_CMD_XM_LE_ADV_INTVAL_UPDATE

LE Connect

Use case: Bluetooth Low Energy Function.

LE Connect

Command	Description	ACI Command
le disconn	Disconnect LE link.	ACI_CMD_XM_LE_DISC
le conn_param	Update LE connection parameters.	ACI_CMD_XM_LE_CONN_PARAM_UPDATE
le mtu	Get LE MTU size.	ACI_CMD_XM_LE_ATT_GET_MTU

Music Control

Use case: Music Play Function.

Music Control

Command	Description	ACI Command
music open	Open and start music session.	ACI_CMD_XM_MUSIC
music pause	Pause music session.	ACI_CMD_XM_MUSIC
music resume	Resume music session.	ACI_CMD_XM_MUSIC
music abort	Abort music session when an unexpected situation happens.	ACI_CMD_XM_MUSIC
music close	Close music session.	ACI_CMD_XM_MUSIC
music single	Send single MP3 frame to device.	ACI_CMD_XM_MUSIC

Recording

Recording

Command	Description	ACI Command
rc start_pcm	Start recording with the format of PCM.	ACI_CMD_XM_START_RECORD
rc start_opus	Start recording with the format of Opus.	ACI_CMD_XM_START_RECORD
rc start_msbc	Start recording with the format of mSBC.	ACI_CMD_XM_START_RECORD
rc start_sbc	Start recording with the format of SBC.	ACI_CMD_XM_START_RECORD
rc start_lc3	Start recording with the format of LC3.	ACI_CMD_XM_START_RECORD
rc stop	Stop recording.	ACI_CMD_XM_STOP_RECORD
rc play	Initialize record playing.	ACI_CMD_XM_START_RECORD_PLAY
rc s	Stop record playing.	ACI_CMD_XM_STOP_RECORD_PLAY

Audio Test

Audio Test

Command	Description	ACI Command
pa id	Get PA chip ID.	ACI_CMD_XM_AUDIO_TEST_GET_PA_ID
algo bypass	Set PA and DSP into bypass mode.	ACI_CMD_XM_AUDIO_TEST_BYPASS
algo normal	Set PA and DSP into normal mode.	ACI_CMD_XM_AUDIO_TEST_BYPASS

Others Debug Only

Others Debug Only

Command	Description	ACI Command
dis log	Disable verbose log.	ACI_CMD_XM_DISABLE_VERBOSE_LOG

A2DP Transfer

Transfer to A2DP Source

Use case: A2DP Transparent Transmission (A2DP Output).

Transfer to A2DP Source

Command	Description	ACI Command
a2dpxmitroute a2dpsrc	Set A2DP Source as a transparent transmission play path (From SPI).	ACI_CMD_A2DP_XMIT_SET_ROUTE_OUT
a2dpxmitctrl start	Enable A2DP Source music (From SPI).	ACI_CMD_A2DP_XMIT_ROUTE_OUT_CTRL
a2dpxmitctrl stop	Disable A2DP Source music (From SPI).	ACI_CMD_A2DP_XMIT_ROUTE_OUT_CTRL

Transfer to LE Audio (Broadcast Source)

Use case: A2DP Transparent Transmission (BIS Output).

Transfer to LE Audio (Broadcast Source)

Command	Description	ACI Command
bsrcinit 48k_1bis	Initialize broadcast source.	ACI_CMD_LEA_BSRC_INIT
a2dpxmitroute bis	Set broadcast source as transparent transmission play path (From SPI).	ACI_CMD_A2DP_XMIT_SET_ROUTE_OUT
a2dpxmitctrl start	Enable broadcast source music (From SPI).	ACI_CMD_A2DP_XMIT_ROUTE_OUT_CTRL
a2dpxmitctrl stop	Disable broadcast source music (From SPI).	ACI_CMD_A2DP_XMIT_ROUTE_OUT_CTRL

Source Play

Use case: Source Play Function.

Source Play

Command	Description	ACI Command
set_route_in mic	Set input route as MIC.	ACI_CMD_SRC_PLAY_SET_SRC_ROUTE
set_route_in linein	Set input route as Line-in.	ACI_CMD_SRC_PLAY_SET_SRC_ROUTE
set_route_in usb	Set input route as USB.	ACI_CMD_SRC_PLAY_SET_SRC_ROUTE
set_route_in sd_card	Set input route as SD card.	ACI_CMD_SRC_PLAY_SET_SRC_ROUTE
set_route_out A2DP	Set output route as A2DP.	ACI_CMD_SRC_PLAY_SET_PLAY_ROUTE
set_route_out hfp_ag	Set output route as HFP AG.	ACI_CMD_SRC_PLAY_SET_PLAY_ROUTE
set_route_out bis	Set output route as BIS.	ACI_CMD_SRC_PLAY_SET_PLAY_ROUTE
set_route_out cis	Set output route as CIS.	ACI_CMD_SRC_PLAY_SET_PLAY_ROUTE
set_route_out local	Set output route as Local.	ACI_CMD_SRC_PLAY_SET_PLAY_ROUTE
attach_feature nrec	Attach NREC to source play.	ACI_CMD_SRC_PLAY_ATTACH_FEATURE
attach_feature localplay	Attach Append LOCAL PLAY to source play.	ACI_CMD_SRC_PLAY_ATTACH_FEATURE
attach_feature nrec_localplay	Attach NREC and Append LOCAL PLAY to source play.	ACI_CMD_SRC_PLAY_ATTACH_FEATURE
detach_feature nrec	Detach NREC from source play.	ACI_CMD_SRC_PLAY_DETACH_FEATURE
detach_feature localplay	Detach Append LOCAL PLAY on source play.	ACI_CMD_SRC_PLAY_DETACH_FEATURE
detach_feature nrec_localplay	Detach NREC and Append LOCAL PLAY from source play.	ACI_CMD_SRC_PLAY_DETACH_FEATURE
route_in start	Start input route source.	ACI_CMD_SRC_PLAY_ROUTE_IN_START
route_in stop	Stop input route source.	ACI_CMD_SRC_PLAY_ROUTE_IN_STOP
route_out start	Start output route play.	ACI_CMD_SRC_PLAY_ROUTE_OUT_START
route_out stop	Stop output route play.	ACI_CMD_SRC_PLAY_ROUTE_OUT_STOP

String Mode

String Mode

Command	Description	ACI Command
set string_mode	Enter string mode.	ACI_CMD_STRING_MODE

HFP Transfer

Use case: HFP Transparent Transmission.

HFP Transfer

Command	Description	ACI Command
hfpag conn	Connect SCO between device and BUD.	ACI_CMD_HFP_AG_CONNECT_SCO
hfpag disconn	Disconnect SCO between device and BUD.	ACI_CMD_HFP_AG_DISCONNECT_SCO
hfpag call_incoming	Notify the incoming call.	ACI_CMD_HFP_AG_CALL_INCOMING
hfpag call_answer	Answer the incoming call.	ACI_CMD_HFP_AG_CALL_ANSWER
hfpag call_terminate	Terminate the outgoing call.	ACI_CMD_HFP_AG_CALL_TERMINATE
hfpag mic_mute	Mute the MIC.	ACI_CMD_HFP_AG_MIC_GAIN_LEVEL_SET
hfpag mic_unmute	Unmute the MIC.	ACI_CMD_HFP_AG_MIC_GAIN_LEVEL_SET
hfpag spk_vol_up	Turn the SPK volume up.	ACI_CMD_HFP_AG_SPEAKER_GAIN_LEVEL_SET
hfpag spk_vol_down	Turn the SPK volume down.	ACI_CMD_HFP_AG_SPEAKER_GAIN_LEVEL_SET

Find My Action

Find My Action

Command	Description	ACI Command
findmy enter_pairing	Enter Find My pairing mode.	ACI_CMD_FINDMY_FEATURE
findmy put_serial_number	Put the state of serial number.	ACI_CMD_FINDMY_FEATURE

GFPS Finder Action

GFPS Finder Action

Command	Description	ACI Command
gfps_finder_ring_stop	Stop ring.	ACI_CMD_GFPS_FINDER_FEATURE

LEA Advertising

LEA Advertising

Command	Description	ACI Command
lea_adv_start	Start LE Audio advertising.	ACI_CMD_LEA_ADV_START
lea_adv_stop	Stop LE Audio advertising.	ACI_CMD_LEA_ADV_STOP

LEA CCP (F_APP_CCP_SUPPORT, CLIENT)

LEA CCP

Command	Description	ACI Command
lea_call_cp accept	Answer the incoming call on the specified link.	ACI_CMD_LEA_CCP_CALL_CP
lea_call_cp terminate	Terminate the call on the specified link.	ACI_CMD_LEA_CCP_CALL_CP
lea_call_cp local_hold	Move the call on the specified link to local hold status.	ACI_CMD_LEA_CCP_CALL_CP
lea_call_cp local_retrieve	Move the call on the specified link from local hold status to active status.	ACI_CMD_LEA_CCP_CALL_CP
lea_call_cp originate	Originate call on the specified link.	ACI_CMD_LEA_CCP_CALL_CP
lea_call_cp join	Join the call on the specified link.	ACI_CMD_LEA_CCP_CALL_CP

LEA MCP (F_APP_MCP_SUPPORT, CLIENT)

LEA MCP

Command	Description	ACI Command
lea_media_cp play	Play current track.	ACI_CMD_LEA_MCP_MEDIA_CP
lea_media_cp pause	Pause current track.	ACI_CMD_LEA_MCP_MEDIA_CP
lea_media_cp fast_rewind	Fast rewind.	ACI_CMD_LEA_MCP_MEDIA_CP
lea_media_cp fast_forward	Fast forward.	ACI_CMD_LEA_MCP_MEDIA_CP
lea_media_cp stop	Stop current track.	ACI_CMD_LEA_MCP_MEDIA_CP
lea_media_cp previous_track	Move to previous track.	ACI_CMD_LEA_MCP_MEDIA_CP
lea_media_cp next_track	Move to next track.	ACI_CMD_LEA_MCP_MEDIA_CP

LEA SYNC INIT

LEA SYNC INIT

Command	Description	ACI Command
bis_sync_init random	Initialize the role as a sink, which will sync any device around.	ACI_CMD_LEA_SYNC_INIT
bis_sync_init spec	Initialize the role as a sink, which will sync a specific device according to the address.	ACI_CMD_LEA_SYNC_INIT
bis_sync_init delegator	Initialize the role as a scan delegator.	ACI_CMD_LEA_SYNC_INIT

LEA SYNC

LEA SYNC

Command	Description	ACI Command
bis_sync start	Start syncing broadcast according to the initialization policy.	ACI_CMD_LEA_SYNC
bis_sync stop	Stop syncing the broadcast.	ACI_CMD_LEA_SYNC

CHARGING CASE COMMANDS

CHARGING CASE COMMANDS

Command	Description	ACI Command
chargingcase end_outgoing_call	End an outgoing call.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase answer_call	Answer an incoming call.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase reject_call	Reject an incoming call.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase end_active_call	End an active call.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase mic_mute_unmute	MIC mute toggle.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase mic_mute	MIC mute.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase mic_unmute	MIC unmute.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase volume_up	Volume up.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase volume_down	Volume down.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase play_pause	AV play/pause.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase av_fwd	AV forward.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase av_bwd	AV backward.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase av_fastforward	AV fast forward.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase av_rewind	AV rewind.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase gaming_mode_switch	Switch to gaming mode.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase light_sensor_on_off	Light sensor on/off.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase vp_level3	Set voice prompt volume level to 3.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase vp_level10	Set voice prompt volume level to 10.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase audio_eq_index_set0	Set audio EQ index to 0.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase audio_eq_index_set1	Set audio EQ index to 1.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase volume_level0	Set volume to level 0.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase volume_level3	Set volume to level 3.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase volume_level7	Set volume to level 7.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase volume_level10	Set volume to level 10.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase volume_level15	Set volume to level 15.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase set_key_mmi_map_volume_up	Set MFB as volume up button.	ACI_CMD_LEA_MCP_MEDIA_CP
chargingcase set_key_mmi_map_volume_down	Set MFB as volume down button.	ACI_CMD_LEA_MCP_MEDIA_CP

LEA BAP

LEA BAP

Command	Description	ACI Command
bst_start group_0_sync_0	Start broadcast on group 0 and sync 0.	ACI_CMD_LEA_BST_START
bst_start group_0_sync_1	Start broadcast on group 0 and sync 1.	ACI_CMD_LEA_BST_START
bst_start group_1_sync_0	Start broadcast on group 1 and sync 0.	ACI_CMD_LEA_BST_START
bst_start group_1_sync_1	Start broadcast on group 1 and sync 1.	ACI_CMD_LEA_BST_START
bst_stop group_0_sync_0	Stop broadcast on group 0 and sync 0.	ACI_CMD_LEA_BST_STOP
bst_stop group_0_sync_1	Stop broadcast on group 0 and sync 1.	ACI_CMD_LEA_BST_STOP
bst_stop group_1_sync_0	Stop broadcast on group 1 and sync 0.	ACI_CMD_LEA_BST_STOP
bst_stop group_1_sync_1	Stop broadcast on group 1 and sync 1.	ACI_CMD_LEA_BST_STOP
bst_remove group_0_sync_0	Remove broadcast on group 0 and sync 0.	ACI_CMD_LEA_BST_REMOVE
bst_remove group_0_sync_1	Remove broadcast on group 0 and sync 1.	ACI_CMD_LEA_BST_REMOVE
bst_remove group_1_sync_0	Remove broadcast on group 1 and sync 0.	ACI_CMD_LEA_BST_REMOVE
bst_remove group_1_sync_1	Remove broadcast on group 1 and sync 1.	ACI_CMD_LEA_BST_REMOVE
baas scan	Start extended scan for BAAS.	ACI_CMD_LEA_BAAS_SCAN
pa_sync dev0	PA sync with device 0.	ACI_CMD_LEA_PA_SYNC_DEV
pa_sync dev1	PA sync with device 1.	ACI_CMD_LEA_PA_SYNC_DEV
pa_sync dev2	PA sync with device 2.	ACI_CMD_LEA_PA_SYNC_DEV

LEA VCP VOLUME CONTROL

LEA VCP VOLUME CONTROL

Command	Description	ACI Command
gvcs volume	Set VCS volume.	ACI_CMD_LEA_GVCS_VOLUME
gvcs mute	Set VCS mute.	ACI_CMD_LEA_GVCS_MUTE
gvcs unmute	Set VCS unmute.	ACI_CMD_LEA_GVCS_MUTE

UART DFU

UART DFU

Command	Description	ACI Command
dfu start	Start DFU process through UART.	ACI_CMD_UART_DFU
dfu abort	Abort DFU process.	ACI_CMD_UART_DFU
dfu get_ver	Get device’s version.	ACI_CMD_UART_DFU
dfu test_enable	Enable test mode to downgrade.	ACI_CMD_UART_DFU

LEA VCS

LEA VCS

Command	Description	ACI Command
lea_vcs vol_up	Volume up.	ACI_CMD_LEA_VCS_SET
lea_vcs vol_down	Volume down.	ACI_CMD_LEA_VCS_SET
lea_vcs spk_mute	SPK mute.	ACI_CMD_LEA_VCS_SET
lea_vcs spk_unmute	SPK unmute.	ACI_CMD_LEA_VCS_SET

LEA CCP (CCP_CALL_CONTROL_SERVER)

LEA CCP (CCP_CALL_CONTROL_SERVER)

Command	Description	ACI Command
ccp_action incomingcall	Incoming call action.	ACI_CMD_LEA_CCP_ACTION
ccp_action local_accept1	Local accept call index 1.	ACI_CMD_LEA_CCP_ACTION
ccp_action local_accept2	Local accept call index 2.	ACI_CMD_LEA_CCP_ACTION
ccp_action local_terminate1	Local terminate call index 1.	ACI_CMD_LEA_CCP_ACTION
ccp_action local_terminate2	Local terminate call index 2.	ACI_CMD_LEA_CCP_ACTION

LEA MCP (MCP_MEDIA_CONTROL_SERVER)

LEA MCP (MCP_MEDIA_CONTROL_SERVER)

Command	Description	ACI Command
mcp_state playing	The media player starts playing the current track.	ACI_CMD_LEA_MCP_STATE
mcp_state paused	The media player paused the current track.	ACI_CMD_LEA_MCP_STATE
mcp_notify track_changed	Send track changed notification.	ACI_CMD_LEA_MCP_NOTIFY
mcp_notify track_duration	Send track duration notification.	ACI_CMD_LEA_MCP_NOTIFY
mcp_notify track_position	Send track position notification.	ACI_CMD_LEA_MCP_NOTIFY

LEA MICP MIC CONTROL

LEA MICP MIC CONTROL

Command	Description	ACI Command
gmic mute	Set GMIC MIC mute.	ACI_CMD_LEA_GMIC_MUTE
gmic unmute	Set GMIC MIC unmute.	ACI_CMD_LEA_GMIC_MUTE
