Debugging system

Debug system is a critical technique in the software development process. It’s a collection of tools and techniques used to detect and fix errors or issues in software programs. Its main purpose is to help developers identify and resolve various problems encountered during the development and operation of programs, thereby improving software quality and reliability. In debug system, developers can inspect register values and understand the runtime code state by setting breakpoints, single-stepping, logging, and other methods.

Two debugging methods provided by RTL8752H are listed below:

  1. Use log mechanism to track code execution and data.

  2. Use ARM Keil MDK or J-Link Commander and SWD for debugging, adding/removing breakpoints, and accessing/tracing Memory, etc.

Log Mechanism

Log mechanism is an important tool in software development that helps developers monitor, debug, and maintain software systems by recording various events and state information during program execution. The log of RTL8752H is viewed through Debug Analyzer tool provided by Realtek, which is designed to simplify the user’s debugging process. Its goal is to optimize the identification and resolution of software issues, building a more efficient development cycle. For details, please refer to Debug Analyzer Tool.

RTL8752H reserves P0_3 by default as the Log UART output pin, but the log function can also be reconfigured to other pins. The Log UART output pin connects to the PC via UART-to-USB, where Debug Analyzer receives log data through the COM port on PC. The usage of Debug Analyzer is introduced in detail below.

Debug Analyzer

The steps for use are as follows.

  1. Open DebugAnalyzer.exe, and click Settings on the main interface.

  2. In the [Detail Settings] interface:

    1. Select the COM port corresponding to the LOG UART under Serial Port.

    2. Select the appropriate App.trace and any other necessary traces under App Trace File.

    3. Click confirm at the bottom right. (App.trace is generated in the same directory location as App.bin after the APP program is compiled.)

  3. Click Start on the main interface to begin.

    ../../../_images/debug_analyzer.png

    Debug Analyzer Settings

Debug Analyzer also offers some advanced features.

  • Log Filter: Filters the display, popping up a new window that only shows logs that meet the filter criteria.

  • Clear: Clears the logs in the display box.

Note

Debug Analyzer automatically saves log files, naming them according to the port number and generation time, such as COM5_2015-06-12_18-05-00.log, stored in the DebugAnalyzer installation path DebugAnalyzer\DataFile.

Log Printing Interface

The log printing interface can be divided into the following four types:

Basic Printing Interface

Used for printing real-time logs, declared as follows.

DBG_BUFFER(T_LOG_TYPE type, T_LOG_SUBTYPE sub_type, T_MODULE_ID module, uint8_t level, char* fmt, uint8_t param_num, ...).

Parameter description:

type:

Fixed as TYPE_BEE3PLUS

sub_type:

Fixed as SUBTYPE_FORMAT

module:

Several predefined modules exist within T_MODULE_ID type, these modules are used to categorize logs. Debug Analyzer can recognize these modules and automatically add the module name before each printed log.

level:

Log level, indicating the level at which the log should be printed, four categories are defined as follows:

Log Levels

Log Level

Usage Scenario

LEVEL_ERROR

Critical error, the program cannot continue running (Log identifier: !!!)

LEVEL_WARN

Anomalous situation occurs, the program can continue running (Log identifier: !!*)

LEVEL_INFO

Important information (Log identifier: !**)

LEVEL_TRACE

Detailed debug information (Log identifier: none)

Note

The DBG_BUFFER interface allows up to 20 parameters.

Encapsulated Printing Interface

For different modules, the RTL8752H encapsulates corresponding interfaces to print corresponding logs. Like the basic interface, it provides four log levels. The printed logs will start with the module name, such as [APP], [Flash], etc. Declared as follows.

{MODULE}_PRINT_{LEVEL}_{PARAMNUM}(...)

Parameter Description:

MODULE:

Defined in trace.h, including APP/GAP/USB/FLASH…

LEVEL:

Same as the four levels of the basic print interface, ERROR/WARN/INFO/TRACE

PARAMNUM:

0 to 8, representing the number of log print parameters

Note

  • Do not exceed 8 parameters (if using the DBG_BUFFER interface, a maximum of 20 parameters is allowed).

  • Try to include all parameters in a single print statement.

Auxiliary Print Interface

DBG_BUFFER interface can only print integer types such as (d, i, u, o, x), character (c), and pointer type (p). When you need to print strings, binary arrays, or BT addresses, the following auxiliary print interfaces are required.

Auxiliary Print Interface

Interface

Description

Precautions

TRACE_STRING(char* data)

Directly print strings, placeholder %s

Maximum string length is 240 bytes

TRACE_BINARY(uint16_t length, uint8_t* data)

Print binary data in hexadecimal format, placeholder %b

Maximum binary data length is 240 bytes

TRACE_BDADDR(char* bd_addr)

Print a binary string in BT address format, converting character %s

A single log can print up to 4 BT addresses, Example:

Hex Array: 0xaa 0xbb 0xcc 0xdd 0xee 0xff –> Literal String: FF::EE::DD::CC::BB::AA

Direct Print Interface

Printing logs by calling functions based on the DBG_BUFFER interface has a relatively small impact on system performance, but the real-time performance of printing is not high. This is because logs printed through these APIs are buffered and sent to the Log UART when the system is idle.

DBG_DIRECT is used to print real-time logs. This API has impact on the system because it sends data directly to the Log UART, preventing the system from continuing execution until the log is printed. Therefore, it is strongly recommended to use this API only in specific situations.

  • Before the system restarts

  • Scenarios with high real-time requirements

Log Control

Users can select the log levels for printing through the following two methods:

MP Tool Config Control

MP Tool serves as a production tool, supporting both debugging and production modes. During debugging, you can configure whether to enable various log levels corresponding to each module. Usage is as follows. For details, please refer to: MP Tool.

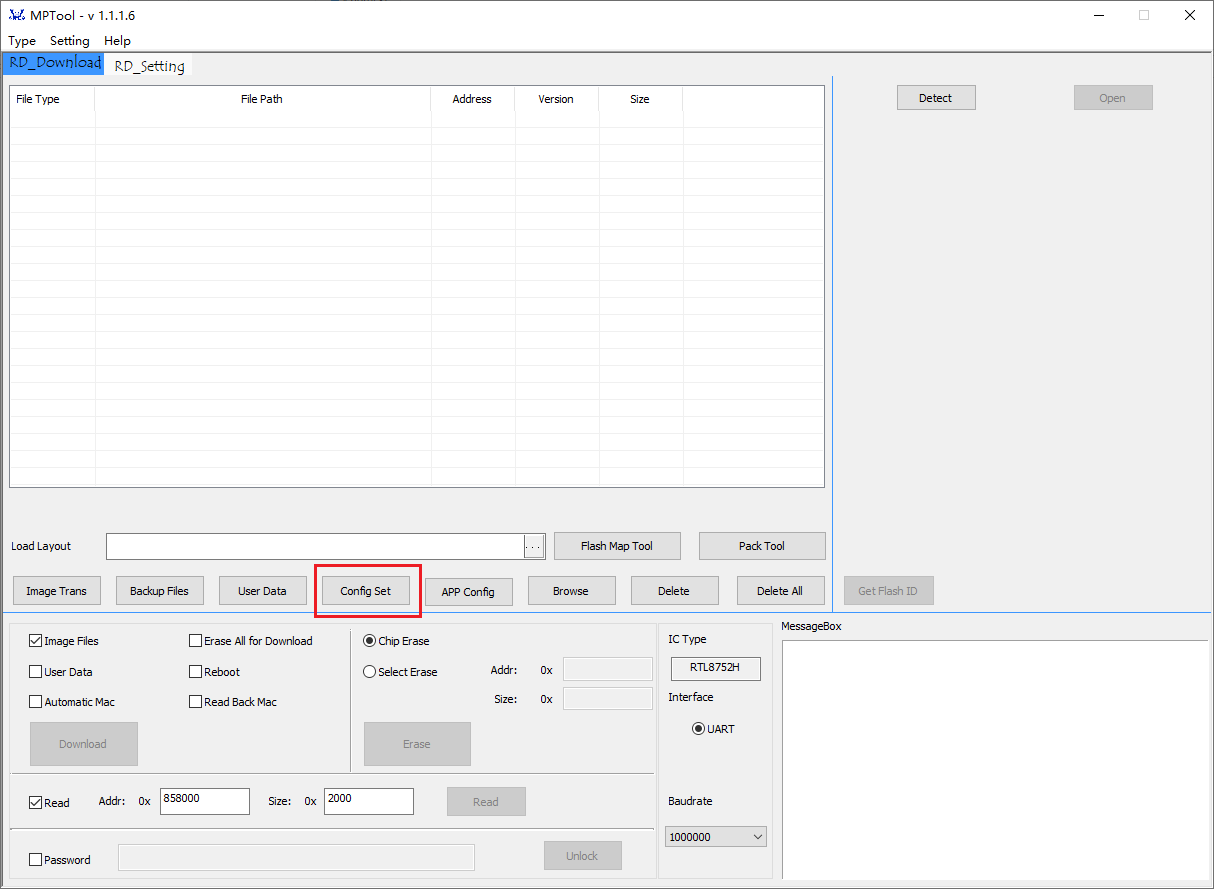

  1. First, click Config Set on the main page.

    ../../../_images/MP_Tool_main_page.png

    MP Tool Main Page

  2. Next, click the Log tab on the [Config Set] page and double-click to modify the Enable/Disable status for the corresponding module and level. Finally, click Confirm at the bottom right to generate the System Config File and flash it.

    ../../../_images/MP_Tool_config_log.png

    MP Tool Config Set Page

Log Control Interface

Sometimes it is necessary to control the enabling and disabling of certain logs. One way is by setting the Config File in the MP Tool and programming the Config File into the RTL8752H. If there is a need to frequently change the log print level, this method is not flexible enough, as reprogramming the System Config File each time is inconvenient. Therefore, the SDK provides 3 APIs to control specific levels of specific modules, namely:

Here are some scenarios to help users understand how to use the log control APIs in applications. Assume the log print function is already enabled and the Config File has set all log trace masks to 1, meaning logs of all levels for all modules will be printed.

  • Scenario 1

    Disable all trace and info level logs for the APP module.

    int main(void)
{
    log_module_trace_set_update(MODULE_APP, LEVEL_INFO, false);
    log_module_trace_set_update(MODULE_APP, LEVEL_TRACE, false);
    ...
}

  • Scenario 2

    Only open the log for the PROFILE module.

    int main(void)
{
    uint64_t mask[LEVEL_NUM];
    memset(mask, 0, sizeof(mask));
    log_module_trace_init(mask);
    log_module_trace_set_update(MODULE_PROFILE, LEVEL_ERROR, true);
    log_module_trace_set_update(MODULE_PROFILE, LEVEL_WARN, true);
    log_module_trace_set_update(MODULE_PROFILE, LEVEL_INFO, true);
    log_module_trace_set_update(MODULE_PROFILE, LEVEL_TRACE, true);
    ...
}

  • Scenario 3

    Disable the trace level logs for PROFILE/PROTOCOL/GAP/APP modules.

    int main(void)
{
    log_module_bitmap_trace_set(MODULE_BIT_PROFILE | MODULE_BIT_PROTOCOL |
                               MODULE_BIT_GAP | MODULE_BIT_APP, LEVEL_TRACE, false);
    ...
}

  • Scenario 4

    Disable all trace and info level logs except for the APP module, including disabling BT Snoop log.

    int main(void)
{
    for (uint8_t i = 0; i < MODULE_NUM; i++)
    {
        log_module_trace_set_update((T_MODULE_ID)i, LEVEL_TRACE, false);
        log_module_trace_set_update((T_MODULE_ID)i, LEVEL_INFO, false);
    }
    log_module_trace_set_update(MODULE_APP, LEVEL_INFO, true);
    log_module_trace_set_update(MODULE_APP, LEVEL_TRACE, true);
    log_module_trace_set_update(MODULE_SNOOP, LEVEL_ERROR, false);
    ...
}

Note

  • If the LEVEL_ERROR log for MODULE_SNOOP is enabled, Debug Analyzer will generate a BT Snoop log file *.cfa.

  • If the log for MODULE_SNOOP is disabled, no BT Snoop log will be generated, as seen in Scenario 2 and Scenario 4.

SWD Debugging

The RTL8752H implements three basic debugging interfaces:

  • run control

  • breakpoint

  • memory access

Note

The RTL8752H supports SWD and does not support JTAG.

ARM Keil MDK SWD Debugging

First, correctly install and configure ARM Keil MDK and the main debugging features supported by SWD RTL8752H as shown on the UI.

  1. Running control : Running/Reset/Step

  2. Breakpoints: Add/Delete/Conditional

  3. Debugging Function Windows

    • Core registers window: Monitor/modify MCU register values.

    • Disassembly window: Display the assembly code executed by the program, or display mixed with source code.

    • Source code window: View C code, support breakpoints and real-time display of variables.

    • Variable watch window: View the values of monitored variables.

    • Memory window: Display/Modify the memory under investigation, supports direct address input and variable address input.

    • Call stack and local variable window: Display the current call stack, as well as local variables (i.e., variables on the stack).

Note

Sometimes you may encounter an issue where the image cannot be successfully downloaded to flash, or even if successfully connected with J-Link, SWD cannot be found. In such cases, you can perform the following checks:

  1. Change the debug clock to a smaller value (for example, from 2MHz to 1MHz), or use a shorter SWD debug cable.

  2. The IC may have already entered the DLPS mode. Reset the IC, and the system will remain in an active state for 5 seconds.

  3. Check if the SWD feature is disabled in APP.
