I2S

Sample List

This chapter introduces the details of the I2S sample. The RTL87x2G provides the following examples for the I2S peripheral.

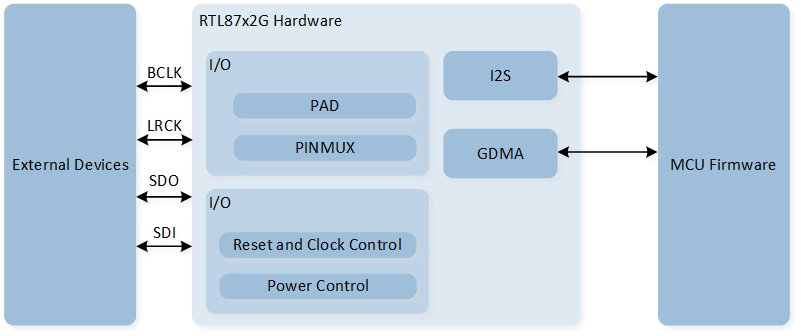

Functional Overview

The I2S interface can support audio protocols like I2S, Left-Justified, PCM, etc. I2S can operate in GDMA mode or FIFO mode. In GDMA mode, set the buffer size according to the amount of transfer data, or directly access the I2S FIFO for data transmission and reception in FIFO mode. It is recommended to automatically transfer audio data via GDMA, as this reduces the number of interrupts and increases efficiency.

Feature List

  • Support up to 2 I2S.

  • Configurable BCLK and LRCK clock frequencies.

  • Support master and slave modes.

  • Support 16/20/24/32-bits data lengths.

  • Support 16/20/24/32-bits channel lengths.

  • Support interrupt or polling mode operation.

  • Support GDMA transfer.

Clock Divider

  • Calculate the fractional divider for BCLK using the formula: BCLK = XTAL 40MHz * (I2S_BClockNi / I2S_BClockMi).

    • Example: For 40MHz XTAL clock source to generate 12.288MHz BCLK, it is recommended to use settings of I2S_BClockNi = 192 and I2S_BClockMi = 625.

    • Note that since the clock source is from a 40MHz XTAL, the actual BCLK will be a jitter clock consisting of 10MHz and 13.33MHz.

  • Set the even-bit integer divider for LRCK according to the formula: LRCK = BCLK / (I2S_BClockDiv + 1).

  • Where I2S_BClockDiv can be calculated using the formula: I2S_BClockDiv = (channel width * channel number) - 1.

  • For 2 channels and 32-bit channel width, the recommended clock divider settings are shown below.

I2S Clock Divider

BCLK Frequency

Clock Source

I2S_BClockNi

I2S_BClockMi

I2S_BClockDiv

Sampling Rate

0.512 MHz

XTAL 40MHz

8

625

63

8 KHz

0.768 MHz

XTAL 40MHz

12

625

63

12 KHz

1.024 MHz

XTAL 40MHz

16

625

63

16 KHz

1.536 MHz

XTAL 40MHz

24

625

63

24 KHz

2.048 MHz

XTAL 40MHz

32

625

63

32 KHz

3.072 MHz

XTAL 40MHz

48

625

63

48 KHz

6.144 MHz

XTAL 40MHz

96

625

63

96 KHz

12.288 MHz

XTAL 40MHz

192

625

63

192 KHz

2.8224 MHz

XTAL 40MHz

441

6250

63

44.1 KHz

5.6448 MHz

XTAL 40MHz

441

3125

63

88.2 KHz

0.7056 MHz

XTAL 40MHz

441

25000

63

11.025 KHz

1.4112 MHz

XTAL 40MHz

441

12500

63

22.05 KHz

I2S Data Format

The I2S data format includes I2S, Left-Justified, PCM_A, and PCM_B formats and can be set through I2S_InitTypeDef::I2S_TxDataFormat.

The data formats are shown in figures:

../../../../../_images/i2s_format.png

I2S Format

../../../../../_images/i2s_left_justified.png

I2S Left-Justified Format

../../../../../_images/i2s_PCM_A.png

I2S PCM_A Format

../../../../../_images/i2s_PCM_B.png

I2S PCM_B Format
