Rainbow Analog Clock

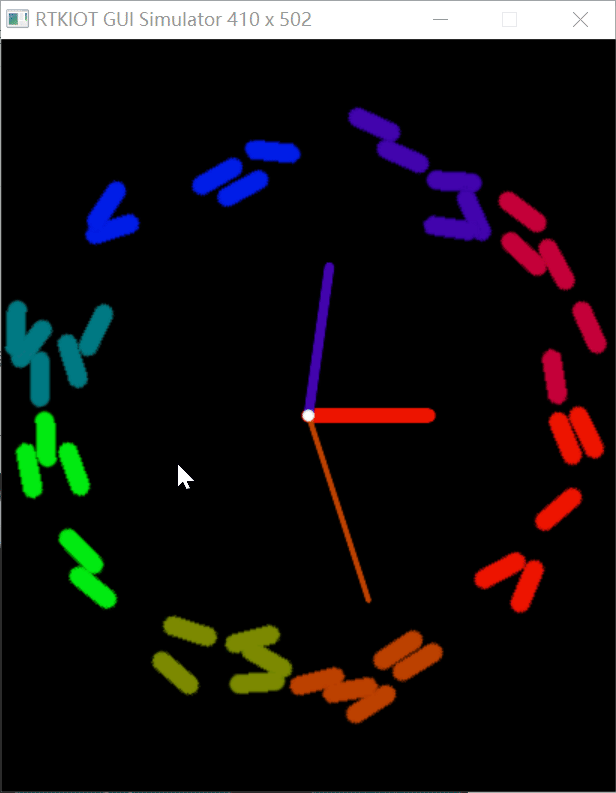

The example creates a scene for a ‘Rainbow Analog Clock’ using graphical display and animation effects. This application integrates the Box2D physics engine to simulate the movement of capsule objects along a circular path. These capsules undergo dynamic movement and collision simulation based on user interactions and defined physical rules, creating a rich and dynamic visual experience.

Core Features

Analog Clock Display

Displays an analog clock with hour, minute, and second hands, which update their positions in real time with system time.
The clock hands are drawn using vector graphics, and their color dynamically changes based on interactions with the capsules.

Capsule Animation

Capsules of different colors and images rotate along a circular path, creating vibrant animation effects.
Each capsule moves towards the center of the circle, with added random angular offsets to increase movement randomness and realism.
Users can interact by clicking to apply external force to capsules, triggering a visual explosion effect.

User Interaction

Users can click a specific location on the screen to trigger an outward bouncing effect for capsules within a certain radius from the click point.
After user interaction, capsules gradually return to their original path.

Physics Engine Integration

The application uses Box2D for dynamic physics simulation to handle the rotation and movement of capsules.

Implementation

Code

The function static void app_rainbow_analog_ui_design(gui_view_t *view) is located in the file example/application/screen_410_502/app_box2d_rainbow_analog.cpp.
