OTA

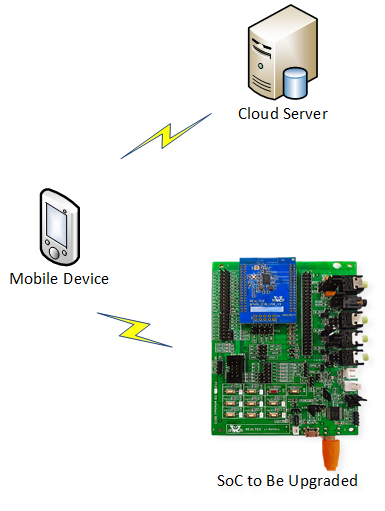

OTA refers to the wireless delivery of software updates to devices. SDK supports OTA via Bluetooth. SDK supports two Bluetooth transports for Android and iOS: OTA via GATT, which is suitable for both iOS and Android, and OTA via SPP, which is only suitable for Android. The OTA block diagram is shown in the following chart.

As shown in Flash, two bank areas are allocated to store the images, but only one bank is active at a time. The images in the two banks will be authenticated during the SoC boot process. If the images in both banks are all valid, the bank with the higher version will be selected to run. The versions of images in two banks will be compared in a specific sequence until a difference is found. If only one bank’s images are valid, this bank will be selected to run. For OTA, all the images in both banks should be packed together, and the OTA tool will automatically select the images to transfer to the inactive bank. This user manual describes OTA related information. The following topics are included to help users establish the OTA environment.

Flash Layout
OTA Flow
OTA via GATT
OTA via SPP
Code Overview
Experimental Verification

Flash Layout

The flash layout of the chip can be modified according to user requirements. The layout information is stored in the system configuration image and OTA header image. Please refer to the SDK Document (Image Layout and Flash) for more detailed information.

Dual Bank

Two bank areas (bank0 and bank1) can be allocated to save images. However, only one bank is active at a time; the other one is a backup. The SoC will determine which bank is active during boot based on certain rules.

Bank Switching Check Rules

The bootloader authenticates the bank with the higher image version first. If all the images in this bank are authenticated successfully, this bank will be activated. Otherwise, the other bank will be authenticated. If authentication fails for both banks, the SoC will fail to boot and cannot be recovered via OTA. When comparing versions, the OTA header image has the highest priority, followed by the order of images in the OTA header image. For example:

Assuming the OTA Header image version of bank0 is higher than bank1, so bank0 will be selected for authentication first.

Bank Name

Image Version

Result

Bank0

OTA Header(version: 0.0.0.2),
Other images

Bank0 will be selected first regardless other images.

Bank1

OTA Header(version: 0.0.0.1),
Other images

Assuming the OTA Header image version is the same for two banks, and the FSBL image version of bank1 is higher than bank0. In this case, bank1 will be selected for authentication first.

Bank Name	Image Version	Result
Bank0	OTA Header(version: 0.0.0.1), FSBL(version:0.0.0.2), Other images	Bank1 will be selected first regardless other images.
Bank1	OTA Header(version: 0.0.0.1), FSBL(version:0.0.0.3), Other images

OTA Flow

Images pushed by the OTA tool will always be saved in the inactive bank during the OTA process. The SoC will reboot after all images have been pushed and validated successfully. The advantage of dual bank OTA is that there is always a backup bank, so users do not need to worry about the SoC crashing if the OTA process fails. Because the bank with all legal images and higher versions will be selected to be activated by the bootloader, the upgraded images should have higher versions and be integrated. Otherwise, the images will not be activated when the chip reboots.

Dual Bank OTA Mode

The dual bank OTA flow is shown in the following chart. The mobile phone is the controller and the SOC is the target. The controller makes a connection to the target before the OTA begins. Subsequently, the controller obtains the target information to determine if the upgrade is authorized.

Image Data Push

During the process of pushing an image from the OTA tool to the SoC, we designed the following mechanism to ensure correctness.

Buffer Check

This function can be considered a simple moving-window detection method. The OTA tool calculates the CRC of every N-byte payload and sends this checksum value to the SoC after pushing the data.

The size of the N-byte payload is negotiated by the MCU and OTA tool before OTA starts.
The SoC first saves this N-byte payload in a temporary buffer, then calculates the data checksum and compares it with the checksum value received from the OTA tool.
If the checksum values match, the SoC saves the data to the inactive bank. If they do not match, the SoC discards the data and notifies the tool, which will then retransmit the payload. This function is enabled by default to detect transmission errors as early as possible.

Encrypted Transmission

The OTA tool and SoC support encrypted transmission. You can change the function app_ota_enc_setting to set it for the common SDK, and you can use MCUConfig Tool to set it for the headset. Currently, one algorithm AES256 is supported. The OTA tool encrypts each N-byte payload before pushing it to the SoC. When buffer check is enabled, the N-byte payload will be encrypted together. When buffer check is disabled, each packet will be encrypted separately before being pushed to the SoC. The SoC decrypts the data before saving it to Flash.

Image Validation

The OTA tool will send the command to force the SoC to validate the entire image after an image has been fully delivered to the SoC. The checksum value (SHA256 or CRC) will be calculated and filled in the image header when the image is generated. The SoC calculates the checksum value and compares it with the value in the image header. If the two values are different, it will notify the OTA tool, and the OTA process will be considered a failure and terminated.

Image Skip and Copy

As mentioned above, to avoid image mismatches and omissions, packing whole images is mandatory. To improve upgrade efficiency, some mechanisms are designed to avoid unnecessary image transmission. At the beginning of the OTA process, the OTA tool will query the versions and checksums of all the images (including both banks) of the SoC.

Image Skip

The tool will compare each image version and SHA256 with the SoC’s inactive bank image. If both the version and SHA256 value are the same, the tool will regard the image as already existing in the inactive bank. The tool will then send a command to validate this image directly, and the SoC will check the validation and integrity of the image in the inactive bank.

If validation is successful, this image will be skipped.
If validation fails, some images can proceed to the image copy flow.

Image Copy

For some address-independent images, such as the DSP SYS Image, DSP APP Image, DSP Config Image, App Config File, and ANC Config File, the image copy mechanism may also enhance OTA efficiency. The tool compares the version and SHA256 of the address-independent images with those of the active bank images. If both the version and SHA256 value match, the tool will send a copy image command to the SoC. The SoC then copies the image from the active bank to the inactive bank and validates it. If the copy and validation are successful, this image can also be skipped. If both the image skip and image copy methods fail, the tool will proceed with the normal image data push transfer flow.

Reset and Version Re-check

Once all the images are pushed, copied, or skipped, the OTA tool will trigger an SoC reset. SoC will reboot to select the new active bank and activate the upgraded images. OTA tool will attempt to reconnect to the SoC and query the versions of all the images in the currently active bank to verify that the OTA has taken effect.

OTA via GATT

An overview of the GATT profile is provided in GATT Profile Server.

GATT OTA Service Introduction

OTA attribute table is a C array defined in ota_service.c, which is used to declare two OTA-related services: OTA Service and DFU Service.

static const T_ATTRIB_APPL gatt_extended_service_table[] = {...};

OTA Service

OTA service is used to acquire device information or enter OTA Mode. Service UUID used in OTA Demo is defined in the following table.

Service Name	Service UUID
OTA Service	0x12, 0xA2, 0x4D, 0x2E, 0xFE, 0x14, 0x48, 0x8e, 0x93, 0xD2, 0x17, 0x3C, 0xFF, 0xD0, 0x00, 0x00

The characteristics are shown in the following table.

Characteristic Name	Requirement	Characteristic UUID	Properties
Enter OTA Mode	M	0xFFD1	WriteWithoutResponse
BD Address	M	0xFFD2	Read
Device Information	M	0xFFF1	Read
Image Version	M	0xFFE0 ~ 0XFFEF	Read
Protocol Type	M	0xFFE3	Read
Image Section Size	M	0xFFF4~FFF6	Read

DFU Service

DFU service is used to do the updating process. Service UUID used in OTA Demo is defined in the following table.

Service Name	Service UUID
DFU Service	0x12, 0xA2, 0x4D, 0x2E, 0xFE, 0x14, 0x48, 0x8e, 0x93, 0xD2, 0x17, 0x3C, 0x87, 0x62, 0x00, 0x00

The characteristics are shown in the following table.

Characteristic Name	Requirement	Characteristic UUID	Properties
DFU Data	M	0x8763	WriteWithoutResponse
DFU Control Point	M	0x8764	Write, Notify

The opcode is from controller to target and the notification is from target to controller. All opcodes and notifications are shown in the following table.

OPCODE	OPCODE NAME	Notification	Description
0x01	DFU_OPCODE_START_DFU	0x01	Start OTA and transfer header
0x02	DFU_OPCODE_RECEIVE_FW_IMAGE_INFO	0x02	Receive image info
0x03	DFU_OPCODE_VALID_FW	0x03	Valid the received image
0x04	DFU_OPCODE_ACTIVE_IMAGE_RESET	0x04	Reset to active new image
0x05	DFU_OPCODE_SYSTEM_RESET	0x05	Stop OTA flow and reset parameters
0x06	DFU_OPCODE_REPORT_TARGET_INFO	0x06	Get image info of target
0x07	DFU_OPCODE_CONN_PARA_TO_UPDATE_REQ	0x07	Connection parameter update
0x09	DFU_OPCODE_BUFFER_CHECK_EN	0x09	Enable buffer check
0x0A	DFU_OPCODE_REPORT_BUFFER_CRC	0x0A	Transfer CRC value and start check
0x0C	DFU_OPCODE_COPY_IMG	0x0C	Copy image from active bank to inactive bank
0x0D	DFU_OPCODE_GET_IMAGE_VER	0x0D	Get inactive bank image version
0x0E	DFU_OPCODE_GET_SECTION_SIZE	0x0E	Get layout size of image in active bank
0x0F	DFU_OPCODE_CHECK_SHA256	0x0F	Check the field of SHA256
0x10	DFU_OPCODE_GET_RELEASE_VER	0x10	Get the release version of APP Config File

Detailed OTA via GATT Flow

The detailed flow via GATT is shown in the following chart.

OTA via SPP

An overview of the SPP profile is provided in SPP.

SPP OTA CMD and EVENT Introduction

The CMD is from controller to target and the event is from target to controller. All OTA CMD and EVENT are shown in the following Table.

CMD NAME	CMD ID	EVENT NAME	EVENT ID	Description
CMD_OTA_DEV_INFO	0x0600	EVENT_OTA_DEV_INFO	0x0600	Get device info of target
CMD_OTA_ACTIVE_BANK_VER	0x0601	EVENT_OTA_GET_IMG_VER	0x0601	Get image version of target
CMD_OTA_START	0x0602	EVENT_OTA_START	0x0602	Start OTA and transfer header
CMD_OTA_PACKET	0x0603	EVENT_OTA_PACKET	0x0603	Transfer data packet
CMD_OTA_VALID	0x0604	EVENT_OTA_VALID	0x0604	Valid the received image
CMD_OTA_RESET	0x0605	NONE	NONE	Stop OTA flow and reset parameters
CMD_OTA_ACTIVE_RESET	0x0606	EVENT_OTA_ACTIVE_ACK	0x060B	Reset to active new image
CMD_OTA_BUFFER_CHECK_ENABLE	0x0607	EVENT_OTA_BUFFER_CHECK_ENABLE	0x0605	Enable buffer check
CMD_OTA_BUFFER_CHECK	0x0608	EVENT_OTA_BUFFER_CHECK	0x0606	Transfer CRC value and start check
CMD_OTA_IMG_INFO	0x0609	EVENT_OTA_IMG_INFO	0x0607	Get image info of target
CMD_OTA_SECTION_SIZE	0x060A	EVENT_OTA_SECTION_SIZE	0x0608	Get layout size of image in active bank
CMD_OTA_DEV_EXTRA_INFO	0x060B	EVENT_OTA_DEV_EXTRA_INFO	0x0609	Get extra info of target
CMD_OTA_PROTOCOL_TYPE	0x060C	EVENT_OTA_PROTOCOL_TYPE	0x060A	Get protocol type
CMD_OTA_GET_RELEASE_VER	0x060D	EVENT_OTA_GET_RELEASE_VER	0x060C	Get the release version of APP Config File
CMD_OTA_INACTIVE_BANK_VER	0x060E	EVENT_OTA_INACTIVE_BANK_VER	0x060D	Get inactive bank image version
CMD_OTA_COPY_IMG	0x060F	EVENT_OTA_COPY_IMG	0x060E	Copy image from active bank to inactive bank
CMD_OTA_CHECK_SHA256	0x0610	EVENT_OTA_CHECK_SHA256	0x060F	Check the field of SHA256

Detailed OTA via SPP Flow

The detailed flow via SPP is shown in the following chart.

Code Overview

The OTA code overview will be introduced according to the following parts:

The OTA code directory will be introduced in the chapter Source Code Directory.
The OTA source code overview will be introduced in the chapter Source Code Overview.

Source Code Directory

This section describes the OTA directory.

OTA via GATT Source Code Directory

The reference files directory is as follows:

app_ota.c: sdk\src\sample\ota_demo.
app_ota.h: sdk\src\sample\ota_demo.
ota_service.c: sdk\src\sample\common\app_ble_service.
ota_service.h: sdk\src\sample\common\app_ble_service.

OTA via SPP Source Code Directory

The reference files directory is as follows:

app_ota.c: sdk\src\sample\ota_demo.
app_ota.h: sdk\src\sample\ota_demo.

Source Code Overview

This section provides a description of certain portions of the source code used in the OTA.

OTA via GATT Source Code Overview

Register OTA service in the initialization process and increase the server number of server_init().

void app_ble_service_init(void)
{
    ...
    server_init(...);
    ota_add_service(audio_app_ota_srv_cb);
    ...
}

Re-generate 128-bit UUID of OTA service by generator tool, and fill it to GATT_UUID_OTA_SERVICE[16]. Also, update the UUID at iOS/Android Controller.

static const uint8_t GATT_UUID_OTA_SERVICE[16] = {...};

Process can be added to the callback function.

static T_APP_RESULT audio_app_ota_srv_cb(T_SERVER_ID service_id, void *p_data)
{
    ...
}

The OTA attribute table defined in ota_service.c is used to declare the two OTA-related services, you can add services and characteristics here.

static const T_ATTRIB_APPL gatt_extended_service_table[] = {...};

If you add a new service or characteristic to the attribute table, you can handle it in the following two functions.

static T_APP_RESULT ota_service_attr_write_cb(uint8_t conn_id, T_SERVER_ID service_id,
                                              uint16_t attr_index, T_WRITE_TYPE write_type, uint16_t length,
                                              uint8_t *p_value, P_FUN_WRITE_IND_POST_PROC *p_write_ind_post_proc)

static T_APP_RESULT ota_service_attr_read_cb(uint8_t conn_id, T_SERVER_ID service_id,
                                             uint16_t attr_index,
                                             uint16_t offset, uint16_t *p_length, uint8_t **pp_value)

New control point handle can be added to this function.

T_APP_RESULT app_ota_ble_handle_cp_req(uint8_t conn_id, uint16_t length, uint8_t *p_value)
{
    ...
}

OTA via SPP Source Code Overview

SPP OTA command and event ID can be added to the ID Tables.

typedef enum
{
    ...
    EVENT_OTA_DEV_INFO = 0x0600,
    EVENT_OTA_GET_IMG_VER,
    EVENT_OTA_START,
    EVENT_OTA_PACKET,
    EVENT_OTA_VALID,
    EVENT_OTA_BUFFER_CHECK_ENABLE,
    EVENT_OTA_BUFFER_CHECK,
    EVENT_OTA_IMG_INFO,
    ...
}

typedef enum
{
    ...
    CMD_OTA_DEV_INFO = 0x0600,
    CMD_OTA_GET_IMG_VER,
    CMD_OTA_START,
    CMD_OTA_PACKET,
    CMD_OTA_VALID,
    CMD_OTA_RESET,
    CMD_OTA_ACTIVE_RESET,
    CMD_OTA_BUFFER_CHECK_ENABLE,
    CMD_OTA_BUFFER_CHECK,
    CMD_OTA_IMG_INFO,
    ...
}

SPP command handle function app_ota_cmd_handle() is added to the SPP Data Entrance.

void app_cmd_handler(uint8_t *cmd_ptr, uint16_t cmd_len, uint8_t cmd_path, uint8_t rx_seqn,
                     uint8_t app_idx)
{
    switch (cmd_id)
    {
        ...
    case CMD_OTA_DEV_INFO :
    case CMD_OTA_ACTIVE_BANK_VER:
    case CMD_OTA_START:
    case CMD_OTA_PACKET:
    case CMD_OTA_VALID:
    case CMD_OTA_RESET:
    case CMD_OTA_ACTIVE_RESET:
    case CMD_OTA_BUFFER_CHECK_ENABLE:
    case CMD_OTA_BUFFER_CHECK:
    case CMD_OTA_IMG_INFO:
        {
            app_ota_cmd_handle(cmd_len, cmd_ptr, app_idx);
        }
        break;
        ...
    }
}

SPP ack handle function app_ota_cmd_ack_handle() is added to the SPP Data Entrance.

void app_cmd_handler(uint8_t *cmd_ptr, uint16_t cmd_len, uint8_t cmd_path, uint8_t rx_seqn,
                     uint8_t app_idx)
{
    ...
    switch (cmd_id)
    {
    case CMD_ACK:
        {
            ...
            if (cmd_path == CMD_PATH_UART)
            {
               ...
            }
            else if ((cmd_path == CMD_PATH_LE) || (cmd_path == CMD_PATH_SPP))
            {
                ...
                if (event_id == EVENT_OTA_ACTIVE_ACK)
                {
                   app_ota_cmd_ack_handle(event_id, status);
                }
                ...
            }
        }
        break;
    ...
    }
    ...
}

New SPP command handle can be added to this Function.

void app_ota_cmd_handle(uint16_t length, uint8_t *p_value, uint8_t app_idx)
{
    ...
    switch (cmd_id)
    {
       ...
    }
}

Experimental Verification

After programming the application bin to the EVB board, testing can be done with a mobile phone.

Prepare the Image to Update

The OTA header generate tool and image pack tool are all integrated into the MPPG Tool.

Generate OTA Header

Load flash_map.ini (e.g. RTL87x3E-SDK-VX.X.X.X\bin\flash_map_config\flash_4M\flash_map.ini) and RSA key (e.g. RTL87x3E-SDK-VX.X.X.X\tool\Gadgets\default_rsa_key.pem). Select bank0 or bank1 and fill in the version manually to generate the OTA header bin.

Pack Whole Images

Load flash_map.ini (e.g. RTL87x3E-SDK-VX.X.X.X\bin\flash_map_config\flash_4M\flash_map.ini), then select bank0 and bank1 to add files for packing the whole images in both banks (except System Config File and Boot Patch File).

Note

Please refer to MPPG Tool Chain User Guide in the tool/MPPG Tool directory for details.

iOS Tool User Guide

Both Audio Connect and OTA tool can perform OTA procedures on iOS phones.

iOS Audio Connect Tool User Guide

Enable LE advertising on the LE page in MCUConfig Tool.

Connect with the target device. The device information including the image version will be shown in the UI.

Select firmware and the firmware version will be shown below.

Start updating process.

iOS OTA Tool User Guide

Connect with the target device. The device information including the image version will be shown in the UI.
Enable LE advertising on the LE page in MCUConfig Tool.

Select firmware and the firmware version will be shown below.

Start updating process.

Android Tool User Guide

Both Audio Connect and OTA tool can perform OTA procedures on android phones.

Android Audio Connect User Guide

Let the device support the SPP profile and enter pairable mode.
Connect with the target device. The device information, including the image version, will be shown in the UI.

Select firmware and the firmware version will be shown below.

Start the updating process.

Android OTA Tool User Guide

Let the device support the SPP profile and enter pairable mode.
Connect with the target device. The device information, including the image version, will be shown in the UI.

Select firmware and the firmware version will be shown below.

Start updating process.
