SPI Master EEPROM and RX Only

This document introduces two SPI communication samples. The sample1 demonstrates how SPI receives data in EEPROM mode. The sample2 demonstrates how SPI receives data in receive-only mode. In both examples, SPI is configured as a master and operates in DMA mode. The chip reads data from the SPI slave.

Requirements

For hardware requirements, please refer to the Requirements.

Wiring

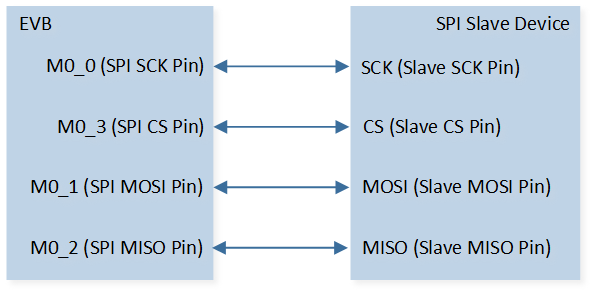

Connect P0_0 (master SCK) to SCK of SPI slave device, connect P0_1 (master MOSI) to MOSI of SPI slave device, connect P0_2 (master MISO) to MISO of SPI slave device, and connect P0_3 (master CS) to CS of SPI slave device. The hardware connection of SPI sample code is shown in the figure below.

../../../_images/SPI_Demo_3_1_Hardware_Connection_Diagram.png — SPI Sample Code Hardware Connection Diagram

Configurations

The following macros can be configured to modify pin definitions.
- #define PIN_SPI_SCK P0_0
- #define PIN_SPI_MOSI P0_1
- #define PIN_SPI_MISO P0_2
- #define PIN_SPI_CS P0_3
The entry function are as follows, call this function in main() to run this sample code. For more details, please refer to the Initialization.

For sample 1, use the following entry function:
```
spi_master_eeprom_mode_demo();
```
For sample 2, use the following entry function:
```
spi_master_rx_only_mode_demo();
```

Building and Downloading

For building and downloading, please refer to the Building and Downloading.

Experimental Verification

Sample 1 Verification

Press the Reset button on the EVB, the 3 bytes data in the array send_buf is sent to SPI TX FIFO.
SPI will send 3 TX data frames in TX FIFO first. SPI does not read the data on MISO to RX FIFO when SPI sends these three data frames.
After the 3 bytes data have been sent, SPI would send 0x0 at MOSI and start reading the data to RX FIFO automatically, the data length is 16.

When SPI has read 16 data frames, it enters the GDMA interrupt and prints the received data in Debug Analyzer.

spi_master_rx_dma_handler
spi_master_rx_dma_handler: DMA master read_buf[0] 0x%x
...
spi_master_rx_dma_handler: DMA master read_buf[15] 0x%x

Sample 2 Verification

Press the Reset button on the EVB, the one bytes data in the array send_buf is sent to SPI TX FIFO.
SPI will send dummy data at MOSI automatically and start reading the data to RX FIFO, the dummy data length is 16.

When SPI has read 16 data frames, it enters the GDMA interrupt and prints the received data in Debug Analyzer.

spi_master_rx_dma_handler
spi_master_rx_dma_handler: DMA master read_buf[0] 0x%x
...
spi_master_rx_dma_handler: DMA master read_buf[15] 0x%x

Code Overview

Source Code Directory

For both samples, please refer to the Source Code Directory for the project directory.

Sample 1 source code:

Source code directory: sdk\src\sample\io_demo\spi\eeprom\spi_master_eeprom_mode_demo.c .

Sample 2 source code:

Source code directory: sdk\src\sample\io_demo\spi\receive_only\spi_master_rx_only_mode_demo.c .

RX DMA Initialization Flow

The initialization flow for peripherals can refer to Initialization Flow.

The SPI RX DMA initialization flow requires first initializing the SPI peripheral, followed by RX DMA initialization. The SPI initialization flow can refer to SPI Initialization Flow Chart. The SPI RX DMA initialization flow can refer to SPI RX DMA Initialization Flow Chart.

Call Pad_Config() and Pinmux_Config() to initialize the pin.

static void board_spi_init(void)
{
   Pinmux_Config(PIN_SPI_SCK, SPI_CLK_MASTER);
   Pinmux_Config(PIN_SPI_MOSI, SPI_MO_MASTER);
   Pinmux_Config(PIN_SPI_MISO, SPI_MI_MASTER);
   Pinmux_Config(PIN_SPI_CS, SPI_SS_N_0_MASTER);

   Pad_Config(PIN_SPI_SCK, PAD_PINMUX_MODE, PAD_IS_PWRON, PAD_PULL_NONE, PAD_OUT_DISABLE,
               PAD_OUT_HIGH);
   Pad_Config(PIN_SPI_MOSI, PAD_PINMUX_MODE, PAD_IS_PWRON, PAD_PULL_NONE, PAD_OUT_DISABLE,
               PAD_OUT_HIGH);
   Pad_Config(PIN_SPI_MISO, PAD_PINMUX_MODE, PAD_IS_PWRON, PAD_PULL_NONE, PAD_OUT_DISABLE,
               PAD_OUT_HIGH);
   Pad_Config(PIN_SPI_CS, PAD_PINMUX_MODE, PAD_IS_PWRON, PAD_PULL_NONE, PAD_OUT_DISABLE, PAD_OUT_HIGH);
}

Call RCC_PeriphClockCmd() to enable the SPI clock and function.

Initialize the SPI peripheral:

Define the SPI_InitTypeDef type SPI_InitStructure, and call SPI_StructInit() to pre-fill SPI_InitStructure with default values.
Modify the SPI_InitStructure parameters as needed. The SPI initialization parameter configuration is shown in the table below.
Call SPI_Init() to initialize the SPI peripheral.

SPI Initialization Parameters
SPI Hardware Parameters	Setting in the `SPI_InitStructure`	SPI
Direction	`SPI_InitTypeDef::SPI_Direction`	`SPI_Direction_EEPROM` or `SPI_Direction_RxOnly`
Device Role (SPI Master or SPI Slave)	`SPI_InitTypeDef::SPI_Mode`	`SPI_Mode_Master`
Data Frame Size	`SPI_InitTypeDef::SPI_DataSize`	`SPI_DataSize_8b`
Clock Polarity	`SPI_InitTypeDef::SPI_CPOL`	`SPI_CPOL_High`
Clock Phase	`SPI_InitTypeDef::SPI_CPHA`	`SPI_CPHA_1Edge`
Clock Div	`SPI_InitTypeDef::SPI_BaudRatePrescaler`	100
RX Number of Data Frames	`SPI_InitTypeDef::SPI_NDF`	16
RX Water Level	`SPI_InitTypeDef::SPI_RxWaterlevel`	1

Call SPI_Cmd() to enable SPI.
Call RCC_PeriphClockCmd() to enable the GDMA clock and function.
Call GDMA_channel_request to request a free GDMA channel and register the GDMA interrupt handler.

Initialize the GDMA peripheral:

Define the GDMA_InitTypeDef type GDMA_InitStruct, and call GDMA_StructInit() to pre-fill GDMA_InitStruct with default values.
Modify the GDMA_InitStruct parameters as needed. The GDMA initialization parameter configuration is shown in the table below.
Call GDMA_Init() to initialize the GDMA peripheral.

GDMA Initialization Parameters
GDMA Hardware Parameters	Setting in the `GDMA_InitStruct`	GDMA
Channel Num	`GDMA_InitTypeDef::GDMA_ChannelNum`	`SPI_MASTER_RX_DMA_CHANNEL_NUM`
Transfer Direction	`GDMA_InitTypeDef::GDMA_DIR`	`GDMA_DIR_PeripheralToMemory`
Buffer Size	`GDMA_InitTypeDef::GDMA_BufferSize`	`TEST_SIZE`
Source Address Increment or Decrement	`GDMA_InitTypeDef::GDMA_SourceInc`	`DMA_SourceInc_Fix`
Destination Address Increment or Decrement	`GDMA_InitTypeDef::GDMA_DestinationInc`	`DMA_DestinationInc_Inc`
Source Data Size	`GDMA_InitTypeDef::GDMA_SourceDataSize`	`GDMA_DataSize_Byte`
Destination Data Size	`GDMA_InitTypeDef::GDMA_DestinationDataSize`	`GDMA_DataSize_Byte`
Source Burst Transaction Length	`GDMA_InitTypeDef::GDMA_SourceMsize`	`GDMA_Msize_1`
Destination Burst Transaction Length	`GDMA_InitTypeDef::GDMA_DestinationMsize`	`GDMA_Msize_1`
Source Address	`GDMA_InitTypeDef::GDMA_SourceAddr`	`SPI1->DR`
Destination Address	`GDMA_InitTypeDef::GDMA_DestinationAddr`	`read_buf`
Source Handshake	`GDMA_InitTypeDef::GDMA_SourceHandshake`	`GDMA_Handshake_SPI1_RX`

Call GDMA_INTConfig() to enable GDMA transfer complete interrupt GDMA_INT_Transfer.
Call NVIC_Init() to enable NVIC of GDMA.

Functional Implementation

Master Receive Data by DMA

Call SPI_SetReadLen() to config the length of data which want to read.
Call SPI_GDMACmd() to disable and then enable SPI GDMA RX Function.
Call GDMA_Cmd() to enable DMA transfers.
Call SPI_SendBuffer() to send the data in send_buf to TX FIFO, then SPI would send dummy data at MOSI and start reading the data to RX FIFO automatically.
When GDMA transfer is completed, transfer complete interrupt is triggered. Then call GDMA_ClearINTPendingBit() to clear GDMA_INT_Transfer interrupt.
